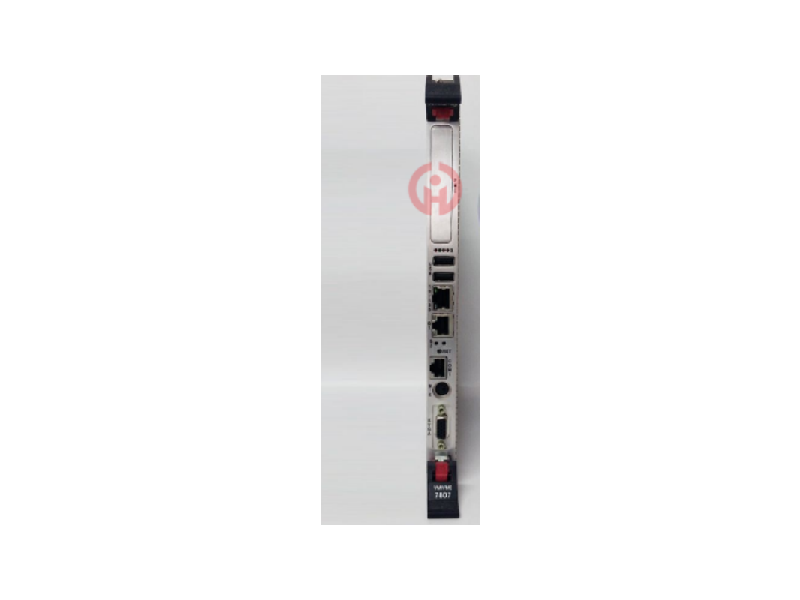

GE VMIVME-7807RC | VME Embedded CPU Board
The GE VMIVME-7807RC is a high-performance VME embedded CPU board designed to perform a variety of complex computing tasks. This single-board computer is equipped with a variety of specifications of Intel Pentium M processors up to 1.8GHz and equipped with up to 1.5GB of DDR SDRAM memory, ensuring excellent data processing capabilities and high-bandwidth operations.
Product Introduction
GE VMIVME-7807RC | VME Embedded CPU Board. The GE VMIVME-7807RC is a high-performance single board computer (SBC) designed for I/O intensive applications. It integrates an Intel Pentium M processor, supports up to 1.5 GB DDR SDRAM, has a PCI-X slot, and runs at up to 1.8 GHz.
Key features of the GE VMIVME-7807RC include:
66 MHz PMC expansion slot.
Dual Gigabit Ethernet controllers (Intel 82546GB).
Operating systems supporting Windows XP, Windows 2000, and various Linux distributions such as VxWorks, Solaris, QNX, LynxOS, and Linux.
BIOS with reprogrammable flash options for system and video BIOS.
The VMIVME-7807RC VME embedded CPU board is a high-performance single-board computer (SBC) that integrates an Intel Pentium M processor and supports up to 1.5 GB of DDR SDRAM, PCI-X, 66 MHz PMC expansion slots, and dual Gigabit Ethernet. It runs at speeds up to 1.8 GHz and is suitable for I/O intensive applications. Designed to interface with a wide range of external devices, the board provides system designers with the flexibility to cost-effectively address a wide range of I/O requirements. It supports remote Ethernet boot and VITA 31.1.
Features of this single-board computer include:
Powerful processor: Pre-installed 1.1GHz, 1.4GHz, or 1.8GHz Pentium M processors provide excellent computing power and multitasking capabilities.
Cache: Up to 2 MB of L2 cache helps reduce latency when the processor accesses main memory, further improving overall performance.
Flexible memory configuration: DDR synchronous SDRAM can be used as system memory, up to 1.5 GB. 200-pin DDR SDRAM SODIMM and optional soldering
Also supports 512 MB onboard memory, providing users with flexible memory configuration options.
High-speed network connection: Integrated dual Gigabit Ethernet interfaces provide high-speed, reliable network connections for applications such as data
transmission and remote monitoring.
Processor specifications
Processor type: Intel Pentium M
Maximum frequency: 1.8GHz
Cache size: can accommodate up to 2MB L2 cache
Memory specifications
Memory type: DDR SDRAM
Maximum capacity: 1.5GB
Technical features and interfaces
The VMIVME-7807RC not only provides powerful processing power, but also has rich interface options for connecting to various devices. Specifically including:
Dual Gigabit Ethernet: supports high-speed data transmission
Multiple interfaces: including serial ports, USB2.0 ports, serial ATA, IDE and optional CompactFlash memory cards
Rich storage options: supports up to 2GB of bootable CompactFlash, providing users with ample storage space for operating systems, applications and data.
In addition, the VMIVME-7807RC VME embedded CPU board also adopts the VMEbus architecture, which can be used with other VMEbus-based devices, providing powerful scalability and flexibility for industrial control systems. Due to its excellent performance and flexibility, the VMIVME-7807RC is widely used in many fields, including but not limited to: Industrial Automation Network Communication Server Engineering Computing Aerospace and Defense Medical Devices Transportation Systems
