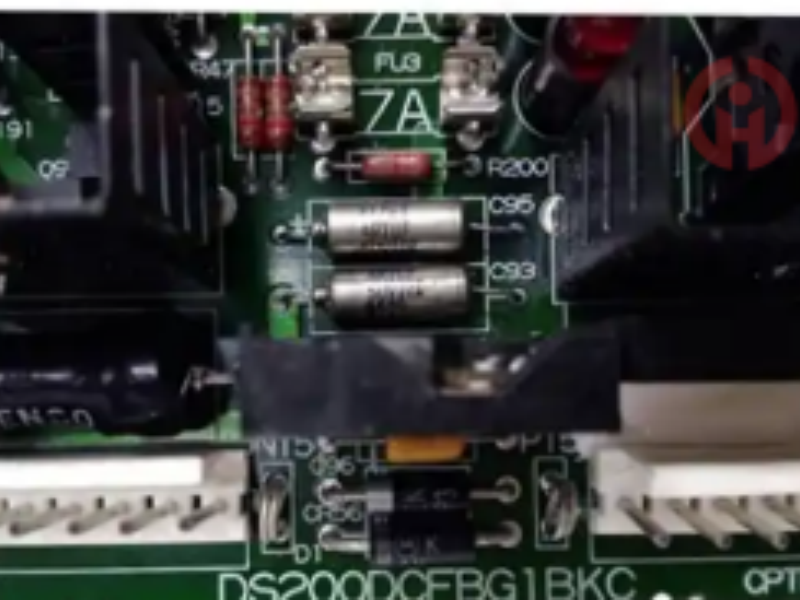

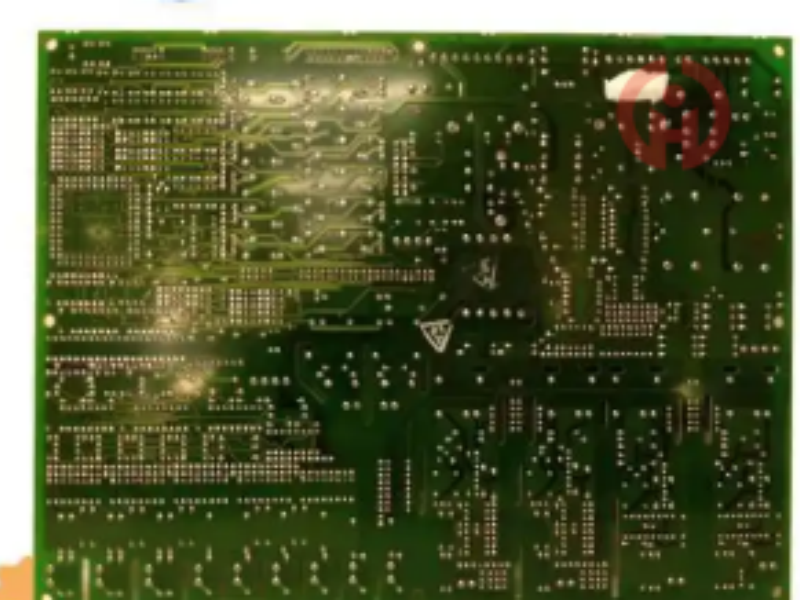

GE DS200DCFBG1BKC | Mark V Series power supply board
The GE DS200DCFBG1BKC is a power board belonging to the Mark V series, designed for GE's drive systems. Its main function is to provide power for the chassis fans and the control level power of the system. This power board is compatible with a variety of series drives, including the DC2000, AC2000, FC2000, CB2000 and ME2000 series.
Product Introduction
About the DS200DCFBG1BKC
The General Electric DS200DCFBG1BKC is a Mark V series power board. When installed in a drive, this board provides power to the cabinet fans as well as the control stage power supply for the system. In GE's drive systems, this board is compatible with the DC2000, AC2000, FC2000, CB2000, and ME2000 series drives. The Mark V Turbine Control Systems series to which this DS200DCFBG1BKC power board belongs has specific applications in control and management systems for compatible steam, gas, and wind turbine automated drive components and is considered a legacy series for General Electric as it was discontinued many years after its initial release. This Mark V series of DS200DCFBG1BKC printed circuit boards, or PCBs for short, is also considered one of the last GE product lines to utilize the company's patented Speedtronic control system technology. This DS200DCFBG1BKC PCB, while it may be defined as a power board in its own right, is not the product originally developed with this functionality in the Mark V; this would be the DS200DCFBG1 parent power board, lacking all three significant product revisions of this DS200DCFBG1BKC product.
Hardware Tips and Specifications
Like any product in the Mark V series, this DS200DCFBG1BKC printed circuit board is differentiated from the different Mark V series PCBs by the insertion of various hardware components and component specifications that introduce functionality into its regular Mark V series assembly. The DS200DCFBG1BKC board is rated to source inputs that can safely measure between 38 and 115VAC. The output frequency produced by the card can measure anywhere between 0 and 500 kHz, depending on the input voltage. There are five separate circuits on the DS200DCFBG1BKC. These include the control stage power circuit, the driver circuit, the motor field power circuit, and the AC and DC monitoring circuits. Diagnostic information for fuses on the drive is presented to the user via two LED indicators and a neon indicator. Three protective fuses are integrated on the board to protect against current interruption. Checking voltage levels on the board is simple using one of five test points on the card. The user is provided with a variety of configurable settings to suit specific operating needs. The 12 jumpers and 7 DIP switches on the board can be configured to meet user requirements.
The board and drive contain installation parameters outlined by General Electric that should be followed. These guidelines will protect the entire unit from any accidental damage. Please refer to the datasheet and manual of the device for complete guidelines on wiring and installation of the board. In general, it is important to remove all power to the DS200DCFBG1BKC printed circuit board and its Mark V Turbine Control System Series Automatic Drive components before attempting to install or replace the DS200DCFBG1BKC board. Given that potentially lethal surface voltages may be present on the basic circuit board of this DS200DCFBG1BKC product, and that such voltages may be present even after the Mark V Series drive has been powered off for several minutes, it is important to recognize this specific installation parameter. Before making any final purchasing decisions, it is important to consider the complete revision history of this DS200DCFBG1BKC power board, which includes B-level functional product revisions, K-level sub-functional product revisions, and C-level artwork configuration product revisions. All of these revisions may significantly change the performance specifications and basic dimensions of this DS200DCFBG1BKC product as originally introduced. Members of the Mark V Series are technically supported by their original manufacturer, General Electric. AX Control's experienced and knowledgeable sales team is happy to help you with all of your automation needs. For pricing and availability of the DS200DCFBG1BKC and other parts and repairs, please contact our staff by email or phone.
Frequently Asked Questions About the DS200DCFBG1BKC
Where can I find information about application data for the DS200DCFBG1BKC?
There is a chapter in the DS200DCFBG1BKC manual, manual GEI-100028, regarding application data. This chapter in the DS200DCFBG1BKC manual contains information on the DS200DCFBG1BKC hardware, configurable jumpers and DIP switches, LEDs and neon indicators on the DS200DCFBG1BKC, DS200DCFBG1BKC connectors, DS200DCFBG1BKC identification, warranty terms for the DS200DCFBG1BKC, procedures for replacing a DS200DCFBG1BKC board, and EE parameter adjustments for the DS200DCFBG1BKC. For a copy of this manual, the GE Industrial Control Systems Power Board Manual, request manual GEI-100028.
What are the control stage power supply voltages on the DS200DCFBG1BKC?
The control stage power circuits on the DS200DCFBG1BKC operate at +5, +/-15, and +/-24 VDC.
How are the power outputs of the DS200DCFBG1BKC protected?
The power outlets on the DS200DCFBG1BKC are protected by short-circuit fuses F2 and FU3.
Which manual should I use with the DS200DCFBG1BKC?
The manual used with the DS200DCFBG1BKC is manual GEI-100028 - GE Industrial Control Systems Power Board Manual. This manual is specific to the DS200DCFBG1BKC and provides specific information on the installation, operation, and maintenance of the DS200DCFBG1BKC, but GE states that all aspects of the installation, operation, and maintenance of the DS200DCFBG1BKC are not included in the manual and that you should contact a specialist at GE Industrial Systems or AX Control for more installation, operation, and maintenance information on the DS200DCFBG1BKC.
