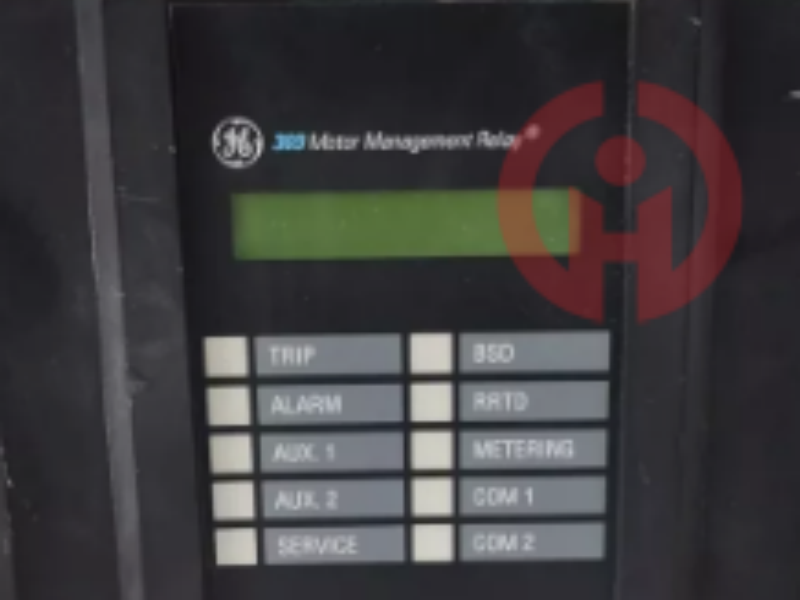

369-HI-R-M-0-0-H-E GE Multilin | Motor Management Relay

The GE Multilin 369-HI-R-M-0-0-H-E is a motor management relay manufactured by GE Multilin. This relay is mainly used for the protection and management of 3-phase motors. It has a variety of functions and features and is suitable for a variety of industrial applications.

Category:
G GE
Share

Related products




Product Introduction

About the 369-HI-RM-0-0-HE
The 369-HI-RM-0-0-HE from General Electric Multilin is a motor protection and management relay designed to protect medium-sized motors and their accompanying components. The motor is able to "learn" and adapt to the needs of each motor, more specifically configuring the system it is a part of.

The relay can monitor and log total accumulated megawatt hours, motor trip category, total number of motor trips, number of motor starts, and total run hours. In addition to being a useful source of general information, this data can also help diagnose motor faults and plan future maintenance.

The 369-HI-RM-0-0-HE provides users with a variety of inputs and outputs to meet their motor management needs. The speed switch input allows the use of an external speed device, which can easily distinguish between normal starts and locked rotor conditions and shut down the relay when conditions are unfavorable. Other inputs include waveform capture and a digital counter.

This particular model includes enhanced diagnostics and panel options as well as conformal coating. The enhanced panel design is more compact and included in the diagnostics option. Conformal coating is a thin polymer film that protects the relay from varying temperatures, corrosive materials, dust, and humidity.

The HI-RM-0-0-HE weighs approximately 10 pounds and is housed in a DEMO metal carrying case that provides some protection from the operating environment factors. The housing is flame-retardant and corrosion-resistant and should be installed away from strong magnetic fields or high-current conductors that may damage the relay over time.

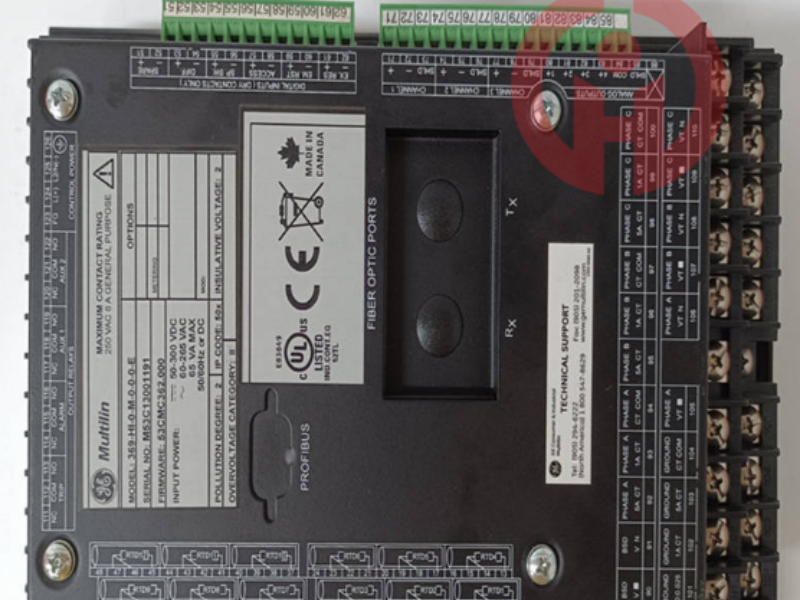

369-HI-R-M-0-0-H-E GE Non-isolated RS232 port, RS485 port

Control Power Input Range 110 to 250 VDC, 100 to 240 VAC, 50/60 Hz Differential Switching Time Delay < 200 ms Size Approx.: H29.6 cm x W10.7 cm x L20.5 cm Event Recording Triggers Power Fail, Alarm, Self-Test, Inhibit, Trip, Waveform Capture Operating Range -40°C (-40°F) to +60°C (140°F) Storage Range -40°C (-40°F) to +80°C (176°F)

GE MultiLine's 369-HI-R-M-0-0-H-E is a motor protection and management relay designed to protect medium-sized motors and their appurtenant components. The motor is able to "learn" and adapt to the needs of each individual motor, configuring itself more specifically to suit the system it is assigned to.

The 369 relay can monitor and log total accumulated megawatt hours, various motor trips, total motor trips, number of motor starts, and total run time. In addition to being a useful source of general information, this data can also help diagnose motor faults and plan future maintenance.

The 369-HI-R-M-0-0-H-E provides users with a variety of inputs and outputs to meet their motor management needs. The speed switch input allows the use of an external speed device, which can make normal starts easily distinguishable from locked rotor conditions, shutting off the relay when conditions are unfavorable. Other inputs include waveform capture and a digital counter.

This particular model includes enhanced diagnostics and panel options as well as conformal coating. The enhanced panel design is more compact and is included with the diagnostics option. Conformal coating is a thin polymer film that protects the relay from temperature changes, corrosive substances, dust and humidity.

The 369-HI-R-M-0-0-H-E weighs approximately 10 pounds and is housed in a demonstration metal carrying case that provides some protection from operating environmental factors. The case is flame retardant and corrosion resistant and should be installed away from strong magnetic fields or high current conductors that could damage the relay if installed for extended periods of time.

Frequently Asked Questions About the 369-HI-R-M-0-0-H-E

Can you tell me more about the optional metering package for monitoring three-phase motors in the 369-HI-R-M-0-0-H-E Multi-Line General Electric Digital Motor Management Relay?

The 369-HI-R-M-0-0-H-E and other multi-line relays in the 369 Multi-Line Motor Management Digital Relay family have the potential to come with an optional metering package if specified by the M option in the third position of the part number. This is not available in the 369-HI-R-M-0-0-H-E. This additional metering option provides the base unit with power metering parameters (kW, kvar, kVA, kWh, MWh, kvarh, Mvarh), power factor, and frequency parameters with high accuracy and resolution. The event recording capacity of this energy metering option is the capacity to record the last 512 events. The triggers for this event are power failure, alarm, self-test, waveform capture, and trip events.

What are the analog outputs of Option M included in the GE Multilin 369-HI-R-M-0-0-H-E Multilin General Electric Digital Motor Management Relay?

The 369-HI-R-M-0-0-H-E Multilin General Electric Digital Motor Management Relay has programmable analog outputs and includes the Option M feature. The three possible output ranges are 0-1 mA, 0-20 mA, and 4-20 mA. The maximum loads for these three ranges are 2400, 600, and 600 ohms, respectively.

Could you please provide more details on the optional metering package included in the 369-HI-RM-0-0-HE Multilin GE Digital Motor Management Relay for monitoring three-phase motors?
The 369-HI-RM-0-0-HE and other Multilin relays in the 369 Multilin GE Motor Management Digital Relay series may be equipped with an optional metering package if specified by the M option in the third position of the part number. This is referenced in 369-HI-RM-0-0-HE . This additional metering option provides the base unit with power metering parameters such as kW, kvar, kVA, kWh, MWh, kvarh, Mvarh, power factor and frequency parameters with high accuracy and resolution. The event logging capacity of this power metering option is the capacity to log the last 512 events. The triggers for this event are power failure, alarm, self-test, waveform capture and trip events.
