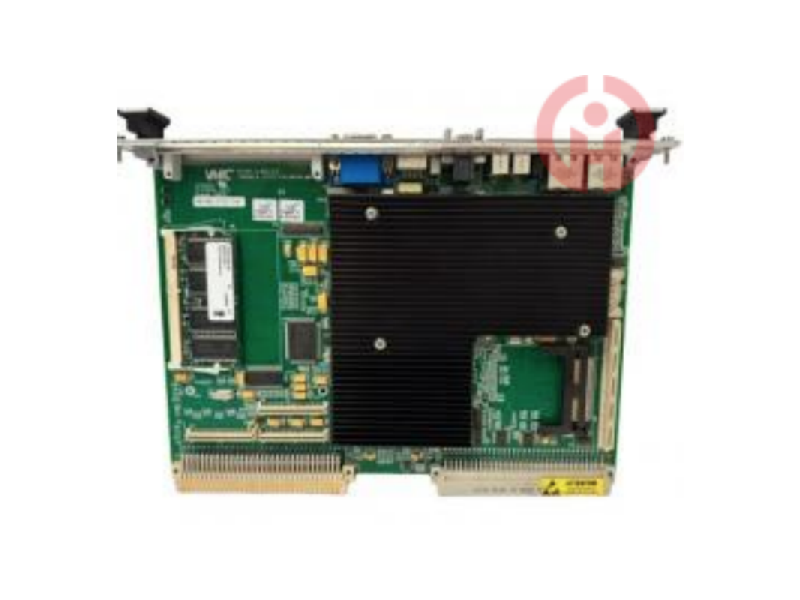

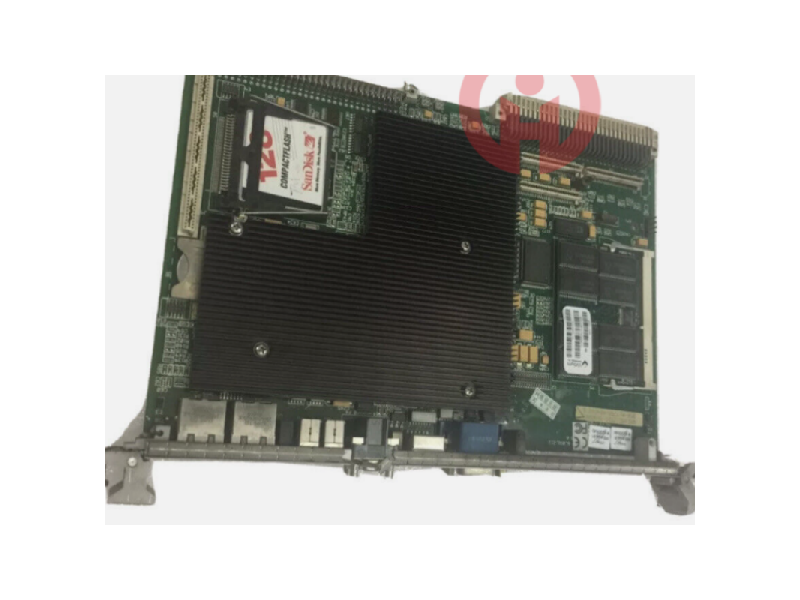

GE VMIVME-7750 CPU Module VMIC
The GE VMIVME - 7750 is a versatile device. It is a full-featured Pentium III compatible computer in a single-slot passively cooled Eurocard form factor, using the advanced technology of the Intel815E chipset with a front-side bus speed of 133MHz. It also complies with VME specification revision C.1, has a transparent PCI to VME bridge, and can act as a system controller or peripheral CPU in a multi-CPU system.
Product Introduction
GE VMIVME -7750 CPU module plays a very important role in the control of automation system. Implementation and application of substation automation test simulation system based on PLC module. GE VMIVME -7750 CPU is a processor-based VME (VMEbus) single-board computer designed for high-performance applications requiring real-time control and monitoring. It is built on the Intel® Pentium® III processor, providing up to 1.26 GHz processing power and 512 Kbyte advanced transmission cache. The system supports up to 512 Mbyte PC133 SDRAM using a single SODIMM and has an internal AGP SVGA controller and 4 Mbyte display cache. It runs on a 133 MHz system bus through an Intel® 815E chipset controller and supports 10BaseT and 100BaseTX Ethernet interfaces and dual Ethernet interfaces for networking.
The VMIVME-7750 supports a wide range of operating systems, including Windows® XP, VxWorks®, Solaris™, QNX®, LynxOS®, and Linux®, providing flexibility for a variety of applications such as real-time factory automation, simulation, instrumentation, control, and process control systems. It also includes comprehensive diagnostics, optional local boot disable, and a dual boot option for selecting network or local boot.
The VME-7750 is a single-slot Pentium III SBC that runs at up to 1.26 GHz and features 512 KB of SDRAM. Other I/O include a PMC expansion site, dual Ethernet, and up to 1 GB of CompactFlash.
It features up to 512MB of PC133 SDR memory, built-in SVGA support, and comes with 4Mbytes of DRAM display buffer.
Built-in dual 10/100Mbit Ethernet, IDE drive support, floppy drive support, two RS232 serial ports, dual USB ports, real-time clock/calendar, front panel reset switch, mini speaker, and keyboard/mouse ports.
Supports I2C bus, has up to 512MB of bootable compact flash memory (optional), and provides four general-purpose programmable timers (two 16-bit and two 32-bit).
It has a software-selectable watchdog timer with reset, 32KB of non-volatile SRAM, and provides a PMC expansion site with front panel access.
Acquisition capability
Supports high-speed data acquisition, has fast sampling rate and high-precision measurement capabilities, can acquire and process multi-channel analog signals in real time, and is suitable for applications requiring high-speed data acquisition and accurate measurement.
Channel characteristics
With multi-channel analog input and output functions, it can simultaneously acquire and generate multiple signal channels. Each channel has an independent ADC (analog-to-digital converter) and DAC (digital-to-analog converter), which can achieve data acquisition and output with high channel count and high sampling rate.
Resolution related
With high-resolution measurement and output capabilities, it can achieve accurate signal acquisition and generation, support 16-bit analog-to-digital conversion and 14-bit digital-to-analog conversion, and can capture and generate subtle signal changes.
Input and output range
Supports configurable input and output ranges. Users can select the appropriate range according to application requirements, suitable for measurement and output of different signal strengths and levels.
Clock and trigger
With high-precision clock and trigger functions, it can achieve synchronous and accurate data acquisition and output, and supports multiple trigger modes and external clock input.
Standard compatibility
Compliant with PXIe (PXI Express) standards, it can be seamlessly integrated with other PXIe devices and systems, and can form a complete test and measurement system with other PXIe modules to achieve efficient data acquisition and generation.
