GE HYDRAN 201Ti | Mark IV | ONE Channel Controller Gas analyzer | HYDRAN201Ti
GE HYDRAN 201Ti Mark IV ONE Channel Controller Gas Analyzer is a device designed for online monitoring of fault gas in transformer oil. This product not only has the characteristics of high efficiency and high reliability, but also can monitor and analyze the gas composition in transformer oil in real time, and discover potential safety hazards in time.
Product Introduction
GE HYDRAN 201Ti | Mark IV | Single Channel Controller Gas Analyzer. It is essential for DGA monitoring of transformers and understanding their health is critical to having a reliable network. When the insulation system of a transformer is overloaded, it produces gas dissolved in the oil. Dissolved Gas Analysis (DGA) in Oil is considered the best indicator of developing faults.
Key features of the GE Hydran H201Ti include:
100% responsive composite gas sensor sensitive to Hydrogen (general fault gas) and Carbon Dioxide (overheated paper).
LCD display and standard RS-485 connection. It supports Modbus or Hydran protocol.
Vacuum pumping membrane and system self-check, self-diagnostic function
Local and remote alarms are set to predetermined levels or rates. Gas readings and trends can be viewed remotely via serial port communication
Easy to install on a single valve. No moving parts, pumps and additional piping are required. No field calibration is required.

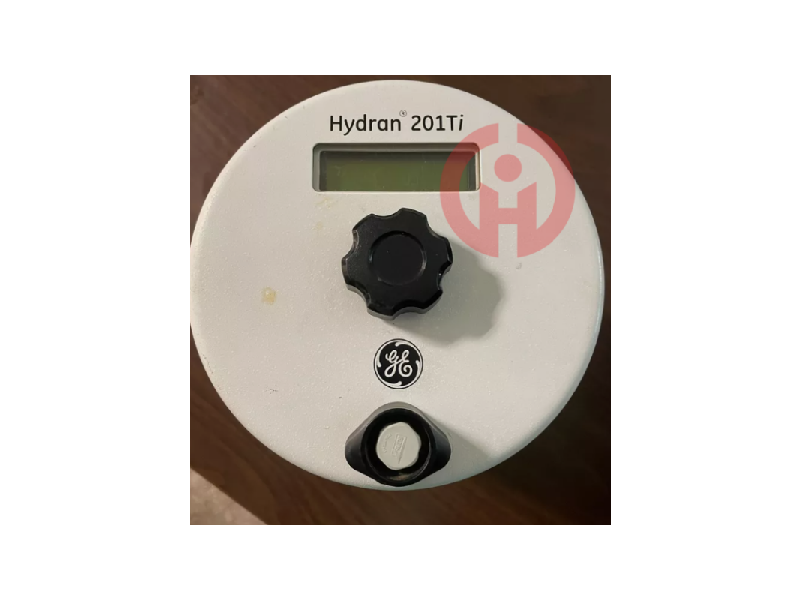

GE HYDRAN H201Ti.jpg
The Hydran™ 201Ti is a small and easy to set up continuous dissolved gas analysis (DGA) monitor. It provides basic information used by IEEE® Standard C57.104 and can be used as an important first line of defense for your unit transformers to get early warning of fault conditions and minimize the risk of unplanned downtime. The 201Ti uses fuel cell technology (described in the standard as a fixed instrument - Method 3) and is now available in two options: the world-renowned "Hydran Composite Gas" sensor, which is 100% responsive to hydrogen and is also sensitive to carbon monoxide, acetylene and ethylene; or the more basic "Hydrogen Only" sensor, which focuses on hydrogen generation. Because the monitor is mounted on a single valve and uses dynamic oil sampling, there is no need for pumps or additional piping to connect to different valves. Due to its simple functionality and easy to understand information, the 201Ti has been one of the preferred monitors for many years and is one of the most installed of all DGA monitors.
The Hydran 201Ti is a small online early warning transmitter. It is permanently mounted on the transformer and will provide personnel with a ppm reading of the combined value of various fault gases to alert them to potential problems.
The values can be downloaded and alarms can be set at pre-determined levels to alert personnel and monitor developing fault conditions.
Hydran 201Ti
Hydran 201Ti
Contact Sales
The Hydran 201Ti is a small online early warning transmitter. It is permanently mounted on the transformer and will provide personnel with a ppm reading of the combined value of various fault gases to alert them to potential problems.
The values can be downloaded and alarms can be set at pre-determined levels to alert personnel and monitor developing fault conditions.
Applications
Small and medium transformers.
Reduce the risk and/or consequences of failure.
Ideal for transmission transformers.
Much better than relying on manual oil sampling.
Benefits
Real time single composite fault gas measurement system.
Local and remote alarms set at pre-defined levels or rates of change.
Remotely view gas readings and trends via serial port communications.
Easy to install on a single valve.
No moving parts, no pumps, no additional piping.
No field calibration required.
Features
Combined gas sensor with 100% response to hydrogen (common fault gas) and sensitive to carbon dioxide (overheated paper).
LCD display.
RS-485 connection as standard.
Modbus or Hydran protocols available.
Vacuum resistant gas extraction membrane.
Full system self-test and self-diagnostics.
Locally logs data and significant events for up to one year.
Hydran 201Ti
The Hydran 201Ti is a small online early warning transmitter. It is permanently mounted on the transformer and will provide personnel with a ppm reading of the combined values of various fault gases to alert them to potential problems.
Hydran 201TiHydran 201Ti
The values can be trended and alarms can be set at predetermined levels to alert personnel and enable monitoring of developing fault conditions.
Now Even Better
The latest Mark IV version completely reworks the Hydran 201Ti monitor with a new circuit board and power supply, making it RoHS compliant, resolving any obsolescence issues and further improving this proven product. It now offers the following additional features:
Improved sensor
Modbus® protocol communications via isolated RS-485
Local USB port replaces RS-232 port no longer available on most field laptops
Compatible with GE’s acclaimed PerceptionTM software to download, trend and analyze data just like any other GE DGA monitoring device
Applications
Simple, cost-effective solution for small to medium-sized transformers
Focus and prioritize asset replacement strategies
Reduce risk of process interruptions due to power failures
Minimize costly production downtime
Benefits
Real-time single compound fault gas measurement system
Local and remote alarms set to predefined levels
Remote viewing of gas readings and trends via serial port
Easy to install on a single valve
No moving parts, pumps and additional piping required
No field calibration required
Download Hydran 201Ti Mark IV Instructions (PDF, 980 KB)
