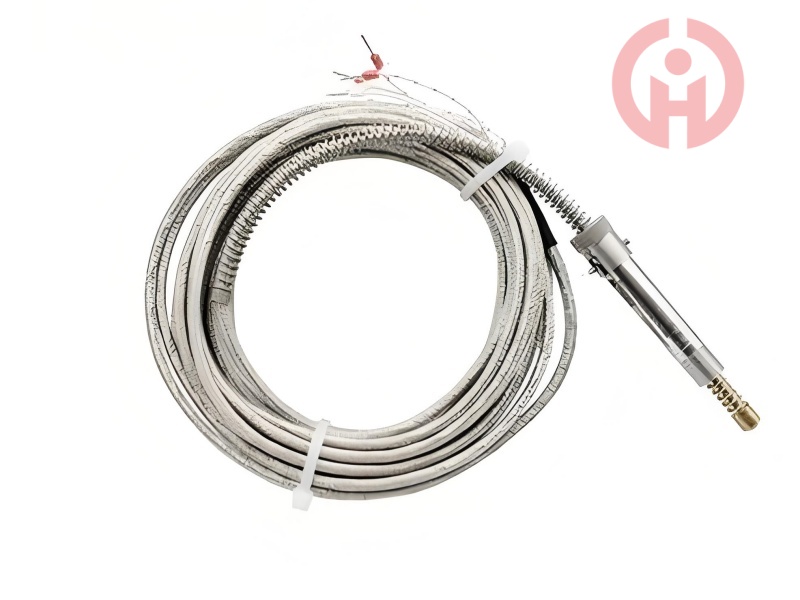

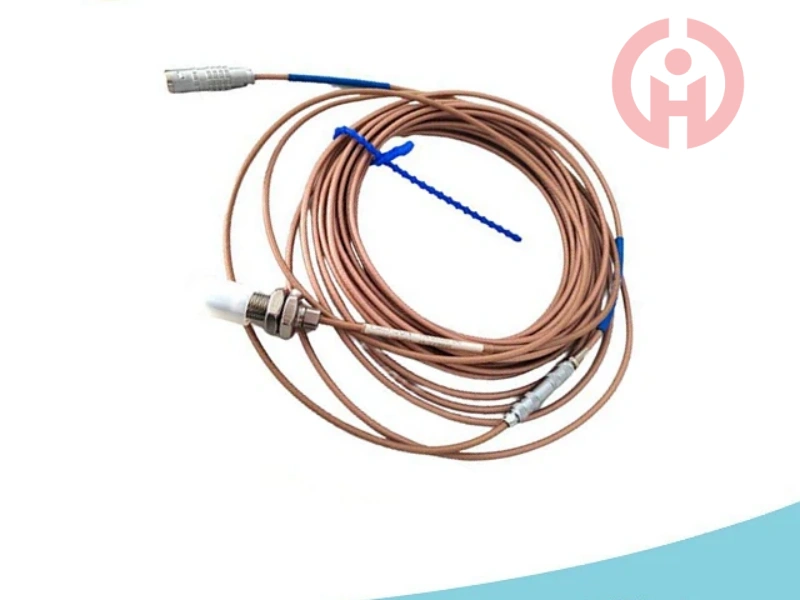

Product Introduction

Product Features
Non contact measurement: avoids direct contact with the measured object, does not interfere with the operation of the measured object, and does not cause wear and tear due to contact. It can perform accurate measurements without affecting the normal operation of the equipment.
High sensitivity and accuracy: able to accurately detect small vibrations and displacement changes of the shaft, providing accurate data support for equipment status monitoring and fault diagnosis.
Strong anti-interference ability: It has good electromagnetic compatibility and can work stably in complex electromagnetic environments, reducing the impact of external interference on measurement results.
Wide working temperature range: It can work normally in an environment ranging from -40 ℃ to+70 ℃.
Multiple installation options: Provide different installation thread forms and lengths, making it convenient for users to choose according to their actual installation space and needs.
Compliant with international standards: Manufacturing and use comply with various international universal standards such as API 670, DIN 45670, and ISO 10817-1.

technical parameter
Range: Static ± 1.0mm; Dynamic 0... 50... 500 μ m
Sensitivity: 8V/mm
Measurement material: conductive steel
Measurement target form: cylindrical shaft, flat surface, measuring ring on machine shaft
Measure the height of the ring on the shaft surface: ≥ 25mm
Axis peripheral speed: 0... 2500m/s
Shaft diameter: ≥ 25mm
Nominal gap: 1.5mm
Measurement error: Linear error ≤ ± 1%; Zero temperature error 200mV/100K; Temperature sensitivity<2%/100K; Long term drift of 0.3%; The impact of maximum power supply voltage<20mV/V
Sensor housing thread: M10x1 or 3/8 "-24-UNF-2A
Cable length: The sensor cable is 1m long and can be extended by 3m
Maximum temperature of cable:+ 200℃

application area
Widely used in various industries such as power, petroleum, chemical, metallurgical, etc., various turbine machinery, fans, compressors, gearboxes, water pumps and other equipment can be used to measure the clearance between rotating and fixed parts, shaft vibration and eccentricity, shaft bending, radial and axial displacement of shafts, wear of bearing shells, thickness of oil film, relative thermal expansion between shafts and bearings, thermal expansion of bearings, valve position, etc
