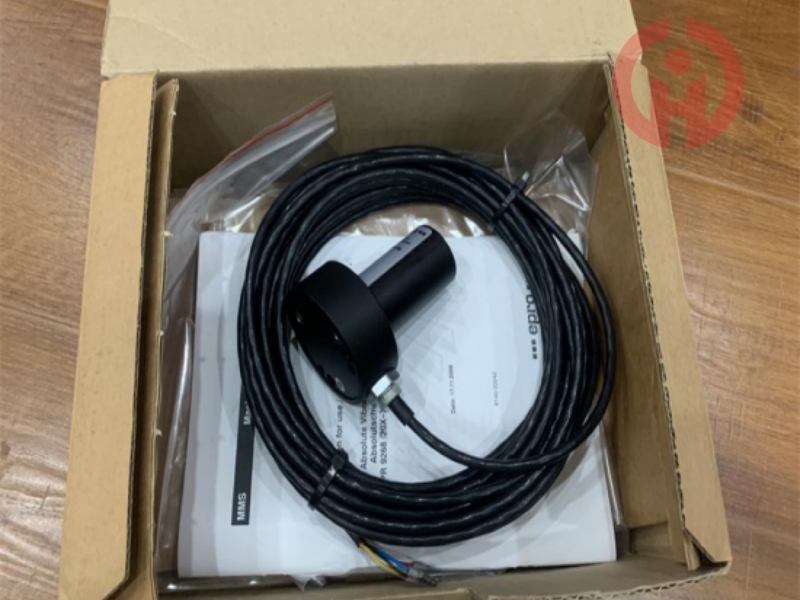

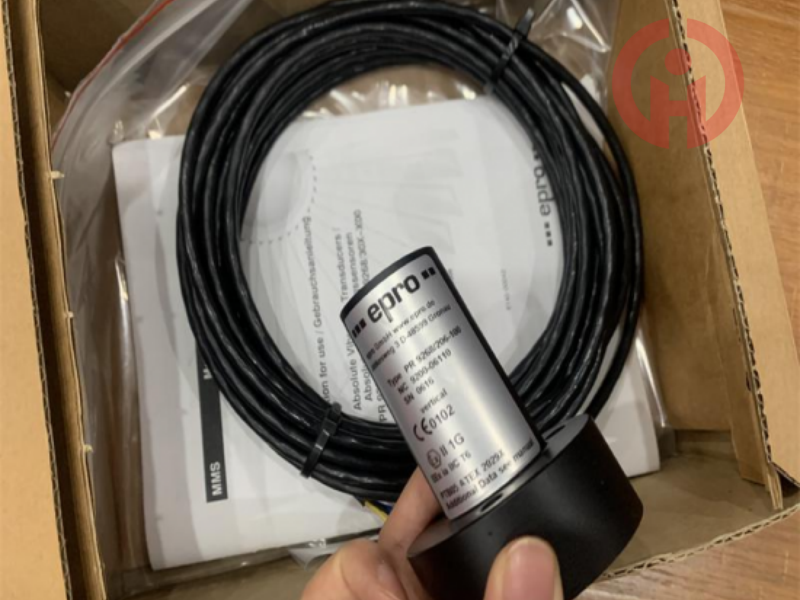

Product Introduction
Product Features
Non contact measurement: It can perform non-contact measurement on the object being measured, avoiding the problems of wear and interference that may arise from contact measurement. It can obtain accurate measurement data without affecting the normal operation of the object being measured.
High sensitivity and high precision: It can accurately detect small displacement changes of the measured object, with high sensitivity and accuracy, and can provide reliable measurement results.
Strong anti-interference ability: It has strong anti-interference performance and can work stably in complex industrial environments, reducing the influence of external factors on measurement results.
Fast response speed: It can quickly track the dynamic changes of the measured object, output measurement signals in a timely manner, and is suitable for measuring fast-moving or vibrating objects.
Wide application range: It can be widely used in industries such as power, petroleum, chemical, metallurgy, etc., for online measurement and safety protection of radial vibration, axial displacement, phase detector, shaft speed, expansion difference, eccentricity, oil film thickness, etc. of large rotating machinery such as steam turbines, water turbines, generators, blowers, compressors, gearboxes, etc., as well as rotor dynamics research and part size inspection.
technical parameter
Measurement range: The measurement range of a typical eddy current sensor may be in different specifications such as 1mm to 20mm.
Accuracy: It can usually achieve high accuracy, such as better than ± 1% FS, etc.
Working temperature: The working temperature range of general sensors is around -35 ℃ to+200 ℃, while the working temperature range of cables and connectors is around -35 ℃ to+150 ℃.
Thread size: Common types include metric or imperial threads with diameters of 6mm, 10mm, and 18mm.
Installation and use
Installation method: The sensor is equipped with installation threads or rectangular mounting flanges for easy installation and fixation.
Connection requirements: The end of the cable can choose self-locking waterproof joint or bare wire method, and the cable can also choose armored or non armored. At a 1m cable location, a joint or no joint can be selected.
Calibration: The sensor and preamplifier have been linearly calibrated using calibration material 42CrMo4 before leaving the factory, so no further calibration is usually required during installation. Users only need to adjust the air gap between the sensor and the measuring surface until the desired signal is obtained from the output of the preamplifier
Many products are not yet on the shelves please contact us for more products.
If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will
arrange to take pictures in the warehouse to confirm!
