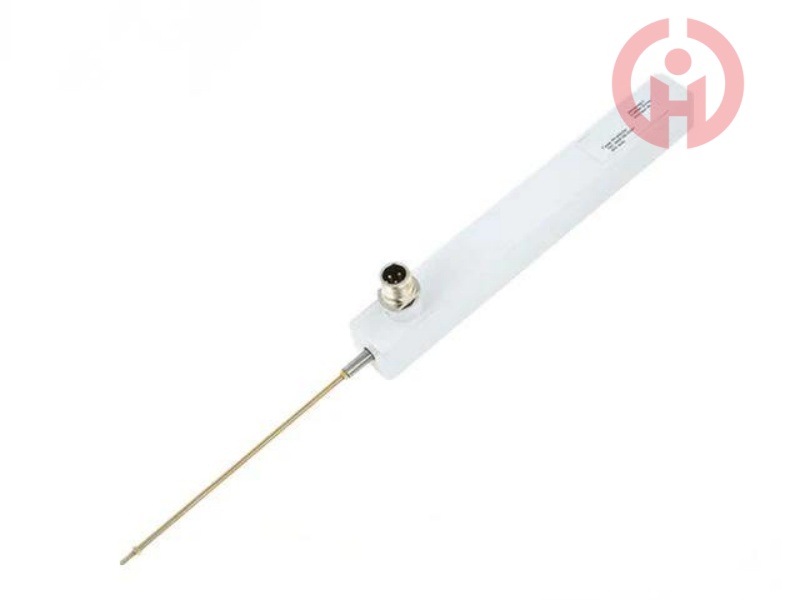

Product Introduction

technical parameter
Measurement range: ± 50mm
Sensitivity: 270mV/V
Linearity error: ≤ 2.5%
Working temperature range: -20 ℃ to 100 ℃
Supply voltage: 5Vrms
Carrier frequency: 3 to 5kHz
Capacitor: 250pF (per winding)
Size: 100mm × 50mm × 20mm
Weight: 100g

Product Features
High precision: capable of accurately measuring parameters such as displacement, position, and eccentricity of the shaft, with an accuracy of ± 0.02% FS.
Wide measurement range: The measurement range is ± 50mm, which can meet various industrial application needs.
High resolution: With a resolution of up to 0.001mm, small displacement changes can be detected.
Good linearity: The linearity can reach ± 0.005%, ensuring the accuracy and reliability of the measurement results.
Durable and sturdy: With an IP67 protection level, it is dustproof and waterproof, and can work stably in harsh industrial environments.
Easy to install: Compact design, easy to install and integrate into existing systems.

application area
Electric power industry: used for measuring parameters such as shaft displacement and differential expansion of equipment such as steam turbines and generators to ensure the safe operation of the equipment.
Petrochemical industry: It can measure the shaft position of compressors, pumps and other equipment, monitor the operating status of equipment, and prevent faults from occurring.
Metallurgical industry: used in equipment such as rolling mills and continuous casting machines to measure roll gap, slider position, etc., to improve production quality and efficiency.
Mechanical manufacturing industry: commonly used for displacement measurement of machine tool workbenches, position control of cutting tools, etc., to improve machining accuracy.
Aerospace field: precise measurement and control of throttle lever position, guide vane position, etc. of aircraft engines.

Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
