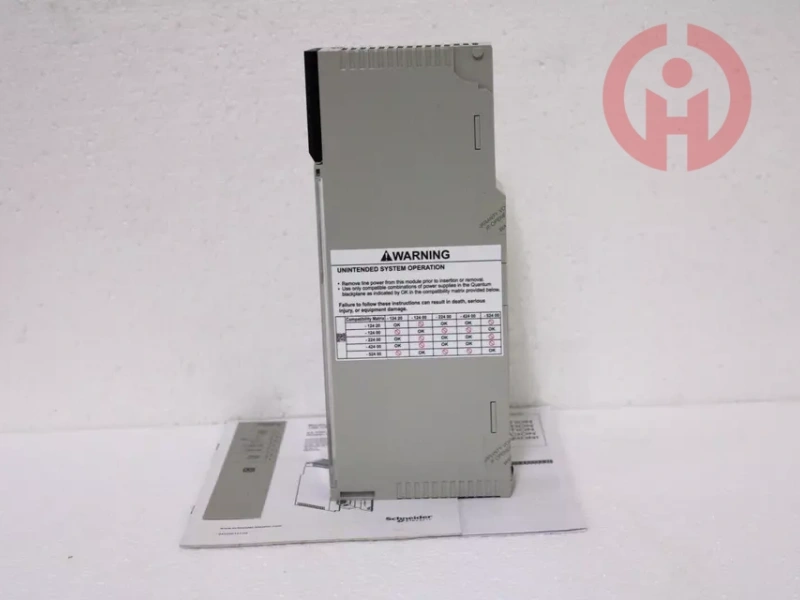

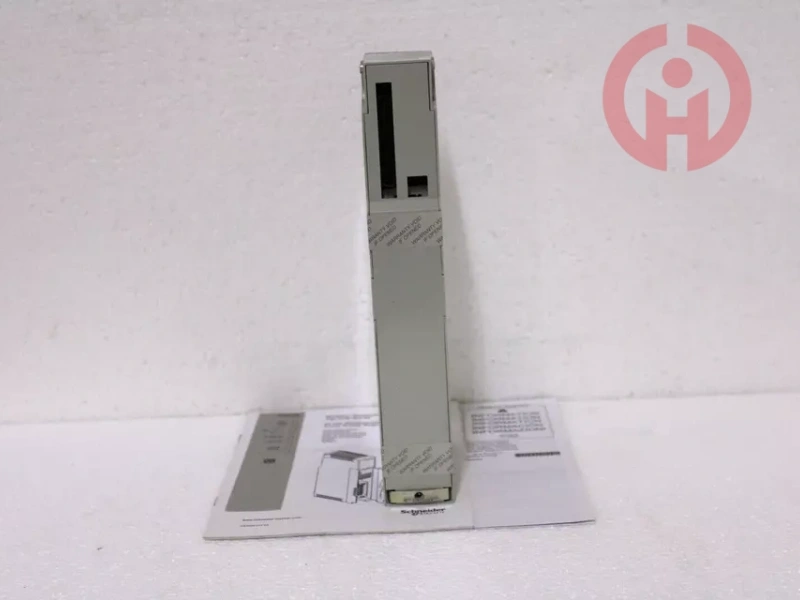

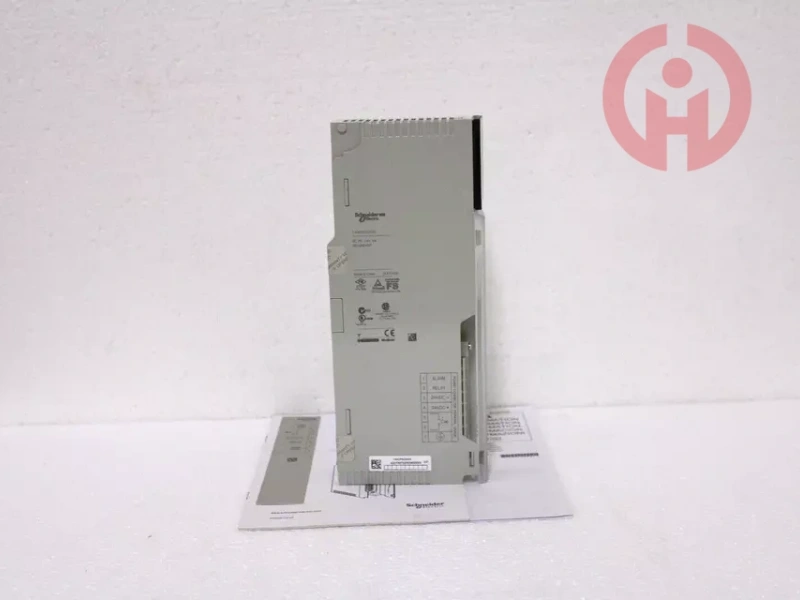

SCHNEIDER 140CPS22400 power supply module Modicon Quantum

SCHNEIDER power supply module Modicon Quantum


Origin: France



Brand: Schneider


The Schneider 140CPS22400 power module is a power module designed specifically for the Modicon Quantum platform. It is mainly used in 24V DC power systems with an input voltage range of 20 to 30V and supports redundancy functions. The maximum output current of this module is 3800mA, and the instantaneous peak current can reach 25A, suitable for 24V and 14A situations. Its input power interruption time is 1ms, and the related fuse level is 5A slow break type


We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.

24-hour service for you

Category:
Share

Related products




Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypePower supply module

Power supply typeRedundant

ComplementaryInput voltage24 V 20...30 V) DC

Input current3800 mA

Inrush current14 A 20 V

25 A 24 V

Maximum input power interruption100 ms

1 ms 20 V

Associated fuse rating5 A, slow-blow

Output voltage5.1 V DC

Power supply output current8 A redundant

Output overvoltage protectionInternal

Output overload protection2.3 x maximum rated input voltage for 1.3 ms

Power dissipation6 + (1.8 x Iout) where Iout is in A

Alarm output1 NC 6 A 220 V power supply fault

Local signallingfor power (PWR OK) 1 LED (green)

MarkingCE

Module formatStandard

Net Weight1.43 lb(US) (0.65 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)




Many products are not yet on the shelves please contact us for more products.



If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
