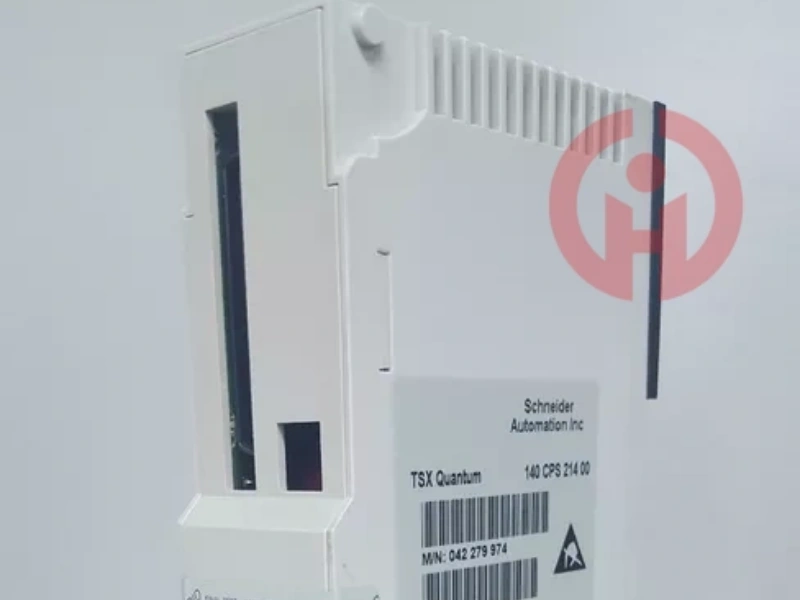

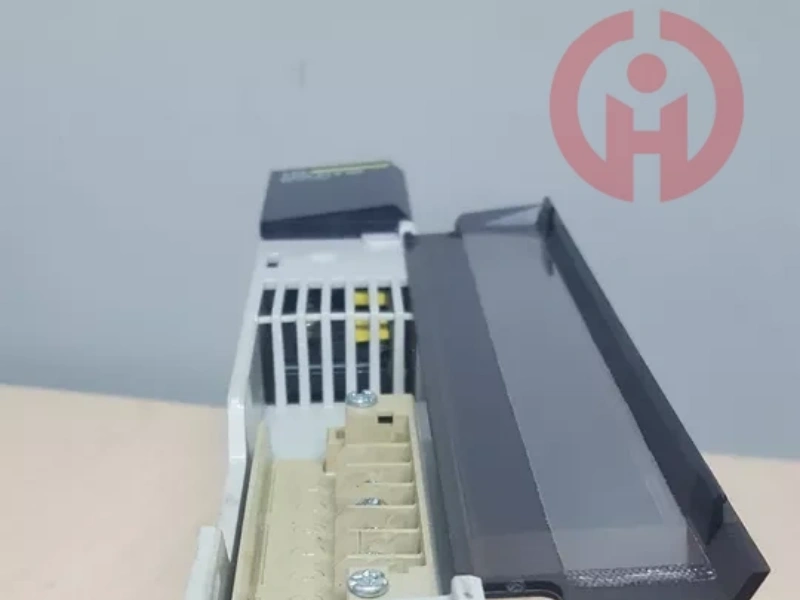

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypePower supply module

Power supply typeSummable

ComplementaryInput voltage24 V 20...30 V) DC

Input current3800 mA

Inrush current14 A 20 V

25 A 24 V

Maximum input power interruption100 ms

1 ms 20 V

Associated fuse rating5 A, slow-blow

Output voltage5.1 V DC

Power supply output current8 A summable

Output overvoltage protectionInternal

Output overload protectionInternal

Power dissipation6 + (1.8 x Iout) where Iout is in A

Alarm output1 NC 6 A 220 V power supply fault

Local signallingfor power (PWR OK) 1 LED (green)

MarkingCE

Module formatStandard

Net Weight1.43 lb(US) (0.65 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationscUL

FM Class 1 Division 2

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
