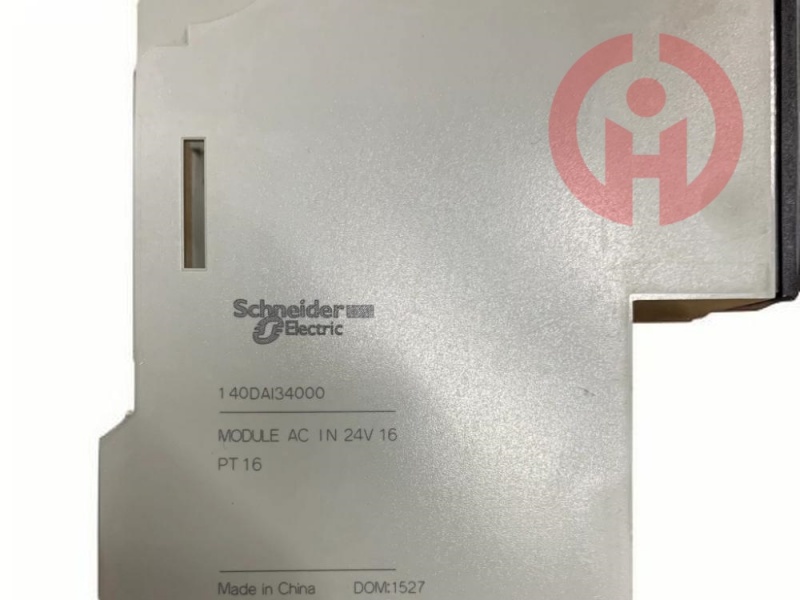

SCHNEIDER 140DA134000 discrete input module

SCHNEIDER discrete input module


Origin: France



Brand: Schneider


The 140DA134000 input module is part of Schneider Electric's Modicon Quantum series, with the specific model number 140DAI34000. This module is an 8-channel unipolar analog input module, mainly used in industrial automation control systems, especially in situations that require high precision and stable performance.


We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.

24-hour service for you

Category:
Share

Related products




Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeVAC discrete input modules

Software nameConcept

ProWORX 32

Unity Pro

Discrete input number16

ComplementaryGroup of channels16

Addressing requirement1 input word

Discrete input voltage24 V AC

Input current12 mA 57...63 Hz

10.7 mA 47...53 Hz

Voltage state 1 guaranteed16...30 V AC 57...63 Hz

18...30 V AC 47...53 Hz

Voltage state 0 guaranteed0...6 V 57...63 Hz

0...5 V 47...53 Hz

Input impedance2600 Ohm capacitive 57...63 Hz

3100 Ohm capacitive 47...53 Hz

Network frequency limits47…63 Hz

Maximum leakage current1.9 mA

Absolute maximum input30 V continuous

32 V 10 s

50 V 1 cycle

Response Time4.9...0.75 ms x line cycle Off-On

7.3...12.3 ms On-Off

Isolation between channels1780 Vrms for 1 minute

Isolation between channels and bus1780 Vrms for 1 minute

Bus current requirement180 mA

Maximum power dissipation in W5.5 W

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 16 LEDs (green)

MarkingCE

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationscUL

FM Class 1 Division 2

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)



Many products are not yet on the shelves please contact us for more products.



If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
