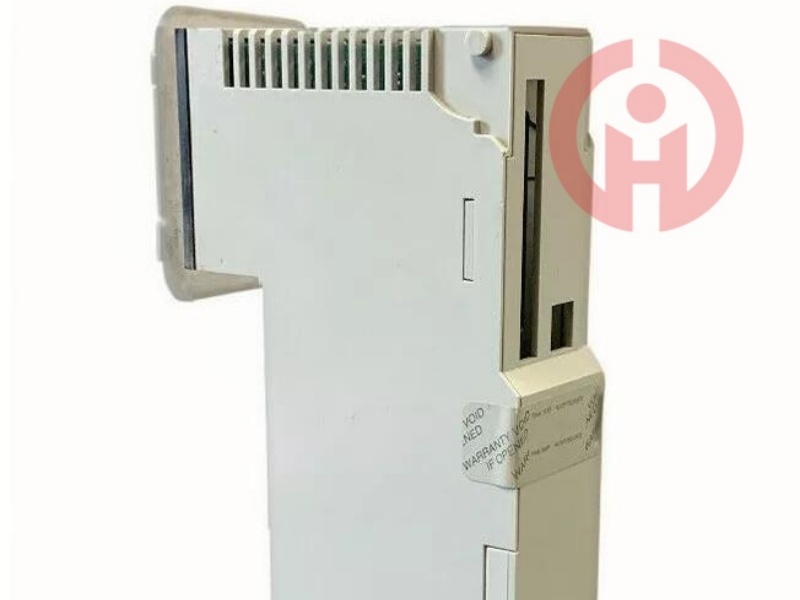

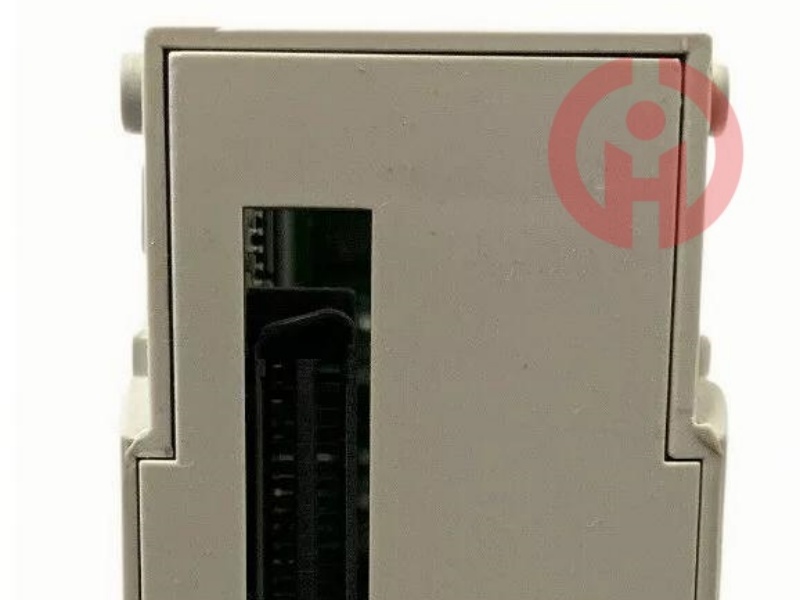

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeVAC discrete input modules

Software nameProWORX 32

Concept

Unity Pro

Discrete input number32

ComplementaryGroup of channels4

Addressing requirement2 input words

Discrete input voltage24 V AC

Input current11.1 mA 57...63 Hz

13.2 mA 47...53 Hz

Voltage state 1 guaranteed12...30 V AC 57...63 Hz

14...30 V AC 47...53 Hz

Voltage state 0 guaranteed0...5 V 57...63 Hz

0...5 V 47...53 Hz

Input impedance2600 Ohm capacitive 57...63 Hz

3100 Ohm capacitive 47...53 Hz

Network frequency limits47…63 Hz

Maximum leakage current1.9 mA

Absolute maximum input30 V continuous

32 V 10 s

50 V 1 cycle

Response Time4.9...0.75 ms x line cycle Off-On

7.3...12.3 ms On-Off

Isolation between group1780 Vrms for 1 minute

Isolation between group and bus1780 Vrms for 1 minute

Bus current requirement250 mA

Maximum power dissipation in W10.9 W

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

MarkingCE

Module formatStandard

Net Weight0.75 lb(US) (0.34 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
