Product Introduction

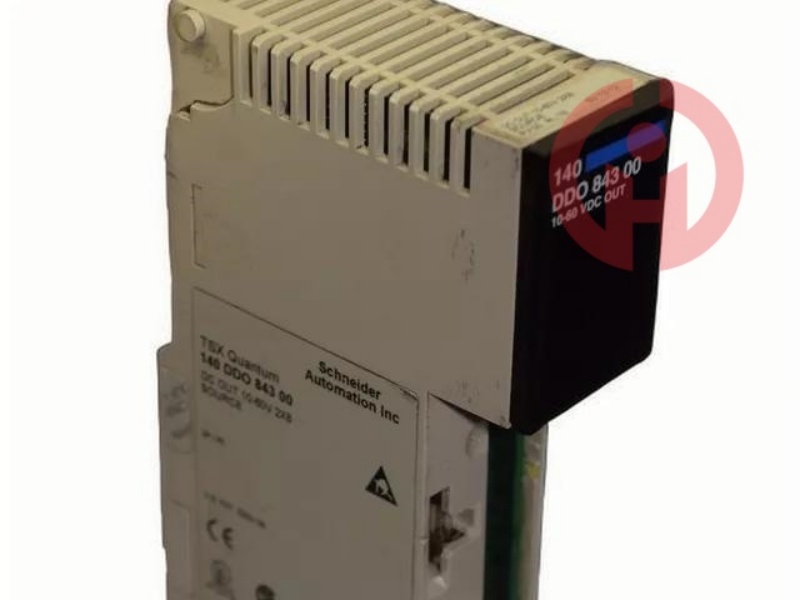

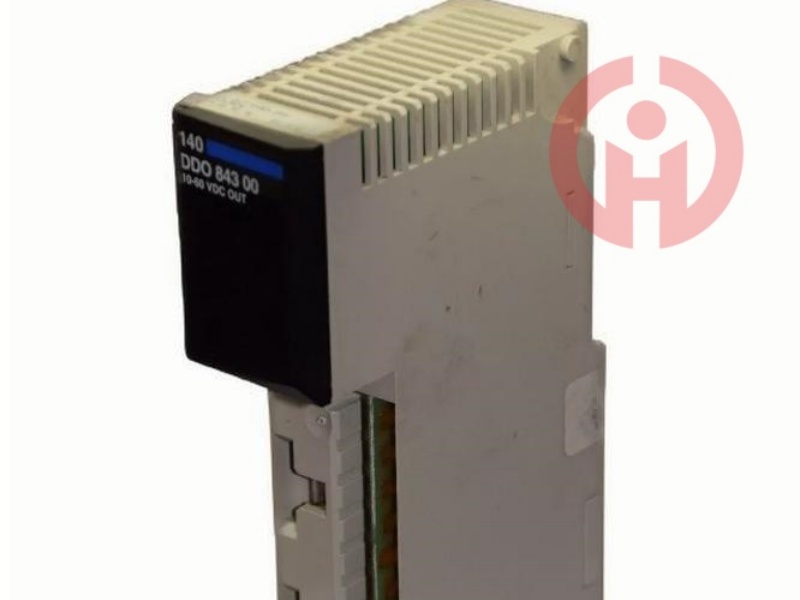

Range of ProductModicon Quantum automation platform

Product or Component TypeDc discrete output module

Discrete output number16

ComplementaryGroup of channels2 groups of 8

Discrete output logicPositive logic (source)

Addressing requirement1 output word

Discrete output voltage10...60 V DC

Output voltage limits10.2...72 V

Absolute maximum output72 V permanent

Maximum voltage drop<1 V 2 A

Maximum load current12 A per module

6 A per group

Surge current7.5 A 50 s

Response Time<= 1 ms at state 0 to state 1

<= 1 ms at state 1 to state 0

Maximum leakage current1 mA 60 V

Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))

Associated fuse rating2 A each point

8 A per group

Isolation between channels and bus2500 Vrms DC for 1 minute

Isolation between group700 Vrms DC for 1 minute

Protection TypeInternal output protection by 8 A fuse per group

Power dissipation1 W + (1 V x total module load current)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 16 LEDs (green)

Bus current requirement160 mA

Module formatStandard

Net Weight0.99 lb(US) (0.45 kg)

EnvironmentProduct CertificationsGOST

RMRS

FM Class 1 Division 2

C-tick

StandardsCSA C22.2 No 142

UL 508

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
