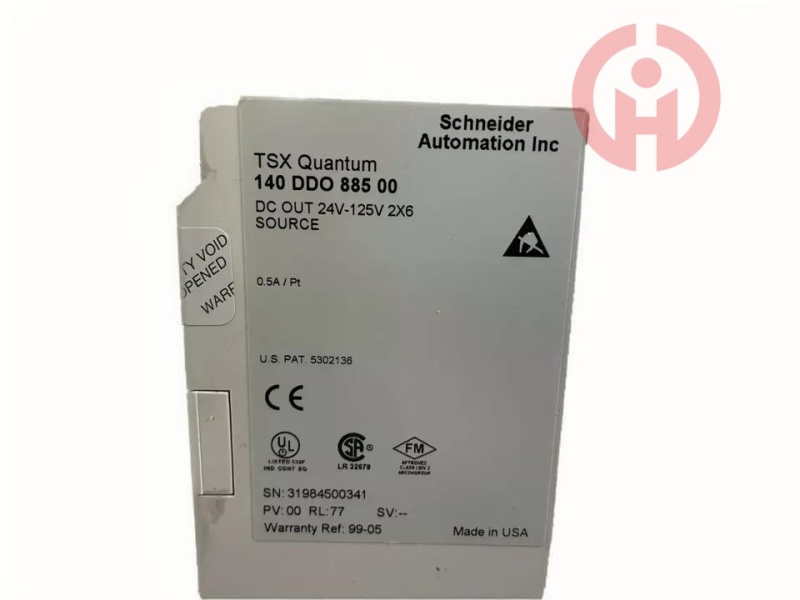

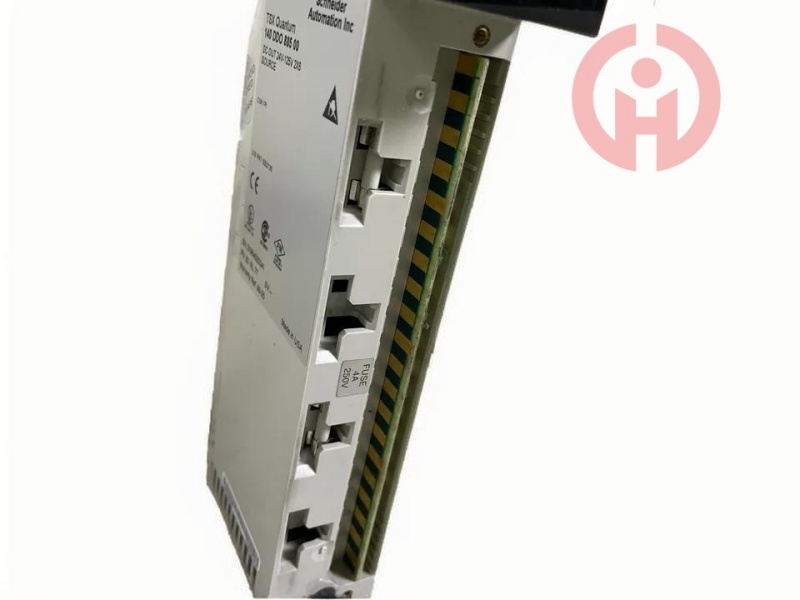

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeDc discrete output module

Discrete output number12

ComplementaryGroup of channels2 groups of 6

Discrete output logicNegative logic (sink)

Addressing requirement1 input word

1 output word

Discrete output voltage24...125 V DC

Output voltage limits19.2...156.2 V

Maximum load current<= 3 A 32…140 °F (0…60 °C) each group

<= 6 A 32…140 °F (0…60 °C) per module

<= 0.75 A 32…104 °F (0…40 °C) each point

Surge current4 A 1 ms

Response Time1 ms at state 0 to state 1

1 ms at state 1 to state 0

Short-circuit protectionWith

Output overvoltage protectionBy varistor per group

Load inductanceNo limit (protected by diode)

Maximum tungsten load41 W 115 V

46 W 130 V

8 W 24 V

Switching frequency<= 50 Hz

Fault indicationOvercurrent

Isolation between channels and bus2500 Vrms DC for 1 minute

Isolation between group1200 Vrms DC for 1 minute

Protection TypeInternal output protection by 4 A fuse

Power dissipation1 W + (0.77 x all points on)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 16 LEDs (green)

Bus current requirement375 mA 6 outputs at state 1

650 mA 12 outputs at state 1

Module formatStandard

Net Weight0.99 lb(US) (0.45 kg)

EnvironmentProduct CertificationsGOST

FM Class 1 Division 2

C-tick

RMRS

StandardsUL 508

CSA C22.2 No 142

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
