Product Introduction

Range of ProductModicon Quantum automation platform

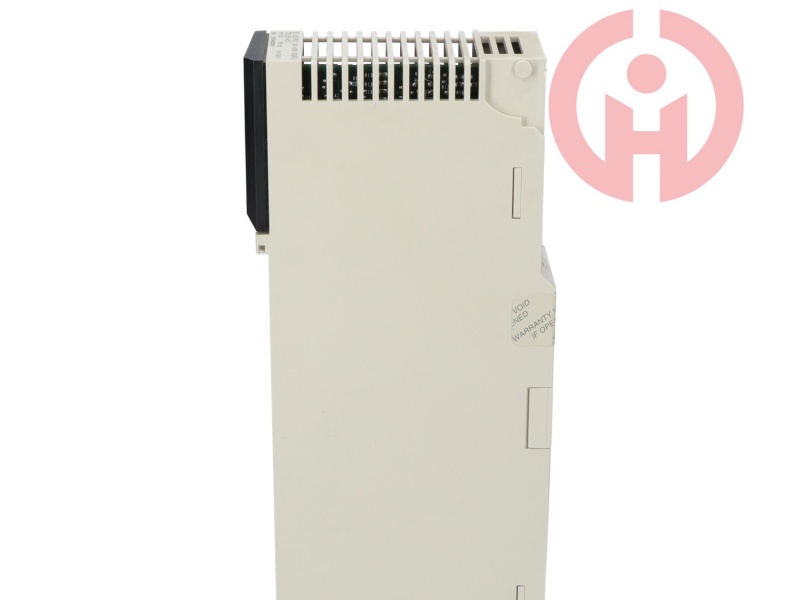

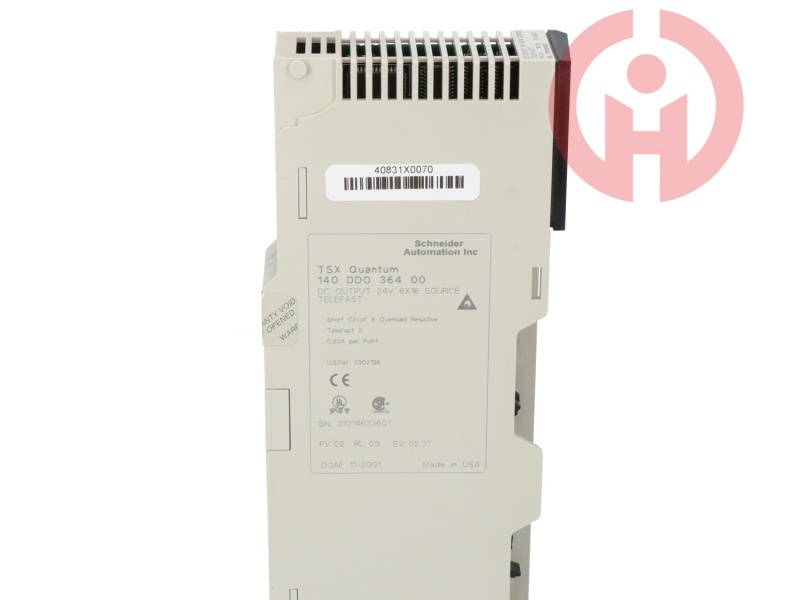

Product or Component TypeDc discrete output module

Discrete output number96

ComplementaryGroup of channels6 groups of 16

Discrete output logicNegative logic (sink)

Addressing requirement6 output words

Discrete output voltage24 V DC

Output voltage limits19.2...30 V

Maximum voltage drop<0.4 V 0.5 A

Maximum load current<= 0.5 A each point

<= 19.2 A per module

<= 3.2 A each group

Surge current2 A

Response Time<= 0.1 ms at state 0 to state 1

<= 0.1 ms at state 1 to state 0

Maximum leakage current1 mA 24 V

Short-circuit protectionWith

Output overload protectionWith

Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz

Fault indicationFault sensing

Fault point

Loss of field power

Fault reporting

Isolation between channels and bus500 Vrms DC for 1 minute

Power dissipation7 W

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 96 LEDs (green)

Bus current requirement250 mA

Module formatStandard

Net Weight0.99 lb(US) (0.45 kg)

EnvironmentProduct CertificationsC-tick

RMRS

GOST

FM Class 1 Division 2

StandardsCSA C22.2 No 142

UL 508

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
