Product Introduction

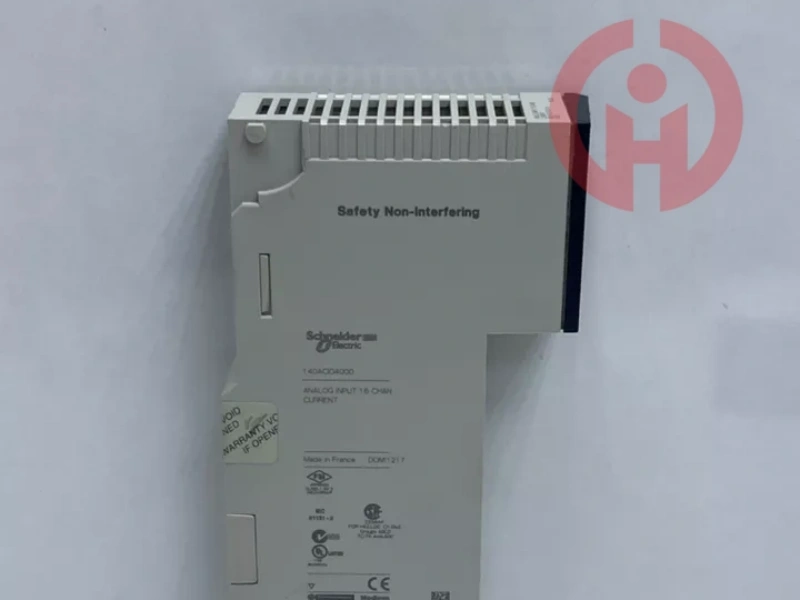

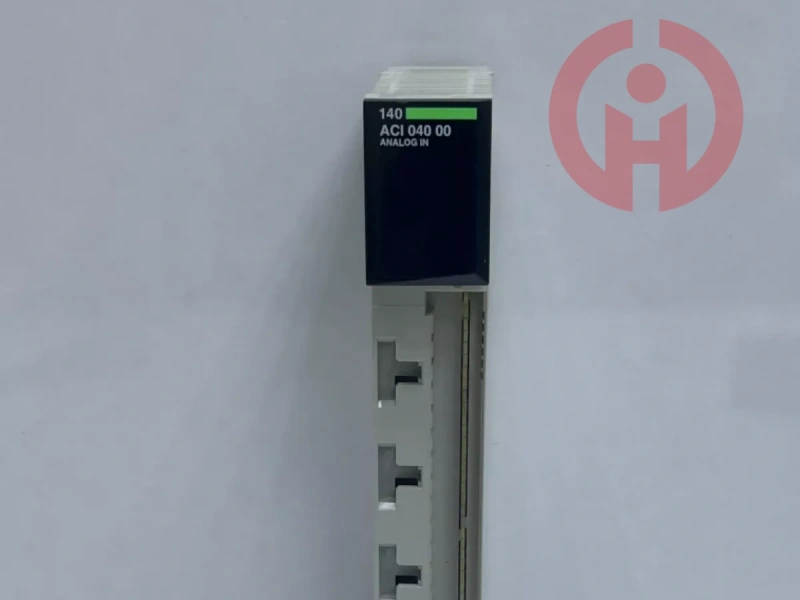

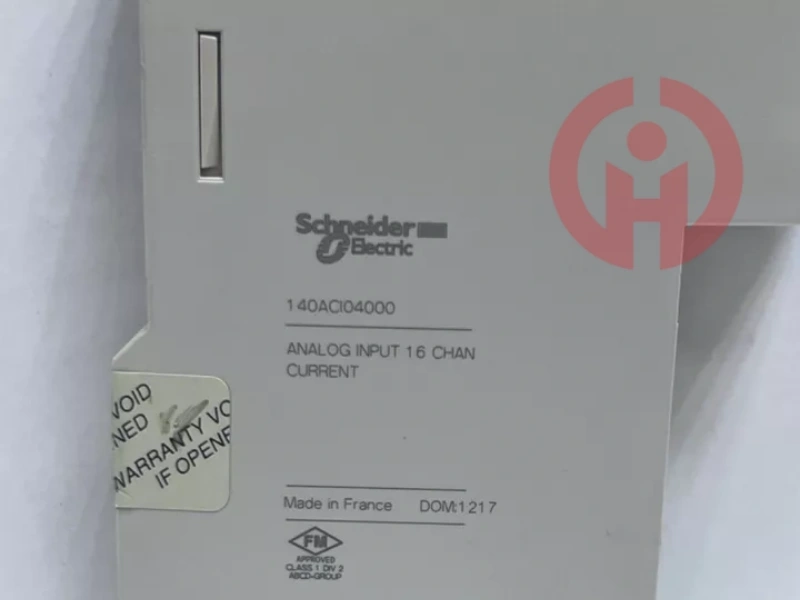

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue input module

Type of filterSingle pole low pass - 3 dB at 34 Hz +/- 25 %

ComplementaryAnalogue input number16

Input typeDifferential

Addressing requirement17 input words

Analogue input resolution0...16000 counts 4...20 mA

0...20000 counts 0...20 mA

0...25000 counts 0...25 mA

0...4095 counts 4...20 mA

Absolute maximum input30 mA

Input impedance250 Ohm

Absolute accuracy error+/- 0.125 % of full scale

Linearity error+/- 12 µA max 4...20 mA

+/- 6 µA max 0...20 mA

+/- 6 µA max 0...25 mA

+/- 6 µA max 4...20 mA

Accuracy drift according to temperature+/- 0.0025 % of full scale/°C

<= 0.0050 % of full scale /°C

Common mode rejection> - 90 dB 60 Hz

Isolation between channels and bus1780 V AC 60 s

Update time15 ms 2 wires/4 wires

Fault typeBroken wire 4...20 mA

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 16 LEDs (green)

for channel fault 16 LEDs (red)

Bus current requirement360 mA

Power dissipation in W5 W

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
