Product Introduction

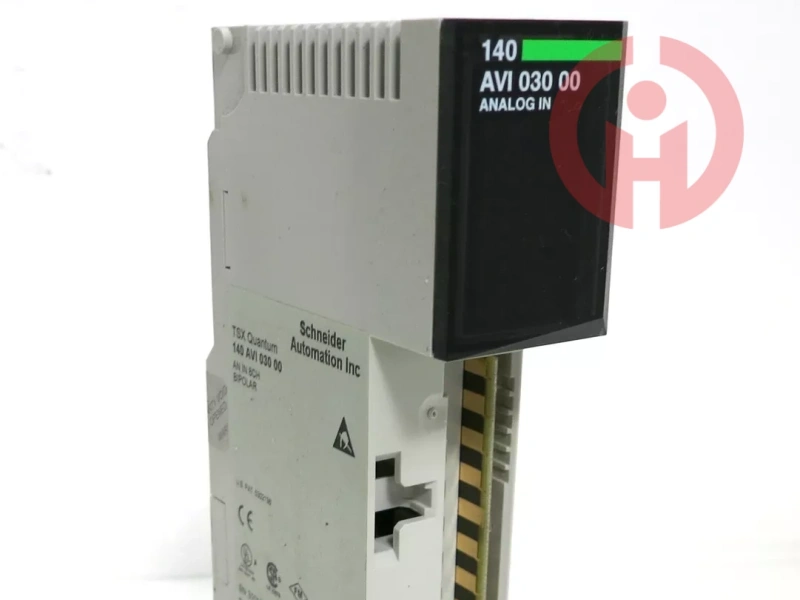

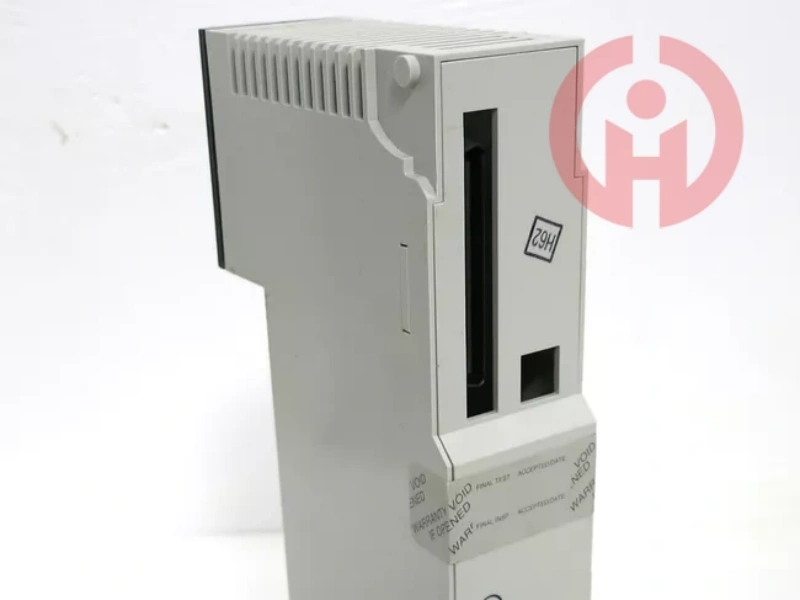

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue input module

Type of filterSingle pole low pass - 3 dB at 847 Hz +/- 20 %

ComplementaryAnalogue input number8

Input typeDifferential

Addressing requirement9 input words

Analogue input typeBipolar current 20 mA

Bipolar voltage +/- 10 V

Bipolar voltage +/- 5 V

Unipolar current 0...20 mA

Unipolar voltage 0...10 V

Unipolar voltage 0...5 V

Analogue input resolution16 bits +/- 10 V

16 bits +/- 5 V

16 bits 0...10 V

16 bits 0...20 mA

16 bits 0...5 V

16 bits 20 mA

Linear measuring range(input range) x 1.024 mA

(input range) x 1.024 V

Absolute maximum input50 V DC

25 mA

Input impedance> 20 Ohm voltage

250 MOhm +/- 0.03 %

Absolute accuracy error+/- 0.03 %

+/- 0.05 % of full scale maximum

Linearity error+/- 0.008 %

Accuracy drift according to temperature+/- 0.0015 % of full scale/°C

<= 0.004 % of full scale /°C

Common mode rejection> - 80 dB 60 Hz

Isolation between channels and bus500 Vrms AC 60 s

750 V DC

Isolation between channels135 Vrms AC

200 V DC

Update time10 ms

Fault typeBroken wire 4...20 mA

Overtacking scale 1...5 V

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 8 LEDs (green)

for channel fault 8 LEDs (red)

Bus current requirement280 mA

Power dissipation in W2.2 W

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
