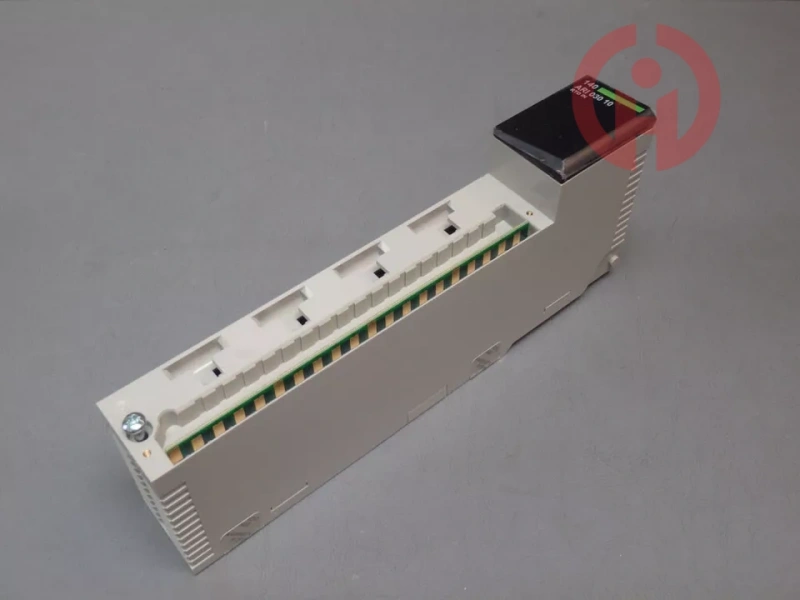

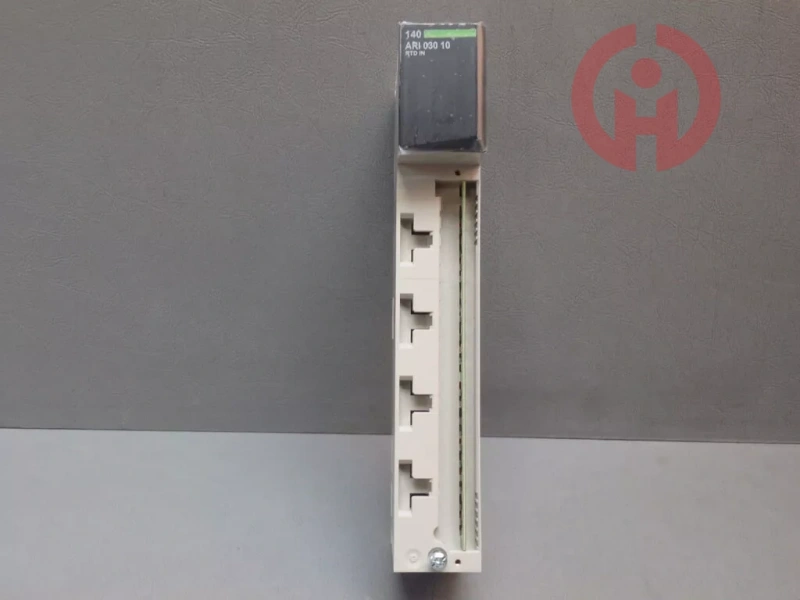

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue input module

ComplementaryAnalogue input number8

Input typeDifferential

Addressing requirement9 input words

Analogue input typeTemperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000

Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000

Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000

Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000

Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200

Analogue input resolution13 bits

Input impedance>= 10 MOhm

Absolute accuracy error0.1 °C

Linearity error+/- 0.01 % full scale

+/- 0.5 °C

Accuracy drift according to temperature+/- 0.5 °C 77 °F (25 °C)

+/- 0.9 °C 32…140 °F (0…60 °C)

Isolation between channels and bus1780 V AC 47...63 Hz 60 s

2500 V DC 60 s

Isolation between channels300 Vrms AC

Update time1200 ms 3 wires

640 ms 2 wires/4 wires

Fault typeBroken wire

Overtacking scale

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 8 LEDs (green)

for channel fault 8 LEDs (red)

Bus current requirement200 mA

Power dissipation in W1 W

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
