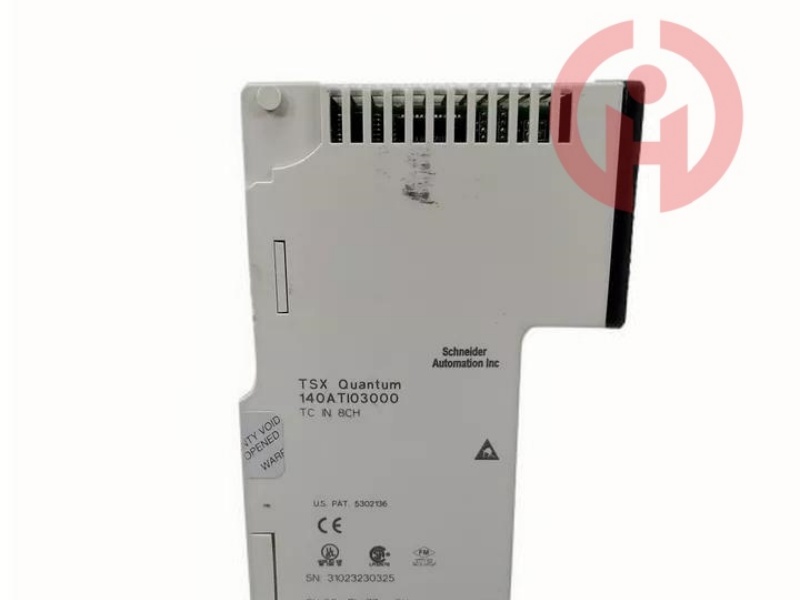

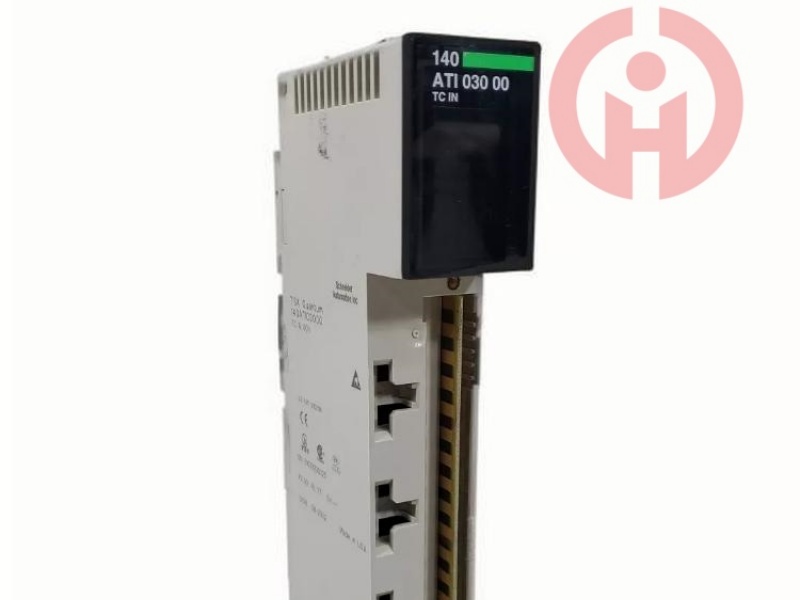

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue input module

Type of filterNotch filter - 3 dB at 50/60 Hz

Single pole low pass - 3 dB at 20 Hz

ComplementaryAnalogue input number8

Addressing requirement10 input words

Analogue input typeThermocouple - 210...760 °C thermocouple J

Thermocouple - 270...1000 °C thermocouple E

Thermocouple - 270...1370 °C thermocouple K

Thermocouple - 270...400 °C thermocouple T

Thermocouple - 50...1665 °C thermocouple R

Thermocouple - 50...1665 °C thermocouple S

Analogue input resolution16 bits

Absolute accuracy error+/- 2 °C plus + 0.1 % of reading thermocouple E

+/- 2 °C plus + 0.1 % of reading thermocouple J

+/- 2 °C plus + 0.1 % of reading thermocouple K

+/- 2 °C plus + 0.1 % of reading thermocouple T

+/- 4 °C plus + 0.1 % of reading thermocouple R

+/- 4 °C plus + 0.1 % of reading thermocouple S

Linearity error1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C

1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C

Accuracy drift according to temperature0.15 µV/°C + 0.0015 % of reading/°C max low level voltage

Common mode rejection> - 120 dB 50/60 Hz

Isolation between channels and bus1780 V AC 60 s

2500 V DC 60 s

Isolation between channels300 V DC

220 V AC

Update time1000 ms

Fault typeBroken wire

Overtacking scale

MarkingCE

Cold junction compensationInternal 32…140 °F (0…60 °C)

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 8 LEDs (green)

for channel fault 8 LEDs (red)

Bus current requirement280 mA

Power dissipation in W1.5 W

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationscUL

FM Class 1 Division 2

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature
