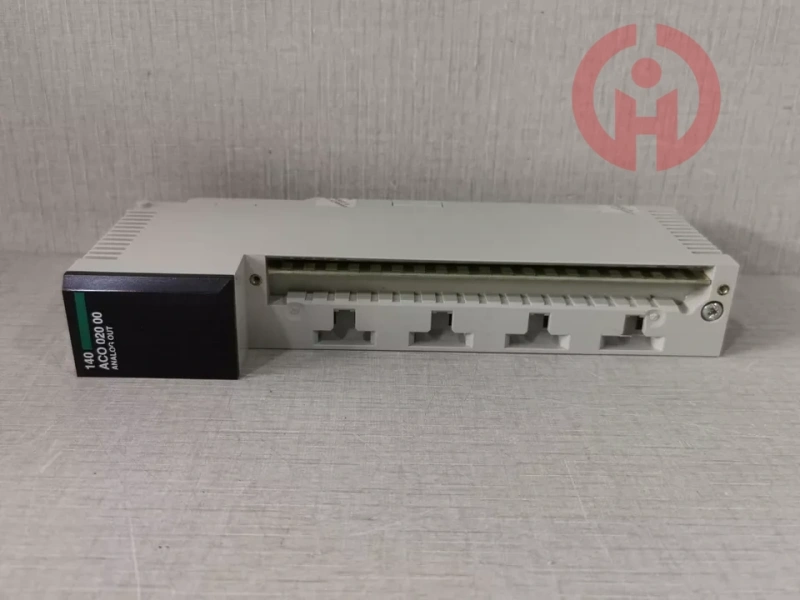

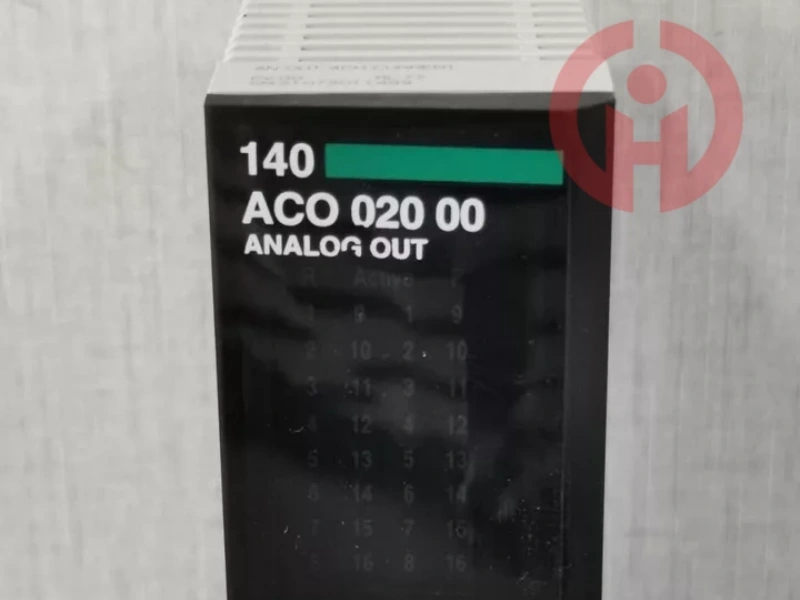

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue output module

ComplementaryAnalogue output number4

Addressing requirement4 output words

Loop voltage12…30 V DC

Maximum voltage drop<30 V 20 mA

Analogue output range4...20 mA 0...4096 counts, 12 bits bipolar current

Absolute accuracy error+/- 0.20 % of full scale 77 °F (25 °C)

Linearity+/- 1 LSB

Accuracy drift according to temperature+/- 0.004 % of full scale/°C

+/- 0.007 % of full scale/°C maximum

Isolation between channels500 V 47...63 Hz AC

750 V for 1 minute DC

Update time3 ms

Setting time900 µs to +/- 0.1 % of the final value

Fault typeOpen circuit 4...20 mA

Bus current requirement480 mA

Maximum power dissipation in W5.3 W

External power requirement12...30 V

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 4 LEDs (green)

for channel fault 4 LEDs (red)

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentProduct CertificationsFM Class 1 Division 2

cUL

StandardsCSA C22.2 No 142

UL 508

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
