Product Introduction

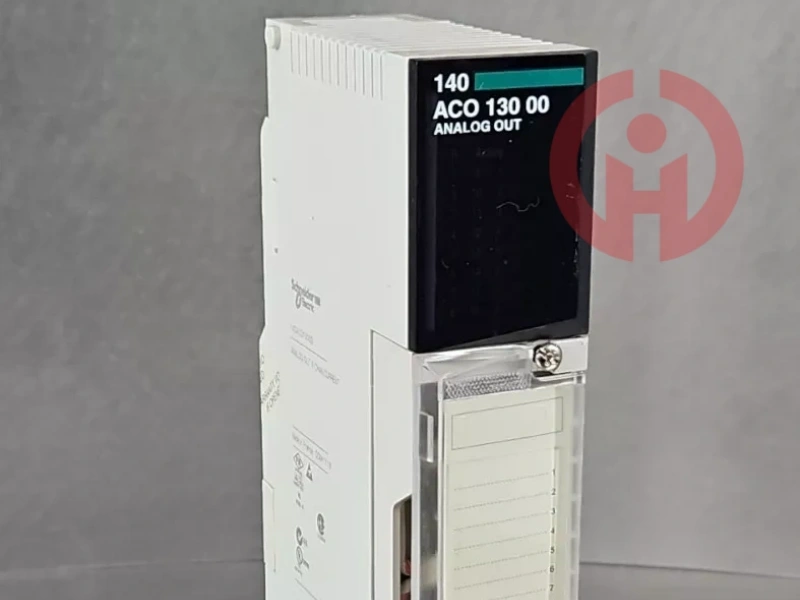

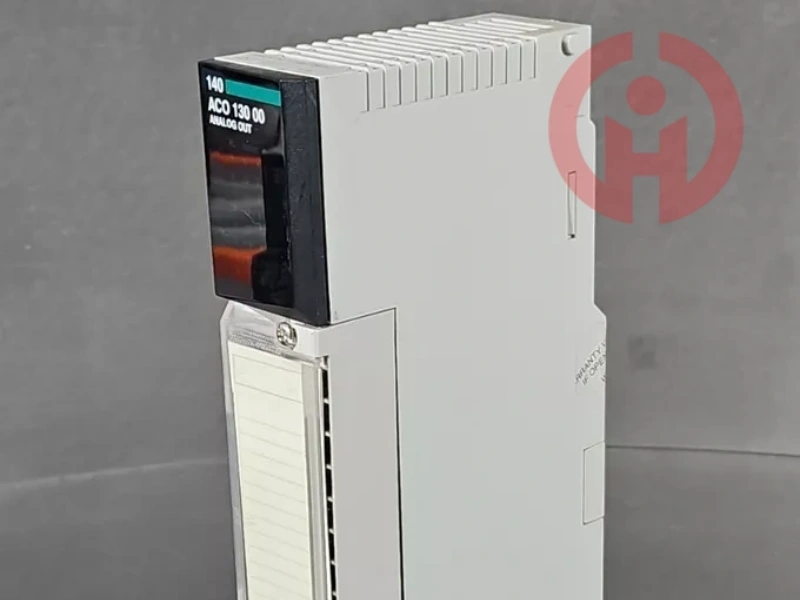

Range of ProductModicon Quantum automation platform

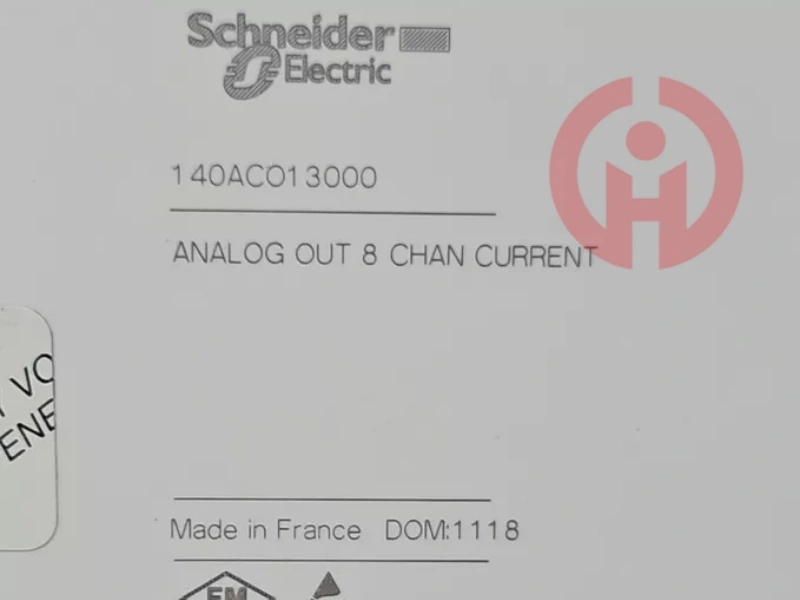

Product or Component TypeAnalogue output module

ComplementaryAnalogue output number8

Addressing requirement8 output words

Loop voltage6…30 V DC

Maximum voltage drop<30 V 25 mA

Analogue output range0...20 mA 0...20000 counts

0...25 mA 0...25000 counts

4...20 mA 0...16000 counts

4...20 mA 0...4095 counts

Absolute accuracy error+/- 0.2 % of full scale 77 °F (25 °C)

Linearity+/- 12 µA 4...20 mA 0...4095 counts

+/- 4 µA 0...20 mA 0...20000 counts

+/- 4 µA 0...25 mA 0...25000 counts

+/- 4 µA 4...20 mA 0...16000 counts

Accuracy drift according to temperature0.004 % of full scale/°C typical

0.007 % of full scale/°C maximum

Isolation between channels and bus1780 V for 1 minute AC

Update time5 ms

Setting time3.2 ms to +/-0.1% of the final value

1.6 ms to 5% of the final value

Fault typeOpen circuit 4...20 mA

Bus current requirement550 mA

Maximum power dissipation in W5 W

External power requirement6...30 V

MarkingCE

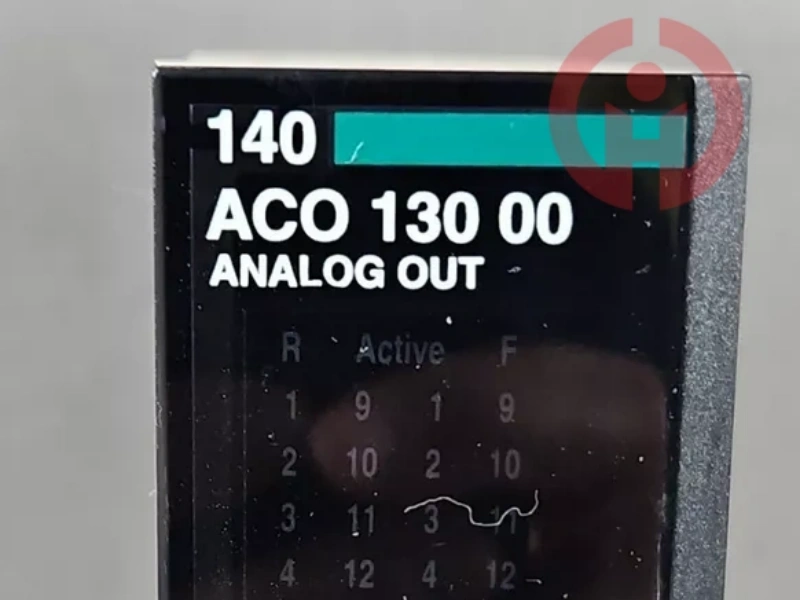

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 8 LEDs (green)

for channel fault 8 LEDs (red)

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentProduct CertificationscUL

FM Class 1 Division 2

StandardsUL 508

CSA C22.2 No 142

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
