Product Introduction

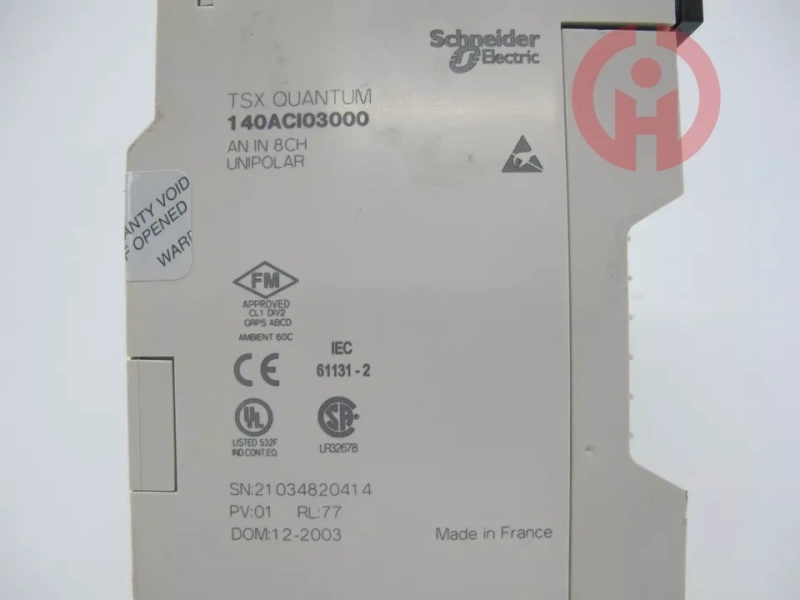

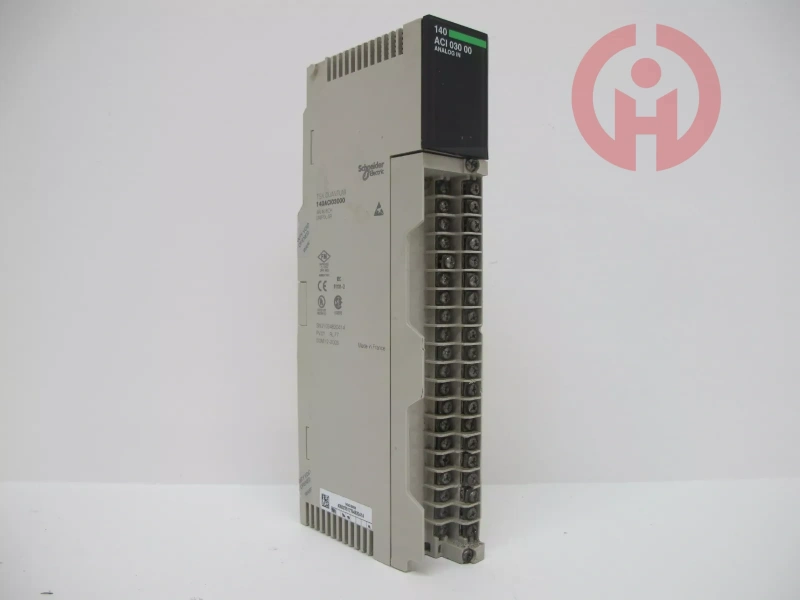

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue input module

Type of filterSingle pole low pass - 3 dB at 15 Hz +/- 20 %

ComplementaryAnalogue input number8

Input typeDifferential

Addressing requirement9 input words

Analogue input resolution12 bits

Linear measuring range1...5 V

4...20 mA

Absolute maximum input50 V DC

25 mA

Input impedance250 Ohm current +/- 0.01 %

> 20 MOhm voltage

Absolute accuracy error+/- 0.05 % of full scale

+/- 0.1 % of full scale maximum

Linearity error+/- 0.04 %

Accuracy drift according to temperature+/- 0.0025 % of full scale/°C

<= 0.005 % of full scale/°C

Common mode rejection> - 72 dB 60 Hz

Isolation between channels and bus1000 V DC

3000 V DC 60 s

Isolation between channels30 V DC

Update time5 ms

Fault typeBroken wire 4...20 mA

Undervoltage range 1...5 V

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 8 LEDs (green)

for channel fault 8 LEDs (red)

Bus current requirement240 mA

Power dissipation in W2 W

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

cUL

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
