GE IS215UCVEH2AE Mark VI Circuit Board

IS215UCVEH2AE is a product developed by GE and is a component of the Mark VI Speedtronic control system. It is used as a VME control card in the control system and plays an important role. It helps to realize various functions of the system, such as data sharing and monitoring, and can also perform remote monitoring and management to reduce the workload of on-site maintenance.

Category:
G GE
Share

Related products




Product Introduction

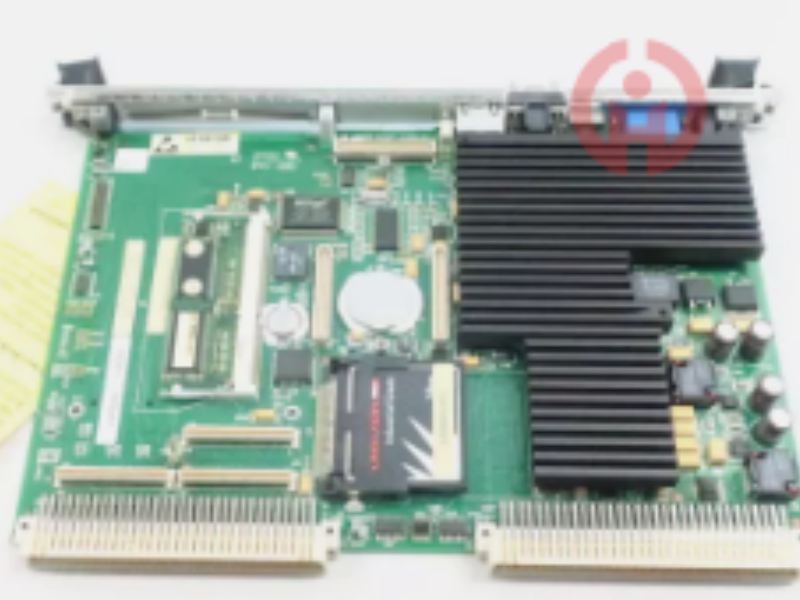

The IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system. The board is used as a VME control card. The VME card rack is the standard rack for the Mark VI, and is available in either a 13-slot or 21-slot rack. The IS215UCVEH2AE is a rectangular board with a front panel. There is a retaining screw on the top and bottom of the panel to hold the board in place after it is mounted in the rack system. The front panel includes an Ethernet port, two COM ports, and a LAN port. It also has an opening for a mezzanine card. The board itself includes vertical pin connectors within the body of the board and right-angle pin connectors along the edge of the board. In addition, there are multiple integrated circuits, resistors, capacitors, chokes, and other components on the board. In addition, there is a small circuit board mounted at an angle in the center of the board, and a heat sink cover over half of the board. Please note that we have multiple versions of this board in stock. Please make sure to order the correct board for your application.

Board Construction and Composition:
Double-Sided Board: This is a VMIC control card designed as a double-sided board. One side uses a large number of integrated circuits of various sizes, which store a certain amount of information that tells the board how to operate and what functions to perform; the other side also has integrated circuits, various styles of capacitors and resistors, and is also equipped with two lithium batteries and a microSD card and all connection terminals.
Front panel assembly: As a rectangular plate with a front panel, there is a fixing screw on the top and bottom of the front panel to help fix the board in place after it is installed in the rack system. The front panel includes an Ethernet port, two COM ports and a LAN port, as well as an opening for a mezzanine card.

Extension function:
Digital expansion: It has the function of expanding digital input and output channels, allowing users to customize and expand the system according to actual needs, so as to monitor and control more devices and process variables.

Interface diversity: Supports multiple interfaces such as RS-485, CAN, etc., which facilitates communication and control with external devices.

Programmability: Users can implement different control logic and algorithms through programming to adapt to diverse application requirements.

Ease of use and maintainability: It has a friendly user interface and easy-to-use development tools, making configuration, debugging and maintenance relatively simple.

Processor: Intel Celeron microprocessor running at 300MHz, equipped with 32MB of DRAM memory, and optional 16MB or 128MB compact flash memory module1.
Cache: Contains a 128KB L2 cache, which significantly improves data access speed.

Main Ethernet interface (Ethernet1): Supports TCP/IP and Ethernet Modbus protocols, ensuring seamless data exchange between the controller and the toolbox, and between the controller and third-party DCS systems.

COM1 and COM2 ports: Used for diagnostic purposes and serial Modbus communication, respectively, and support multiple baud rate settings.

Expandability
One of the main functions of the IS215UCVEH2AE is to expand digital input and output channels, thereby enhancing the capabilities and monitoring range of industrial automation control systems. This design provides users with greater flexibility and can be customized and expanded according to actual needs.

Compatibility
The module can connect and communicate with many types of devices, such as sensors, actuators, and other control system components. This wide compatibility allows the module to be easily integrated into existing industrial automation systems.

Reliability
Adopting high-quality materials and manufacturing processes, IS215UCVEH2AE has high reliability and stability. It can adapt to various harsh working environments and ensure the continuous and stable operation of the system.

Safety
The module has a variety of protection functions, such as overload protection and short-circuit protection, to ensure the safe operation of equipment and systems. These protection functions reduce potential safety risks and improve the overall safety of the system.

Easy to use and maintain
Provides a friendly user interface and easy-to-use development tools to facilitate users to configure, debug and maintain. At the same time, it also supports remote monitoring and management, reducing the workload of on-site maintenance.

Programmable function
Supporting programmable functions, users can achieve different control requirements through programming. This makes the module more flexible and customizable to meet the needs of various industrial automation and control systems.

LED indication function
The module also has an LED indication function, which is convenient for users to understand the working status of the module and improves the maintainability of the system.

Application scenario
GE IS215UCVEH2AE is widely used in industrial automation and control systems, especially in scenarios where it is necessary to expand digital input and output channels. Whether it is large-scale industrial production enterprises, oil refining, cement mining or papermaking and shipbuilding industries, IS215UCVEH2AE can provide efficient and reliable solutions.
