GE IC697CPM925 Single slot CPU Module

GE IC697CPM925 Single slot CPU Module is an important industrial controller module produced by General Electric (GE). This module is widely used in many industrial automation fields with its high performance and multi-faceted functions.

Category:
G GE
Share

Related products




Product Introduction

GE IC697CPM925 Single Slot CPU Module PLC CPU 64 MHz, 32-bit Floating Point CPU, 1 MB Memory The CPM 925 is a single slot programmable controller CPU that allows floating point calculations. The CPM 925 CPU is programmed and configured by MS-DOS or Windows based programming software for real time control of machines, processes and material handling systems. It communicates with I/O and intelligent option modules in VME C.1 standard format through a rack mounted backplane (IC697CHS750, 782, 783, 790, 791). Supported option modules include all IC697 LAN interface modules, several coprocessor modules, IC660/IC661 I/O bus controllers, communication modules, and all IC697 series discrete and analog I/O modules.

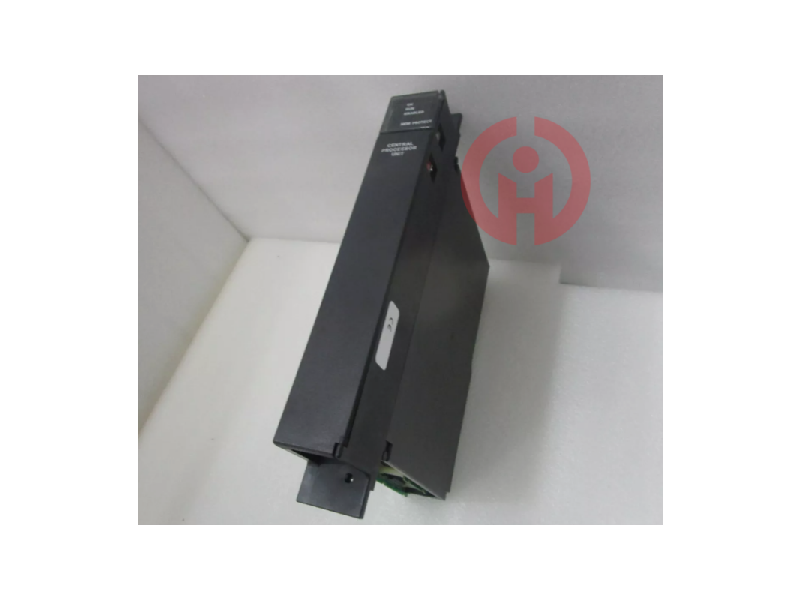

GE IC697CPM925 Single Slot CPU Module.jpg

Features

Single Slot CPU

1 MB battery backed memory in same slot

Supports floating point calculations

12K inputs and outputs (any combination)

Up to 8K analog I/O

0.4 microseconds per Boolean function

64 MHz, 80486DX2 microprocessor

Supports IC660/IC661 and IC697 I/O

Programmable by MS-DOS or Windows software products running on Windows 95 or Windows NT via Ethernet TCP/IP or SNP port

Configurable data and program memory

Battery backed calendar clock

Three position operating mode switch

Password controlled access

Remote programmer key switch memory protection

Four status LEDs

Software configuration (no DIP switches or jumpers required)

Reference information inside front door

In-system firmware upgrade

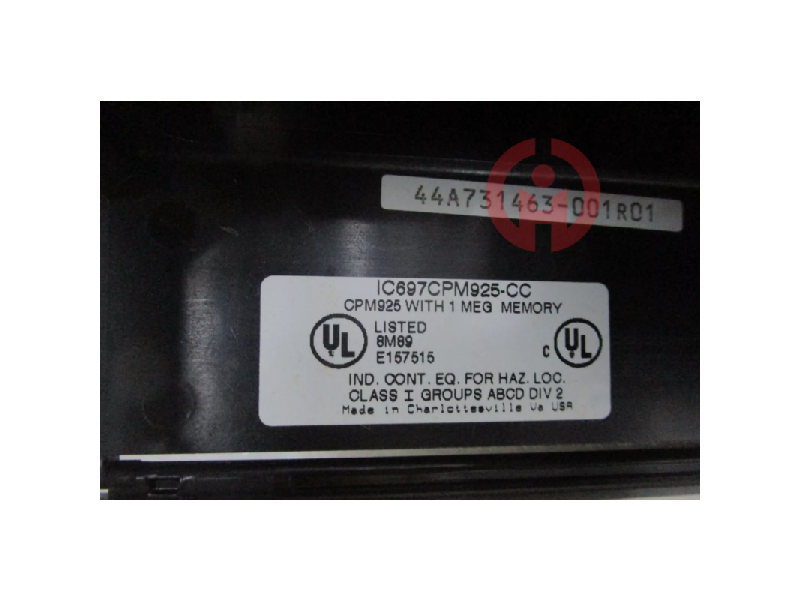

GE IC697CPM925 single slot CPU module

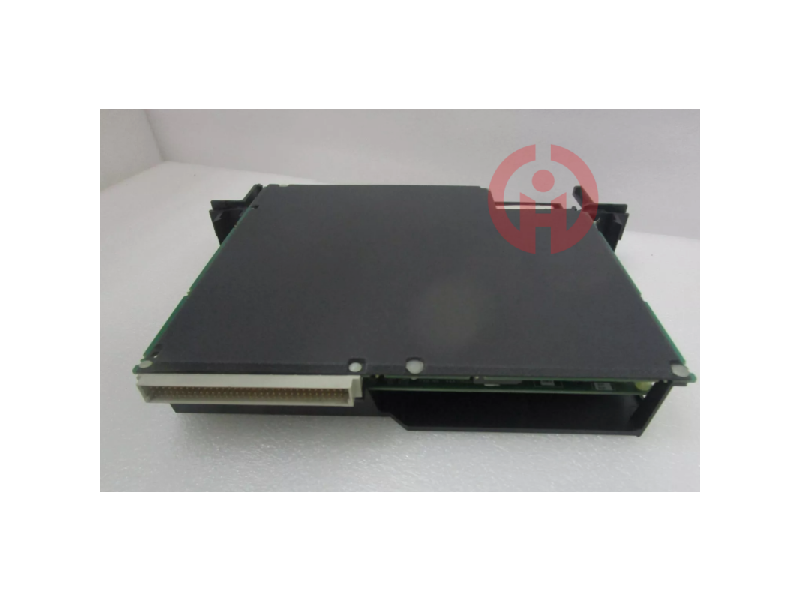

GE IC697CPM925 single slot CPU module

Connecting the programmer via an Ethernet TCP/IP network requires an Ethernet interface module to be installed in the PLC. This can be an Ethernet controller IC697CMM741 or an Ethernet interface (type 2), IC697CMM742. Before connecting the programmer and PLC to the Ethernet TCP/IP network, you must set the IP address in the Ethernet interface. After setting the IP address, connect the PLC and the programmer running Windows software to the Ethernet interface.

Main functions and features:

Node unit: used to receive various types of signals on site1.

Network unit: contains the control network and Ethernet, supporting communication between the operator station and the engineer station.

Human-machine interface: includes the engineer station and the operator station for configuration and specific operations.

Power supply section: provides a variety of power supply options, including power supply for control stations, power supply for nodes, 24V instrument relay power supply, and 220V power supply including UPS, etc.
Application Fields
The main application industries of GE IC697CPM925 Single slot CPU Module include textile machinery, lifting machinery, manufacturing, metallurgy, electric power, petroleum and petrochemical, ship docks, chemicals, aerospace, machine tools, plastic machinery, rubber machinery, electronic equipment and automotive industries.

Technical Specifications
CPU Information
Processor: 12MHz, 32KB central processor, using 80C186 microprocessor.
Memory: Supports 64, 128, 256 and 512KB CMOS extended memory versions.
Other Features
Programming Software: Programming and configuration using MS-DOS or Windows programming software.
Alarm Function: Capable of reporting deviations in actual and programmed configurations.
LED Indicator: There are three green LEDs to indicate the CPU status.
