GE 369-LO-R-M-0-E-0-E Multilin369 Motor Management Relay

GE Multilin 369 Series Motor Management Relays are digital relays designed to monitor and protect three-phase motors and other mechanical systems. They are able to use a custom overload curve (FlexCurve) or any of fifteen standard curves to provide motor protection where other relays cannot.

Category:
G GE
Share

Related products




Product Introduction

GE Multilin369 369-LO-RM-0-E-0-E Motor Management Relay 369LORM0E0E .GE Multilin 369 Motor Management Relay is a legacy product designed for comprehensive protection and control of medium-sized AC motors. Protection and Control: The 369 relay provides comprehensive protection and management for medium-sized AC motors and their drive equipment. It includes a variety of independent protection and control elements that can be selectively enabled.

Seamless Upgrade: For existing systems using Drawout Multilin 269 Motor Management Relays, the Multilin 369 provides a seamless upgrade path. This reduces system downtime and maintenance costs because there is no need to install kits, rework existing cutouts, and rewire the chassis. Communications and Traceability: With comprehensive communication options and full traceability of all setting changes through secure setting change history reporting, the 369 ensures unparalleled motor protection.

The GE Multilin 369-LO-RM-0-D-0-E is a specific model in the 369 series designed for monitoring and protecting three-phase motors and other mechanical systems. Key specifications include:
Control Power: Rated at 20-60 VDC / 20-48 VAC.
RTD Inputs: Twelve RTD inputs for temperature monitoring.
Metering Options: Includes metering capabilities.
Enhanced Diagnostics: Provides enhanced diagnostic capabilities.
Optional DeviceNet Protocol: Supports optional DeviceNet protocol for communication.
Front Panel Display: Features a 40-character alphanumeric display for viewing values, alarms, and trips, as well as status indicator LEDs and a keypad for value selection.

The General Electric 369-LO-RM-0-D-0-E is a GE 369 motor management relay. This digital relay is used to monitor and protect three-phase motors and other mechanical systems. They use a custom overload curve (FlexCurve) or any of fifteen standard curves to provide motor protection where other relays cannot.

The 369-LO-RM-0-D-0-E is the base 369 model with a LO controlled power design. It is rated for 20-60 VDC/20-48 VAC. The unit features 12 RTD inputs, a metering option, enhanced diagnostics, and an optional DeviceNet protocol. The unit can monitor up to 12 RTDs individually.

With the Enhanced option, the unit includes an Enhanced Panel with Motor Status Indicator, Motor Start Data Logger, Enhanced Event Logger, Enhanced Learning Data, and a Security Audit Trail.

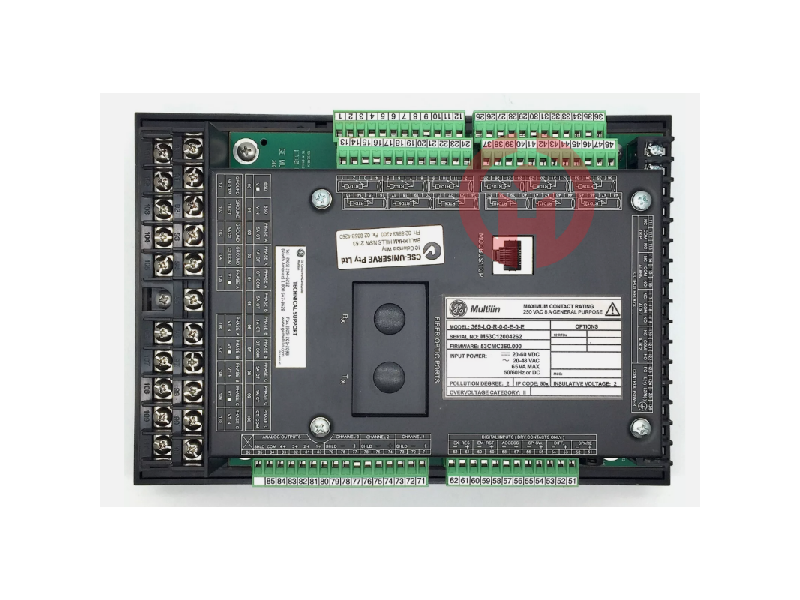

The front panel of the 369-LO-RM-0-D-0-E includes a 40-character display (alphanumeric) for viewing values, alarms, and trips. The panel also includes status indicator LEDs, a keypad for selecting values, and a help key. The rear of the device includes customer accessible fuses, output relays, RTD inputs, and other inputs. The device is UL listed and CE marked.

For more information, please refer to the original manufacturer's documentation. This will include manuals and user guides that provide step-by-step information on installation and removal as well as operating instructions. It is necessary to read these thoroughly for your safety and to preserve the life of your purchase. AX Control typically ships in-stock products within a few hours of placing an order.

Key Features:

High Input Voltage Range: Supports DC (110-250 VDC) and AC (100-240 VAC) inputs at 50/60 Hz frequencies.

Multiple Input Options: There are 12 RTD (Resistance Temperature Detector) inputs available.

Optional metering package adds voltage and power measurement capabilities.

Fiber Optic Port Option 1 Available.

Communication Interfaces: RS232 port for connection to a PC. RS485 port for communication with other devices. Fiber optic port for high-speed communications (1200-19200 baud, Modbus RTU protocol).

Enhanced Diagnostics: Features advanced diagnostic capabilities.

Harsh Environment Option: Designed for environments containing corrosive chemicals.

Dimensions: Approximately 29.6 cm H x 10.7 cm W x 20.5 cm L.

Weight: Approximately 10 lbs.

Differential Switching Time Delay: Less than 200 ms.

Phase Current Inputs: Supports 1 A and 5 A secondary inputs.

The relay is compatible with GE's EnerVista software suite, which includes tools for monitoring motor status, maintenance and integration with SCADA systems.

The 369-LO-R-0-0-E-0-E provides a seamless upgrade path for existing Multilin 269 motor management relay users, allowing them to take advantage of newer hardware features while minimizing downtime and maintenance costs. Designed for high-performance motor protection and control in industrial environments, this relay offers advanced features such as RTD input, metering capabilities, and powerful communication options. It is compatible with GE software suites and is suitable for integration into large automation systems.
