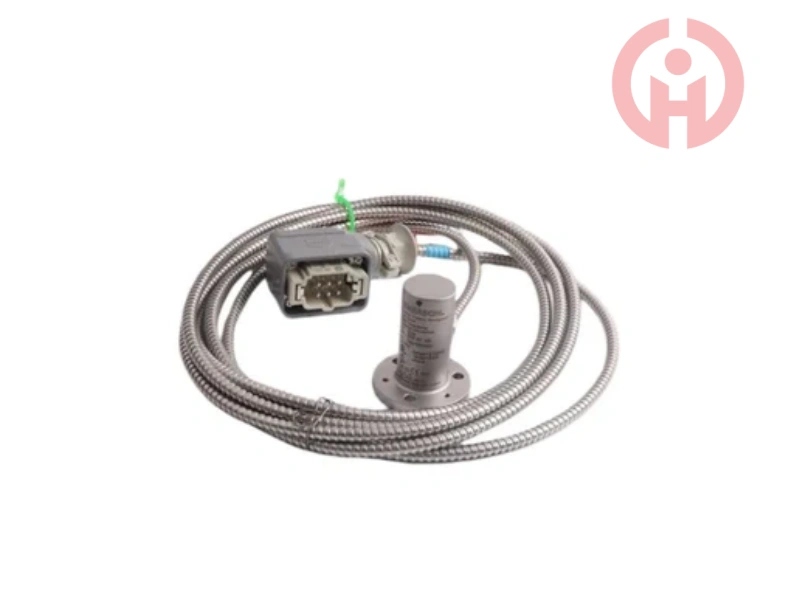

Product Introduction

Measurement performance
Linear measurement range: 2mm (80mils)
Sensitivity: 8V/mm (203.2mV/mil) ± 5%, temperature range 0 to 45 ° C (+32 to+113 ° F)
Measurement material: Conductive steel, standard target material is 42CrMo4 (AISI/SAE 4140), other materials can also be used according to requirements
Measurement target form: cylindrical shaft, flat surface, measuring ring on machine shaft
Measure the height of the ring on the shaft surface: ≥ 25mm (1% additional error)
Axis peripheral speed: 0-2500m/s
Shaft diameter: ≥ 25mm
Nominal gap: 1.5mm
Measurement error: When calibrated and connected to CON0..., the linear error is ≤± 1%; Zero temperature error 200mV/100K; Temperature sensitivity<2%/100K; Long term drift of 0.3%
The impact of maximum power supply voltage:< 20mV/V

Environmental parameters
Protection level: IP66，IEC 60529
Working temperature range: The sensor includes a 1-meter cable -35 to+200 ° C (-31 to 392 ° F); Cables and connectors -35 to+150 ° C (-31 to 302 ° F)
Pressure resistance: 2 bar
Vibration and impact: 5g 60Hz

physical characteristics
Shell thread: M10x1 or 3/8 "-24-UNF-2A
Shell material: stainless steel
Cable length: Typically, sensor cables are 1m long and can be extended by 3m, or can be determined according to ordering requirements
Maximum temperature of cable:+ 200°C
Weight: The sensor with a 1-meter cable weighs approximately 100 grams (3.53 oz); Net weight 0.1kg and gross weight 0.2kg without metal protective cover; Net weight 0.3kg, gross weight 0.5kg with metal protective cover

application area
Non contact sensors are designed specifically for critical turbomachinery applications such as steam turbines, gas turbines, water turbines, compressors, gearboxes, pumps, and fans, to measure the radial and axial dynamic displacement, position, eccentricity, and velocity of shafts.
