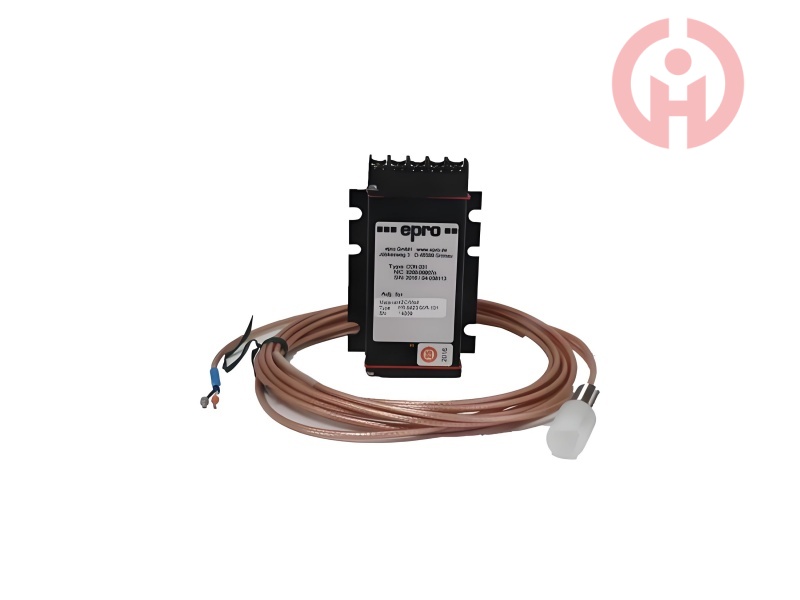

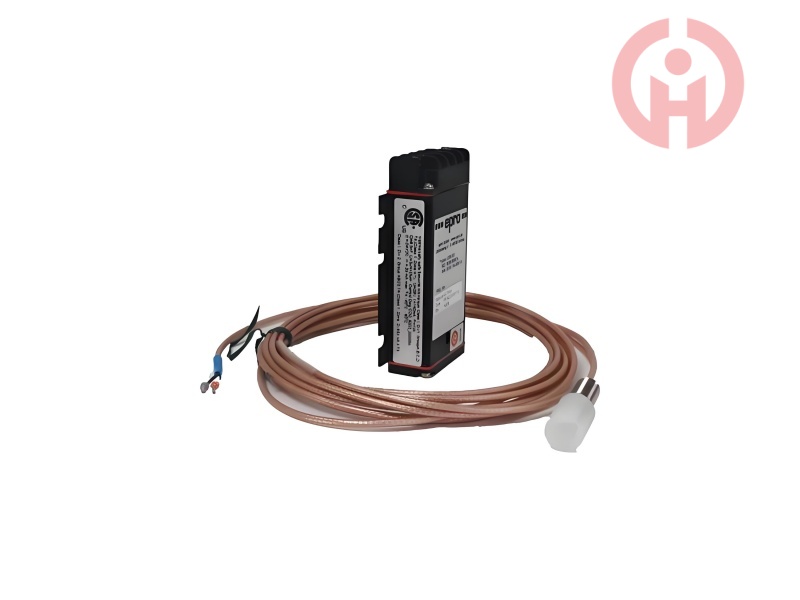

Product Introduction

Range: Static ± 1.0mm; Dynamic 0-50-500 μ m.
Sensitivity: 8V/mm.
Measurement material: conductive steel.
The form of measurement target: cylindrical shaft, flat surface, measuring ring on machine shaft.
Measure the height of the ring on the shaft surface: ≥ 25mm (with an additional error of 1%).
Axis peripheral velocity: 0-2500m/s.
Shaft diameter: ≥ 25mm.
Nominal gap: 1.5mm.
Measurement error: When calibrated and connected to CON0..., it is related to F.S.D., with a linear error of ≤± 1%; Zero temperature error 200mV/100K; Temperature sensitivity<2%/100K; Long term drift of 0.3%.
The impact of maximum power supply voltage:< 20mV/V.
Working and storage temperature:- 40-+70 ℃.
Sensor housing thread: M10x1 or 3/8 "-24-UNF-2A.
Shell size: The detailed size is not specified, but it is made of stainless steel material.
Pressure resistance: 2 bar.
Vibration and impact: 5g 60Hz.
Cable length: Not specifically stated, but the sensor and converter CON031/CON041 are connected as loose cables that can be connected to screw terminals.
Maximum temperature of cable:+ 200 ℃.
Weight: Net weight 0.1kg without metal protective cover, gross weight 0.2kg; Net weight 0.3kg and gross weight 0.5kg with metal protective cover.
