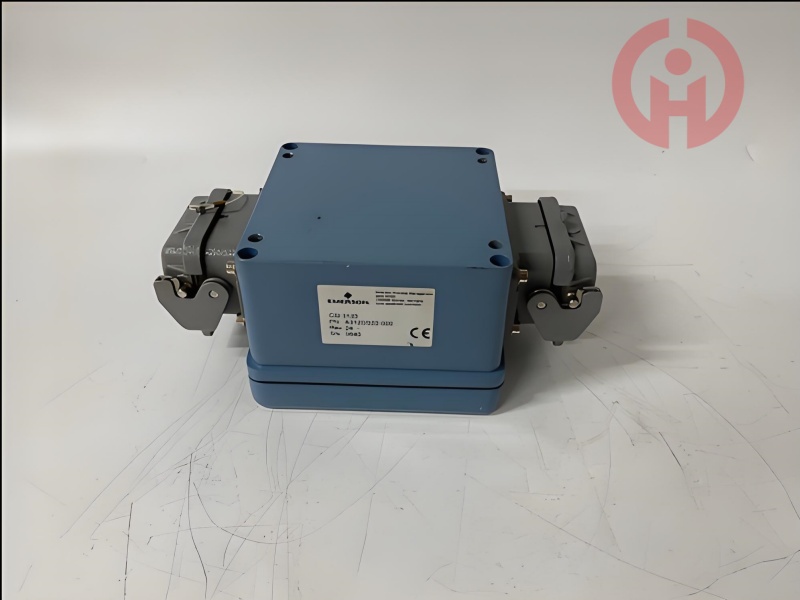

Product Introduction

technical parameter
Frequency range: 5/10... 1000Hz (DIN45670).
Linear:< 0.25%.
Temperature drift: Zero point<0.05%/K; Gain range<0.01%/K.
Time drift: Zero point<0.01%/24 hours; Gain range<0.01%/24 hours.
Measurement signal output: Two channels of 0/4... 20mA current output, one channel per channel, proportional to the corresponding input, or one current output proportional to max (Sxpp, Sypp), Smax, allowing a load of 500 Ω, with short circuit and open circuit protection, connected to the cable through clamp terminals; Two buffered voltage outputs (2-10V), one for each channel, proportional to the input dynamic signal, used for testing, as well as for analysis and diagnostic purposes; One "OK" status output and two limit value outputs.
Power supply: 18... 24... 31.2V DC, the transmitter circuit is electrically isolated from the power supply through a DC/DC converter.
Current consumption: approximately 100mA/24V.
Power consumption: approximately 2.5 watts.

Product Features
Dual channel design: can simultaneously monitor the vibration of two bearings, improving monitoring efficiency.
Accurate measurement: Advanced sensor technology and signal processing technology are used to accurately measure the vibration of bearings.
Easy to set up: The initial settings are completed through toggle switches and rotary switches, and the factory settings are for common working modes or can be set according to user requirements.
Equipped with self checking function: capable of real-time monitoring of the working status of sensors and their own circuits, detecting faults and promptly changing the status through logic "OK" output and setting the current output to zero.
Multiple output forms: including current output, voltage output, and status output, which can meet different monitoring and control needs.
Application areas: Used for bearing vibration monitoring of various types of turbomachinery, such as large and small steam turbines, fans, blowers, compressors, gearboxes, centrifuges, pumps, coal mills, etc. It is suitable for large-scale equipment in power plants, refineries, and chemical plants, and can be used in conjunction with fieldbus, PLC, main computer, and network. It is also suitable for independent monitoring of small turbine machinery with few measurement points.
