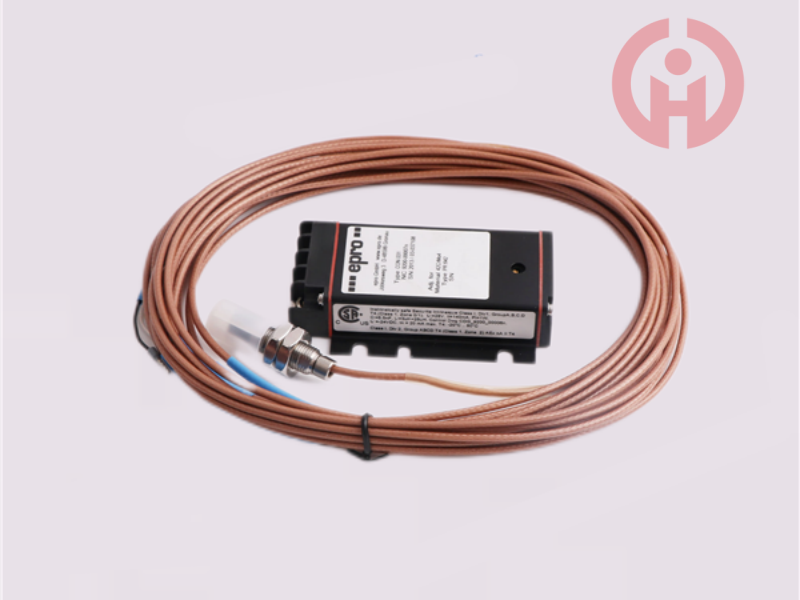

Product Introduction
technical parameter
Range: Static ± 1.0mm; Dynamic 0-50-500 μ m.
Sensitivity: 8V/mm.
Measurement material: conductive steel.
The form of measurement target: cylindrical shaft, flat surface, measuring ring on machine shaft.
Measure the height of the ring on the shaft surface: ≥ 25mm (will result in an additional error of 1%).
Axis peripheral velocity: 0-2500m/s.
Shaft diameter: ≥ 25mm.
Nominal gap: 1.5mm.
Measurement error: Linear error ≤ ± 1%; Zero temperature error 200mV/100K; Temperature sensitivity<2%/100K; Long term drift of 0.3%; The impact of the maximum power supply voltage is less than 20mV/V.
Working and storage temperature: -40 ℃ to+70 ℃.
Sensor housing thread: M10x1 or 3/8 "-24-UNF-2A.
Pressure resistance: 2 bar.
Vibration and impact: 5g, 60Hz.
Cable length: The sensor cable is 1 meter and can be extended by 3 meters.
Maximum temperature of cable:+ 200 ℃.
Connection: Connect with CON011/CON021 converter through LEMO plug, and connect with CON031/CON041 converter through loose release cable that can be connected with screw terminals.
Weight: Net weight 0.1kg without metal protective cover, gross weight 0.2kg; Net weight 0.3kg and gross weight 0.5kg with metal protective cover.
Working principle: The sensor and EPRO preamplifier form an oscillator. When the sensor probe is close to the metal object being measured, eddy currents are generated, which cause the amplitude of the oscillator to decay as it approaches. The decay amplitude is proportional to the distance between the sensor and the object being measured. Before leaving the factory, calibration material 42CrMo4 has been used to perform linear calibration on the sensor and EPRO preamplifier set. During installation, there is usually no need for further calibration. Users only need to adjust the air gap between the sensor and the measuring surface to obtain the desired signal from the output of the EPRO preamplifier.
Application areas: Mainly used for vibration monitoring of key equipment such as turbomachinery, gas compressors, hydro turbine machinery, blowers, etc. It can measure parameters such as shaft vibration, eccentricity, thrust (axial displacement), differential expansion, valve position, and air gap to achieve real-time monitoring and fault diagnosis of equipment operation status, ensuring safe and stable operation of equipment.
