EPRO PR6424/000-030+CON021 Eddy Current Sensor
EPRO PR6424/000-030+CON021 Eddy Current Sensor
Origin: Germany
Brand: EPRO

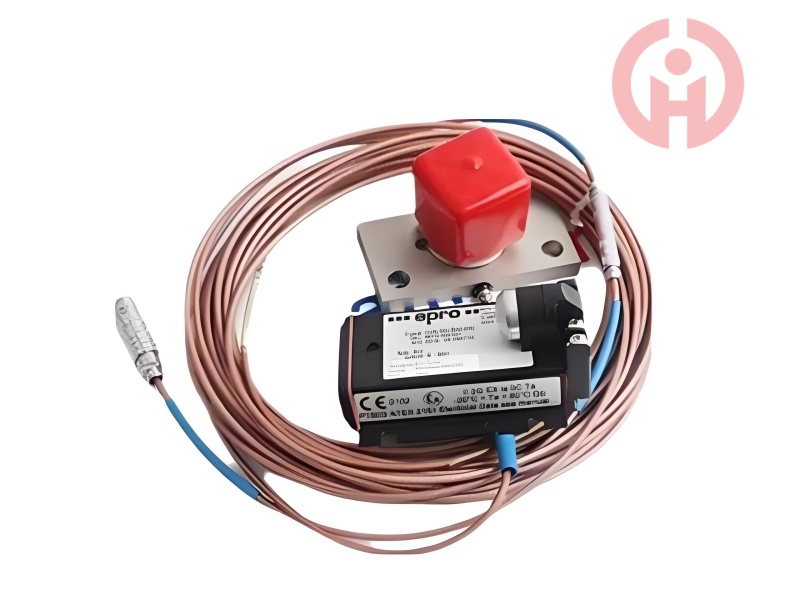

The EPRO PR6424/000-030+CON021 eddy current sensor consists of a PR6424/000-030 sensor probe and a CON021 signal converter
We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.
24-hour service for you
Related products
Product Introduction
technical parameter
Measurement range: static ± 2.0mm; Dynamic 0-1000 μ m
Sensitivity/linearity: 4V/mm (101.6mV/mil) ≤± 1.5%
Central air gap: approximately 2.7mm
Long term drift:< 0.3%
Target material: Ferromagnetic steel (42CrMo4 standard)
Maximum surface velocity: 2500m/s
Shaft diameter: ≥ 80mm
Working temperature:- 35-150℃
Temperature error: < 4%/100 ° K (compliant with API 670 standard)
Voltage resistance: 10000hPa
Resistance to impact and vibration: At 25 ℃, 5g@60Hz
Material: The sleeve is made of stainless steel, and the cable is made of polytetrafluoroethylene
CON021 Signal Converter
essential information
Brand: EPRO (now a brand under Emerson)
model: CON021
Weight: 120 grams
technical parameter
Frequency range (-3dB): 0-20000Hz
Rise time:< 15μs
Working temperature range:- 30-100℃
Power supply voltage range: -23V to -32V when the output range is -4V to -20V; When the output range is -2V to -18V, it is -21V to -32V
Connection: The sensor is a self-locking Lemo plug, and the power/output is a screw terminal type (maximum 1.5mm ² wire)
working principle
Sensors work by utilizing the eddy current effect. When the sensor approaches a metal object, eddy currents are generated on the surface of the object, which interact electromagnetically with the measuring coil of the sensor, causing changes in the electrical characteristics (such as impedance) of the coil. Sensors infer relevant parameters such as distance, displacement, and thickness between metal objects and sensors by measuring these changes.
application area
Commonly used in the field of industrial automation, such as key turbine machinery such as steam, gas, and water turbines, compressors, pumps, and fans, it can measure radial and axial shaft dynamic displacement, position, eccentricity, and velocity parameters. It can also be used for material thickness measurement, defect detection of conductive materials, and other scenarios.
Many products are not yet on the shelves please contact us for more products.
If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will
arrange to take pictures in the warehouse to confirm!
