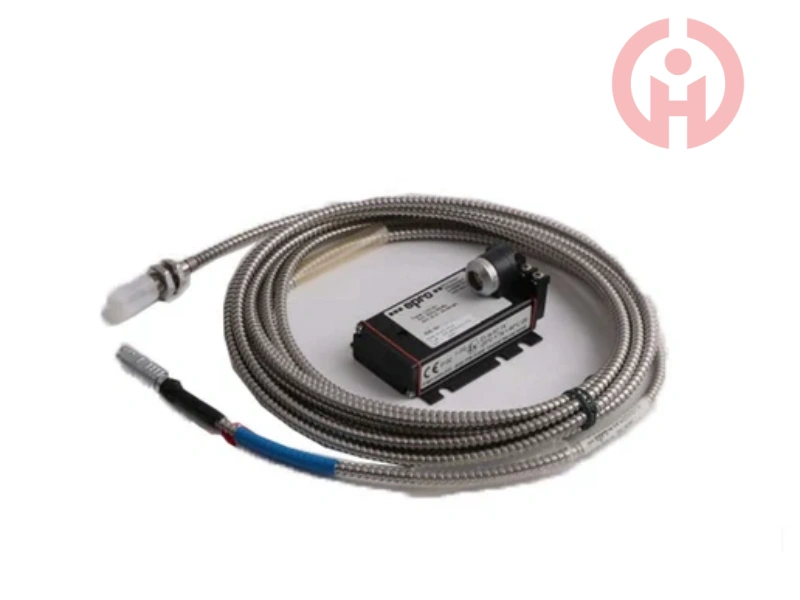

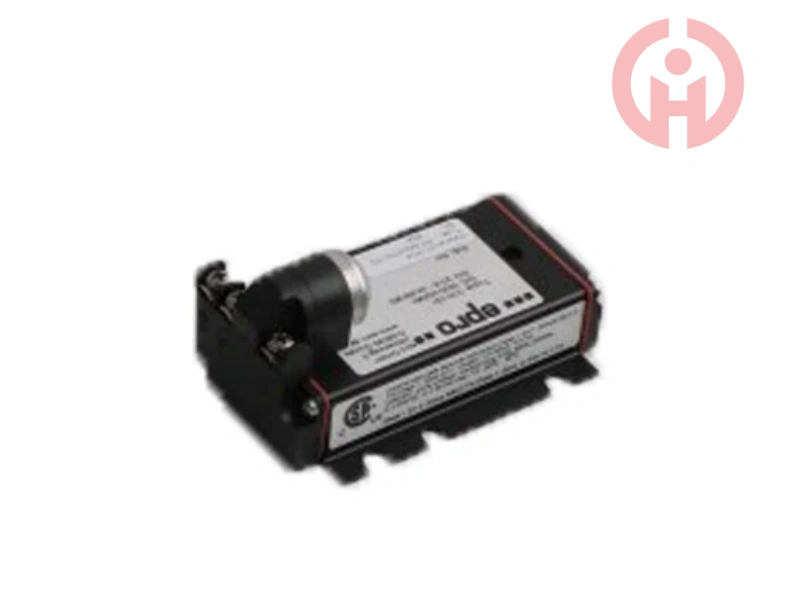

Product Introduction
technical parameter
Probe diameter: 16mm, common specifications in the same series.
Sensitivity: around 4V/mm.
Measurement range: The static measurement range is around ± 2.0mm; The dynamic range can be 0-1000 μ m.
Air gap: The central air gap is around 2.7mm.
Material of the tested object: Suitable for ferromagnetic steel, such as 42Cr-Mo4 standard material.
Minimum shaft diameter: usually ≥ 80mm.
Working temperature: generally -35-180 ℃.
Thread specification: M18x1.5.
Product Features
Non contact measurement: Based on the eddy current effect, it does not require direct contact with the measured object, avoiding wear on the surface of the measured object, and is not affected by the motion state of the measured object. It can be accurately measured without interfering with the measured object.
High precision and high reliability: able to accurately detect small displacement changes, providing accurate data for equipment operation status monitoring; Using high-quality materials and advanced manufacturing processes, it can work stably in harsh industrial environments, has strong anti-interference ability, and reduces measurement errors and data fluctuations.
Wide working range: It can adapt to different measurement needs, measure various parameters of the rotating shaft, such as radial and axial displacement, vibration, eccentricity, etc., and has a wide range of adaptability to the speed and frequency of the measured object.
Fast response speed: It can quickly track the dynamic changes of the measured object, output measurement signals in a timely manner, accurately capture the instantaneous state changes of the measured object, and is suitable for measuring objects that rotate or vibrate at high speeds.
Compliant with international standards: Manufacturing and use comply with various international universal standards such as API 670, DIN 45670, ISO 10817-1, etc., making it easy to apply in industrial projects in different countries and regions, and ensuring compatibility with other standard compliant equipment and systems.
application area
Similar to other products in the PR6424 series, it is mainly used for condition monitoring of various key turbine machinery, such as steam, gas, and hydraulic turbines, compressors, pumps, and fans. It can be used to measure the radial and axial dynamic displacement, position, eccentricity, and speed/key phase of rotating shafts, thereby achieving real-time monitoring and fault diagnosis of equipment operation status, detecting potential problems in advance, ensuring the safe and stable operation of equipment, reducing downtime and maintenance costs.
