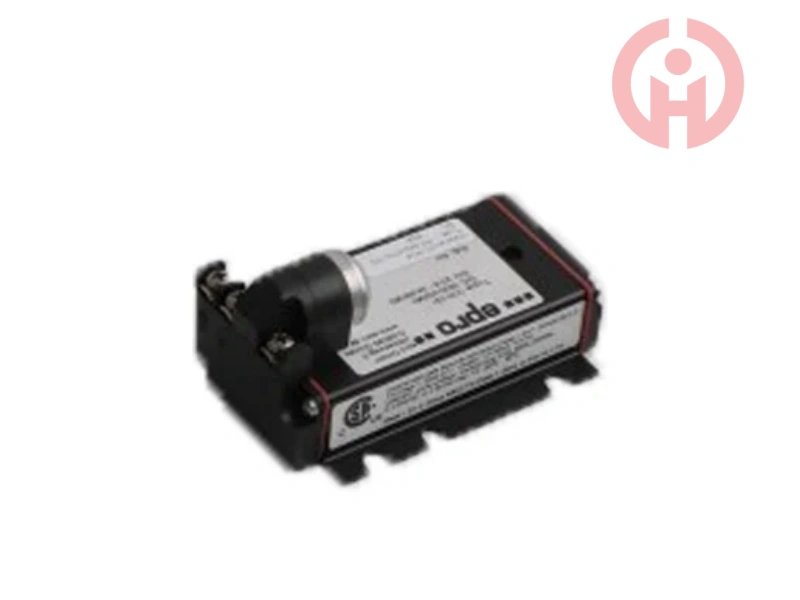

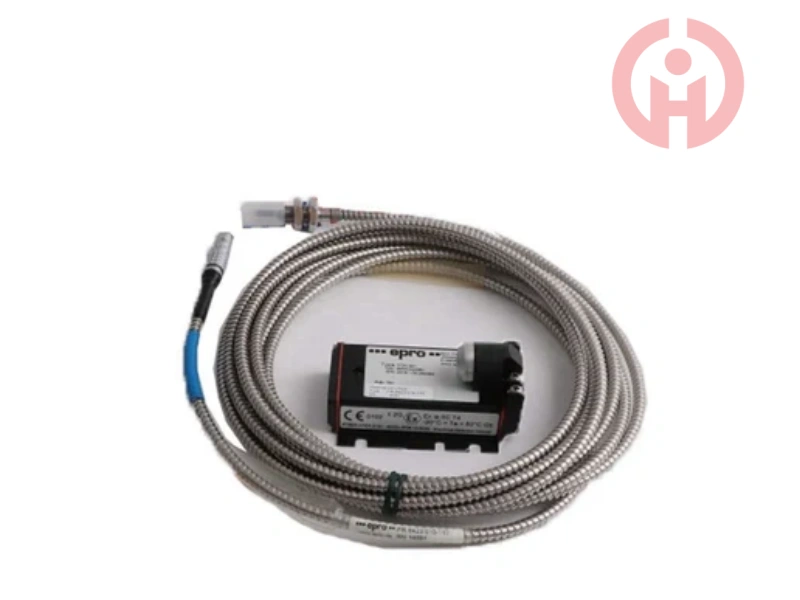

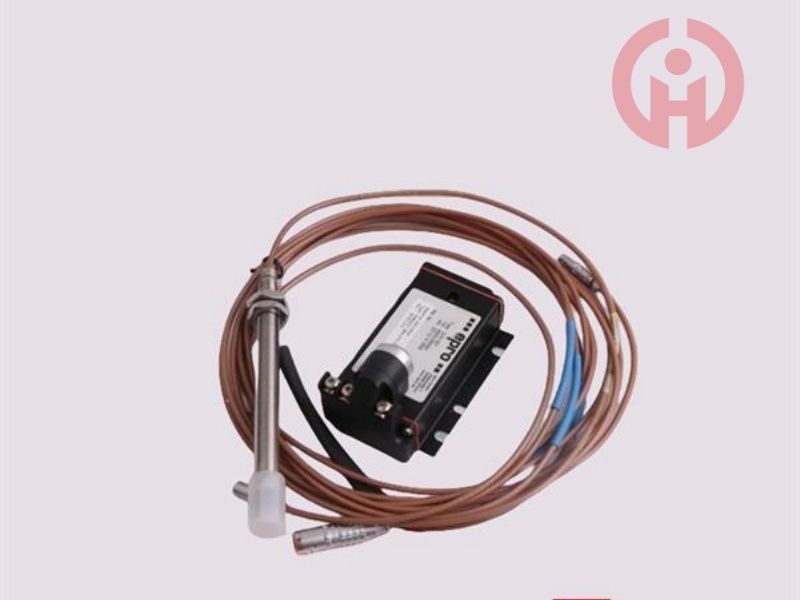

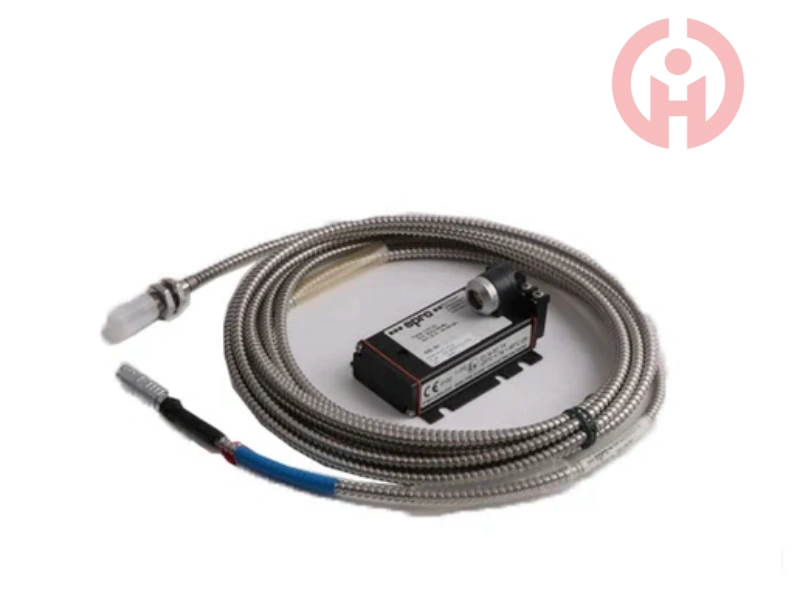

EPRO pr6424/000-000 Eddy Current Sensor

EPRO pr6424/000-000 Eddy Current Sensor



Origin: Germany



Brand: EPRO



We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.

24-hour service for you

Category:
Share

Related products




Product Introduction

technical parameter
Probe diameter: 16mm
Sensitivity/linearity: 4V/mm (101.6mV/mil), error ≤± 1.5%
Air gap (center): approximately 2.7mm (0.11 inches)


measuring range
Static: ± 2.0mm (0.079 inches)
Dynamic: 0-1000 μ m (0-0.039 inches)
Tested object/surface material: ferromagnetic steel (42Cr-Mo4 standard)
Maximum surface velocity: 2500m/s (98425ips)
Minimum shaft diameter: ≥ 80mm
Working temperature: -35~180 ℃ (-31~365 ℉)
Temperature drift: up to 200 ℃ (392 ℉) within 4 hours
Maximum cable temperature: 200 ℃
Temperature error: < 4%/100 ° K (compliant with API 670 standard)
Pressure resistance of sensor head: 10000hPa (145psi)
Shock and vibration: 5g@60Hz @25℃ (77℉)
Material: Stainless steel sleeve, PTFE cable
Weight: Sensor and 1m unarmored cable weighing approximately 200 grams (7.05 ounces)
Sleeve thread: M18x1.5


characteristic
Non contact measurement: using the principle of eddy current, it does not require direct contact with the measured object, avoiding wear and interference to the measured object, and can be used for measurement in harsh environments.
High precision and sensitivity: It can accurately measure small displacement changes, with a sensitivity of 4V/mm and good linearity, and can accurately obtain parameters such as the position of the measured object.
Wide dynamic range: The static and dynamic measurement ranges can meet the needs of displacement measurement in various application scenarios.
Strong anti-interference ability: less affected by environmental factors such as temperature and humidity, temperature error controlled within a certain range, and able to work stably in complex industrial environments.
Fast response speed: It can quickly track the dynamic changes of the measured object, output measurement signals in a timely manner, and is suitable for measuring objects that rotate or vibrate at high speeds.


application area
Mainly used in key turbomachinery equipment such as steam, gas, and hydraulic turbines, compressors, pumps, and fans, it is used to measure the radial and axial dynamic displacement, position, eccentricity, and speed/key phase of the rotating shaft, thereby monitoring the operating status of the equipment and diagnosing faults, ensuring the safe and stable operation of the equipment.
