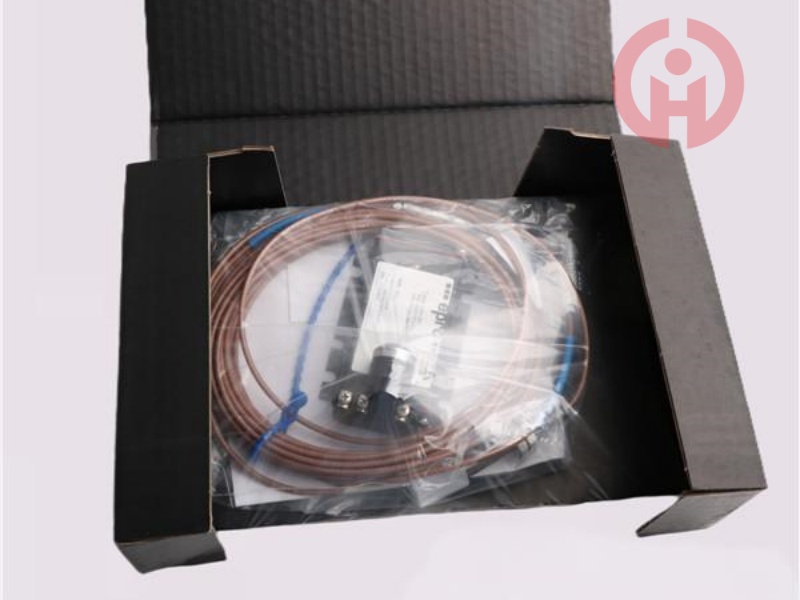

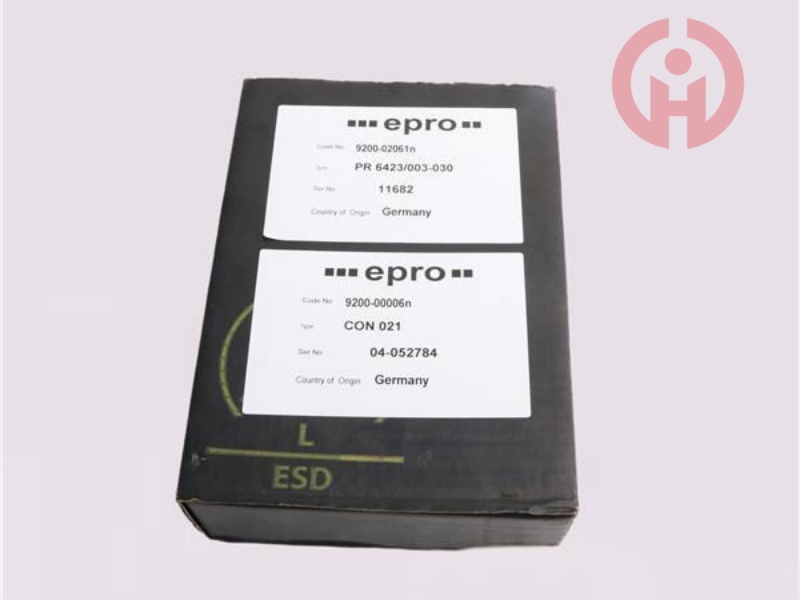

EPRO PR6423-003-030 CN+CON021 8mm Eddy Current Sensor

EPRO PR6423-003-030 CN+CON021 8mm Eddy Current Sensor



Origin: Germany



Brand: EPRO

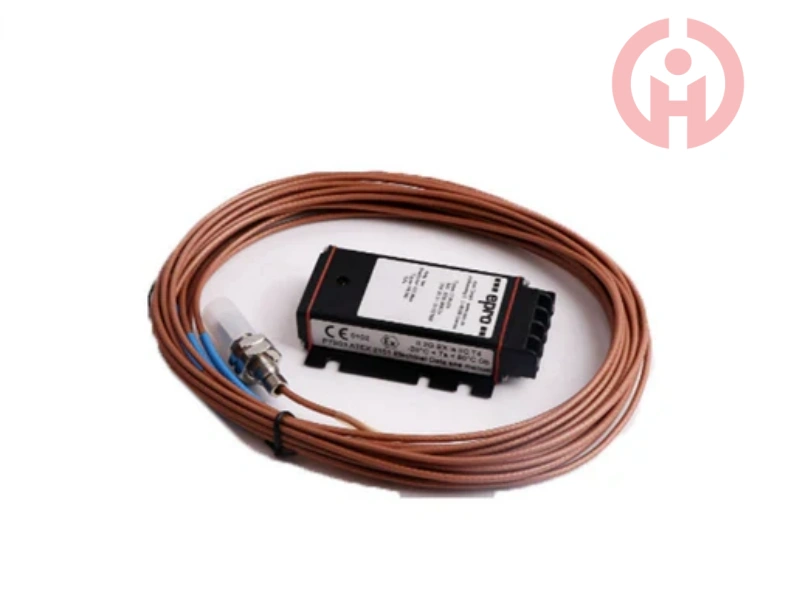

PR6423-003-030 CN Sensor Probe: With a probe diameter of 8mm, it is used to approach the object being measured and detect changes in displacement and other aspects of the object based on the eddy current effect.
CON021 signal converter: used to convert weak signals detected by sensor probes into standard signals that can be processed and transmitted for subsequent measurement, display, and control.



We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.

24-hour service for you

Category:
Share

Related products




Product Introduction

technical parameter
Measurement range: The linear measurement range is generally 3.0mm, with an initial air gap of 0.5mm.
Accuracy related: The incremental scaling factor (ISF) is 8V/mm (203.2mV/mil) ± 5% (within the temperature range of 0 to 45 ° C); The best fit line deviation (DSL) is ± 0.025mm (± 1mil) within the temperature range of 0 to 45 ° C.
Frequency range: The frequency range (-3dB) of the CON021 signal converter is from 0 to 20000Hz.
Minimum shaft diameter: The measurable minimum shaft diameter is 25mm.
Temperature range: Sensor (including 1m cable) is -35 to+200 ° C; Cables and connectors are at -35 to+150 ° C; The CON021 signal converter operates at -30 to 100 ° C.
Protection level: The sensor is IP66, and the CON021 signal converter is IP20.
Electrical characteristics: The power supply voltage range of CON021 signal converter is -23V to -32V (output range is -4V to -20V), with a rise time of less than 15 μ s.


Product Features
High precision: It can accurately measure parameters such as radial and axial dynamic displacement, position, eccentricity, and velocity of the shaft, and can be applied to industrial scenarios that require extremely high measurement accuracy.
Strong environmental adaptability: It can work in a wide temperature range of -35 to+200 ° C, with high protection level, and can adapt to harsh industrial environments.
Good compatibility: CON021 can be used in conjunction with various EPRO sensors (such as PR6423, PR6424, PR6425, PR6426).
Fast response speed: The rise time of CON021 signal converter is less than 15 μ s, which can quickly and accurately convert and process measurement signals.
Application areas: Suitable for measuring and monitoring shaft displacement, shaft vibration, shaft eccentricity and other parameters of rotating machinery such as steam turbines, gas turbines, water turbines, compressors, gearboxes, pumps and fans, providing important data support for the safe and stable operation of equipment.



Many products are not yet on the shelves please contact us for more products.



If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
