Product Introduction

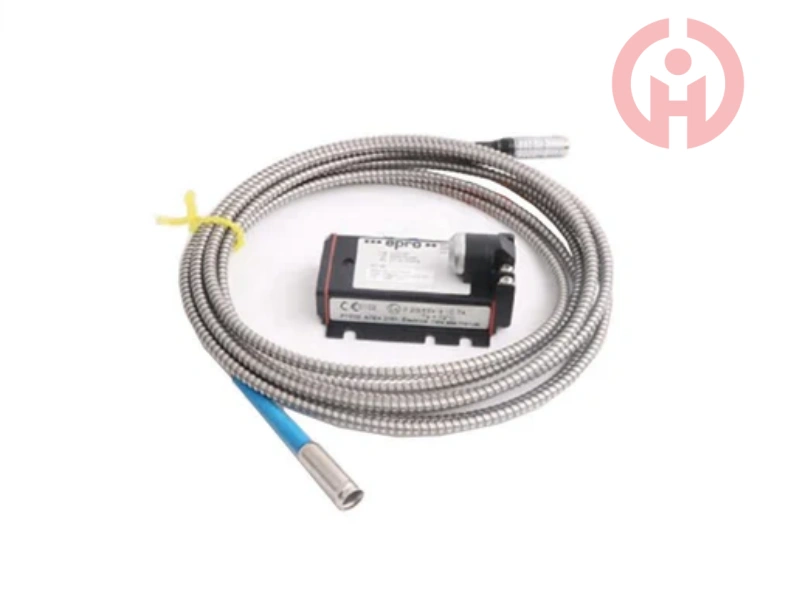

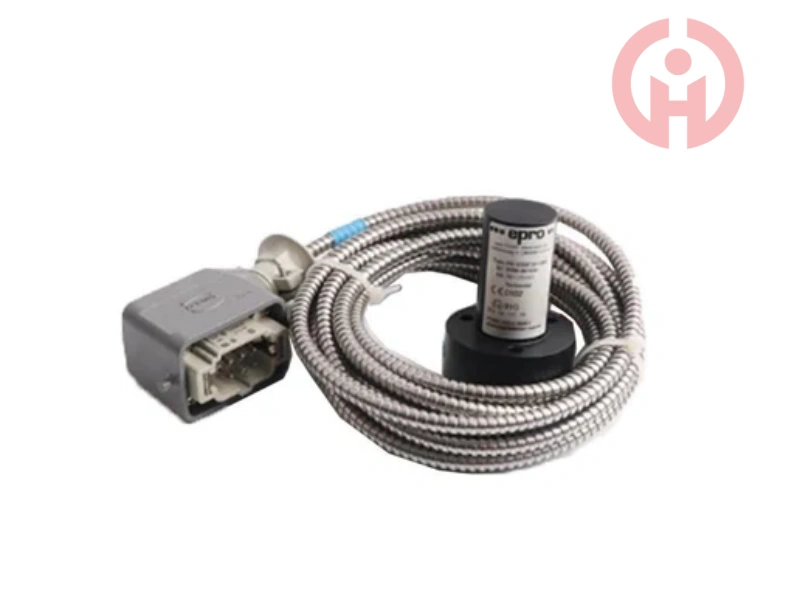

Product composition: Belonging to the epro shaft vibration sensor, it consists of three parts: sensor, extension line, and preamplifier.

Product Features
Measurement function: Used to measure mechanical vibrations in the frequency range of 10... 1000Hz and 4... 1000Hz, it can provide a voltage signal proportional to the vibration speed, and measure large amplitudes up to 2mm or even 3mm (peak to peak).
Working principle: Electric working principle.
Installation features: Easy to install, sturdy structure, suitable for various harsh environments, and can operate at temperatures up to 200 ° C.
Protection performance: The waterproof protection level is IP55 or IP65.
Explosion proof level: The explosion-proof level of the connected safety barrier (zone 1) is EEx ib II B/II C, and the barrier Ex can be used to achieve the ATEX level.
System compatibility: It is part of the MMS 6000 and MMS 3000 rotating machinery monitoring and protection systems.

Installation parameters
Thread form: There are two sizes to choose from: metric M10 * 1 and imperial 3/8 "-24UNF.
Thread length: Used to adjust the distance between the probe surface and the bracket during installation, and the appropriate length can be selected according to the installation space.
Extension line: An extension line with a joint at 1m can be selected for easy installation. If a sleeve type bracket is used, a sensor with a middle joint should be selected.
Pre processor: Choose the standard pre processor CON021.
Application areas: Widely used for vibration measurement and monitoring of various turbomachinery, fans, compressors, gearboxes, water pumps, coal mining machines and other equipment, which can effectively ensure the stable operation and safety of the equipment.
