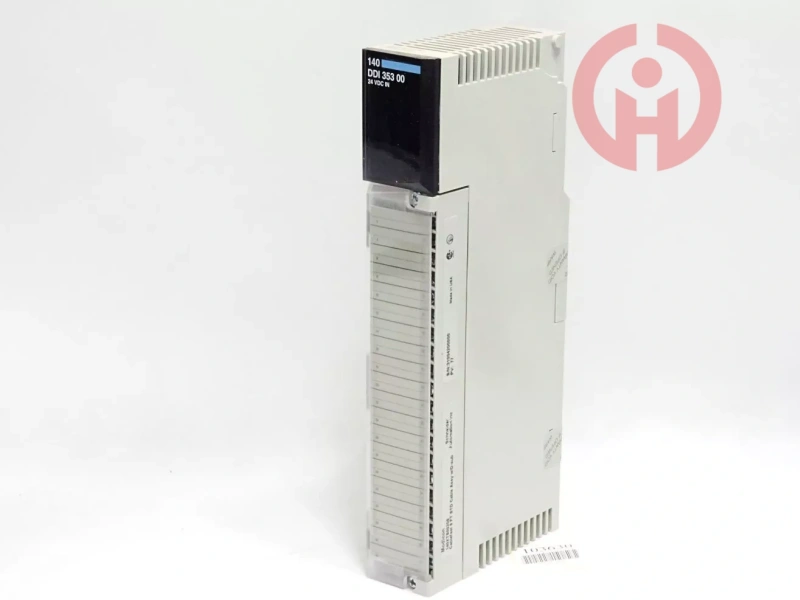

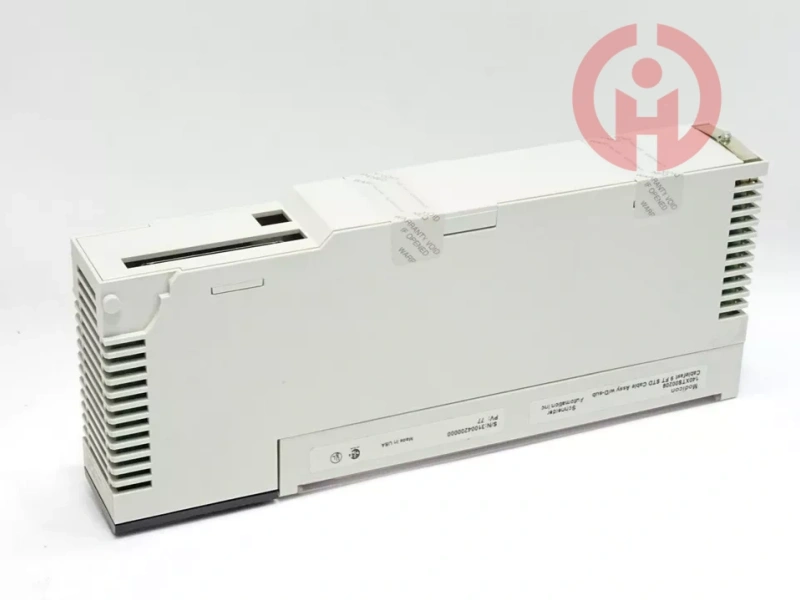

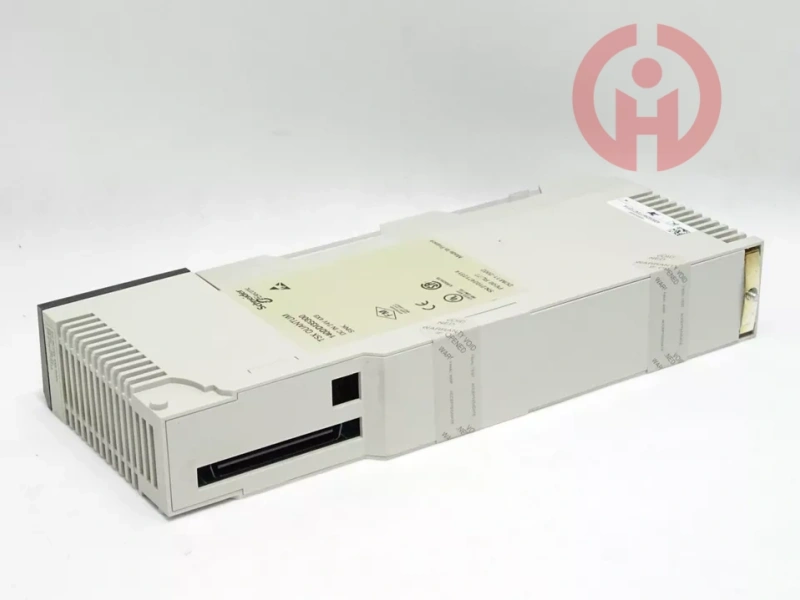

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeLow voltage dc discrete input modules

Discrete input number32

ComplementaryGroup of channels4

Logic inputPositive (sink)

Discrete input voltage24 V DC

Input voltage limits19.2...30 V

Voltage state 1 guaranteed15...30 V DC

Voltage state 0 guaranteed-3...5 V DC

Current state 1 guaranteed>= 2 mA at Us = 5.5 V and Uin = 0 V

Current state 0 guaranteed<= 0.5 mA

Addressing requirement2 input words

Input impedance2500 Ohm

Maximum leakage current200 mA at Us = 5.5 V and Uin = 4 V

Absolute maximum input30 V continuous

56 V during 1.3 ms decaying pulse

Response Time<= 1 ms from state 0 to state 1

<= 1 ms from state 1 to state 0

Protection TypeInput protection by resistor limited

Power dissipation1.7 W + (0.36 x number of points on)

Isolation between group and bus1780 Vrms for 1 minute

Isolation between group500 Vrms for 1 minute

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

MarkingCE

Bus current requirement330 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationsC-tick

DNV

RINA

RMRS

BV

GOST

ABS

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)

Ordering and shipping detailsCategoryUS1PC2118155

Discount SchedulePC21

GTIN3595861133815

ReturnabilityYes

Country of originUS

Packing UnitsUnit Type of Package 1PCE

Number of Units in Package 11

Package 1 Height1.83 in (4.65 cm)

Package 1 Width6.48 in (16.45 cm)

Package 1 Length12.19 in (30.97 cm)

Package 1 Weight14.4 oz (409.2 g)
