Product Introduction

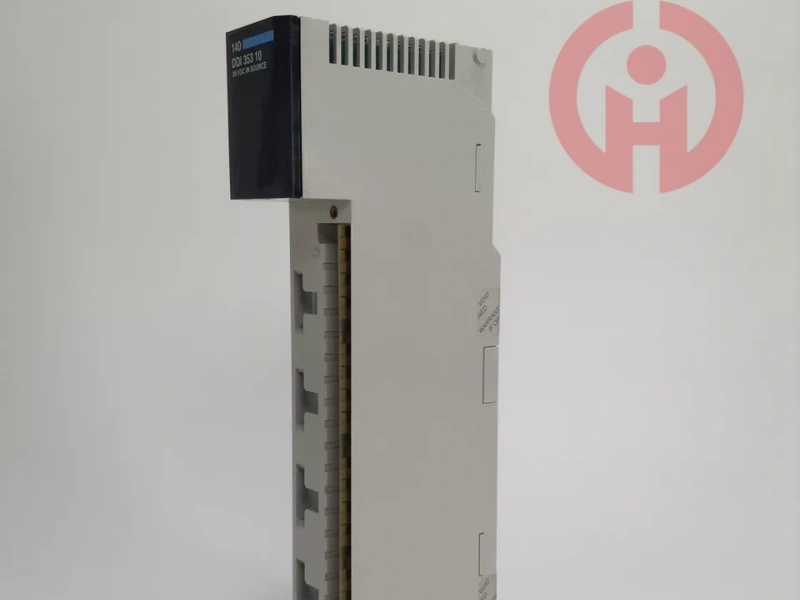

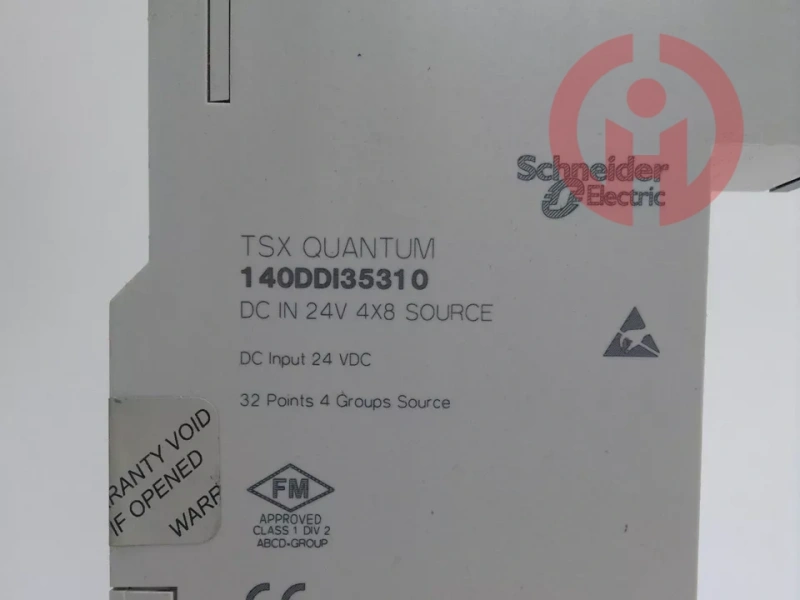

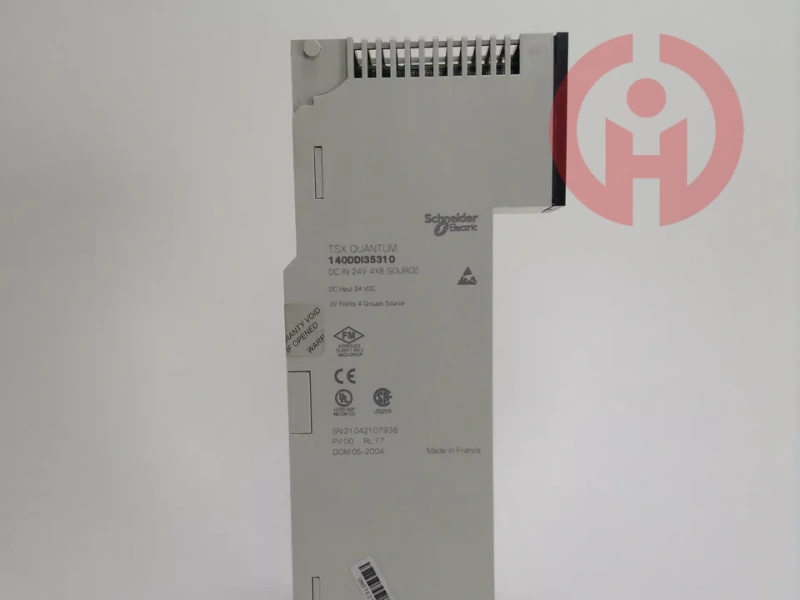

Range of ProductModicon Quantum automation platform

Product or Component TypeLow voltage dc discrete input modules

Discrete input number32

ComplementaryGroup of channels4

Logic inputNegative (source)

Discrete input voltage24 V DC

Input voltage limits19.2...30 V

Voltage state 1 guaranteed-30...-15 V DC

Voltage state 0 guaranteed-5...0 V DC

Current state 1 guaranteed>= 2.5 mA at Us = - 14 V

Current state 0 guaranteed<= 0.5 mA

Addressing requirement2 input words

Input impedance2400 Ohm

Maximum leakage current200 mA at Us = 5.5 V and Uin = 4 V

Absolute maximum input30 V continuous

50 V during 1 ms decaying pulse

Response Time<= 1 ms from state 0 to state 1

<= 1 ms from state 1 to state 0

Protection TypeInput protection by resistor limited

Power dissipation1.5 W + (0.26 x number of points on)

Isolation between group and bus1780 Vrms for 1 minute

Isolation between group500 Vrms for 1 minute

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

MarkingCE

Bus current requirement330 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsRINA

GOST

FM Class 1 Division 2

C-tick

RMRS

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)

Many products are not yet on the shelves please contact us for more products.

If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
