Product Introduction

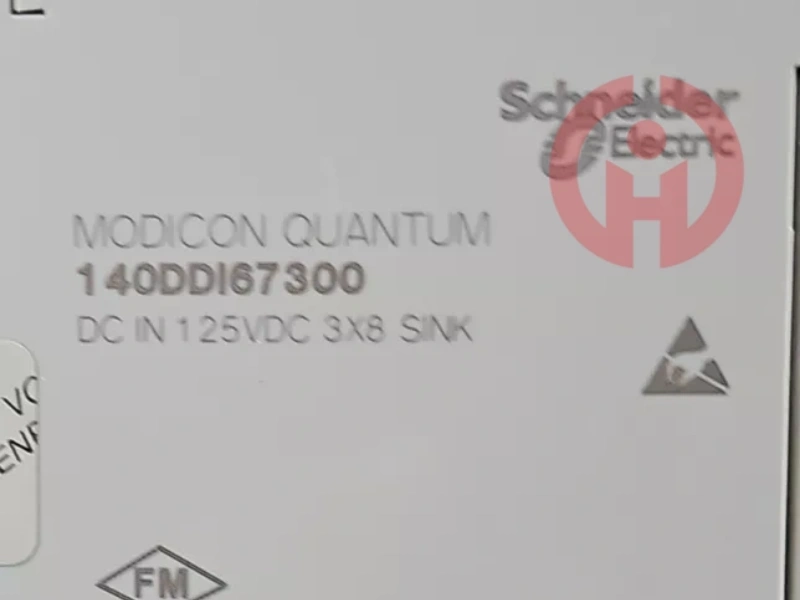

Range of ProductModicon Quantum automation platform

Product or Component TypeDc discrete input modules

Discrete input number24

ComplementaryGroup of channels3

Logic inputPositive (sink)

Input voltage limits88...150 V

Input voltage125 V 2.5 mA DC

Absolute maximum voltage156.25 V including ripple

Addressing requirement2 input words

Response Time0.7 ms from state 0 to state 1

0.7 ms from state 1 to state 0

Isolation between group and bus2500 Vrms DC for 1 minute

Isolation between group700 Vrms DC for 1 minute

Power dissipation1 W + (0.62 x number of points on)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 24 LEDs (green)

Bus current requirement200 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsC-tick

FM Class 1 Division 2

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
