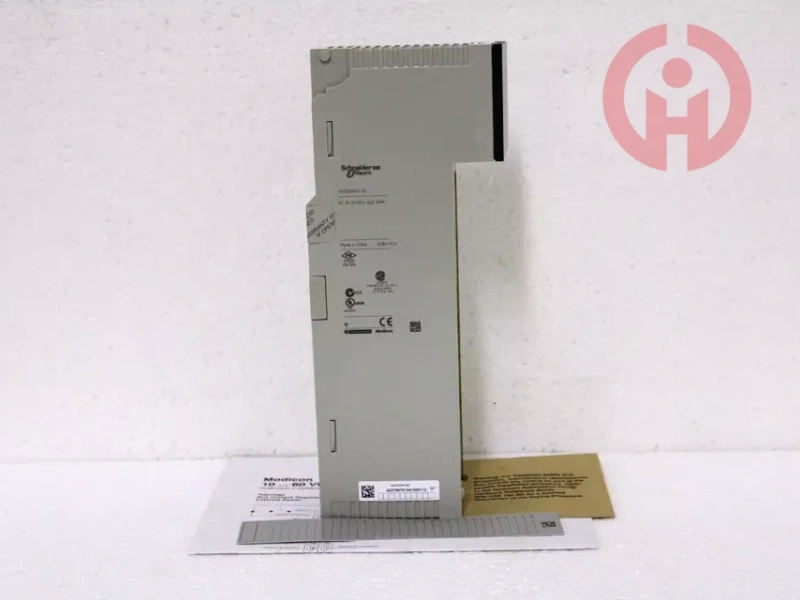

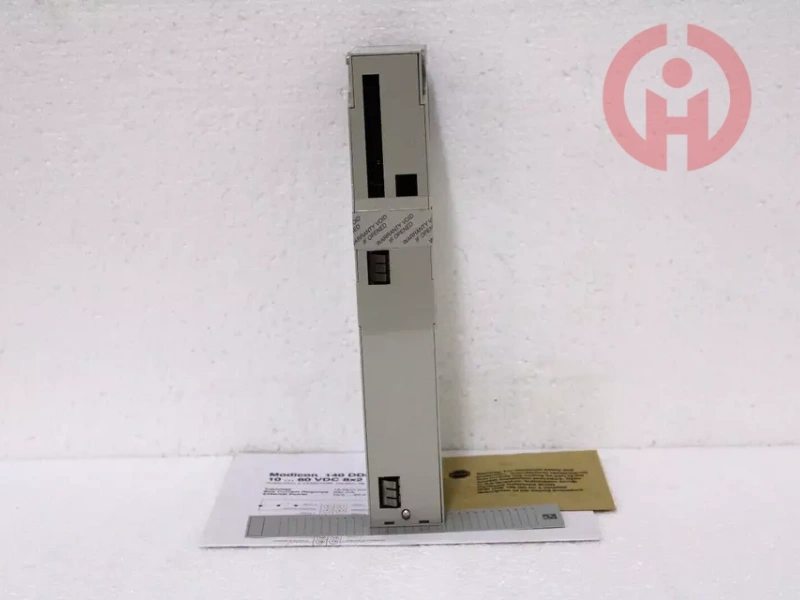

Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeDc discrete input modules

Discrete input number16

ComplementaryGroup of channels8

Logic inputPositive (sink)

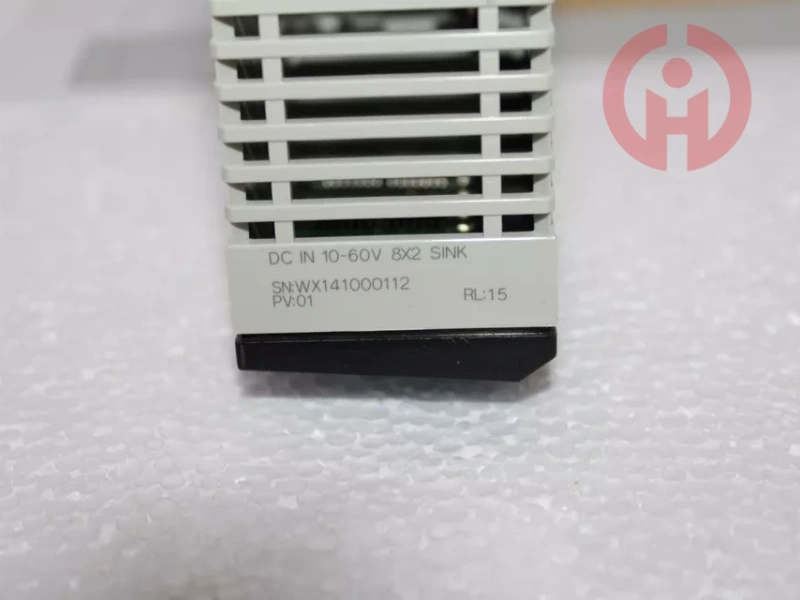

Input voltage limits10...60 V

Input voltage12 V 5…10 mA DC

24 V 6…30 mA DC

48 V 2…15 mA DC

60 V 1…5 mA DC

Voltage state 1 guaranteed11...24 V 24 V +/- 20 %

34...48 V 48 V +/- 20 %

45...60 V 60 V +/- 20 %

9...12 V 12 V +/- 5 %

Voltage state 0 guaranteed0...1.8 V 12 V +/- 5 %

0...10 V 48 V +/- 20 %

0...5 V 24 V +/- 20 %

0...9 V 60 V +/- 20 %

Absolute maximum voltage75 V

Addressing requirement1 input word

Response Time4 ms from state 0 to state 1

4 ms from state 1 to state 0

Switching frequency<= 100 Hz

Isolation between group and bus2500 Vrms DC for 1 minute

Isolation between group700 Vrms DC for 1 minute

Power dissipation1 W + (0.62 x number of points on)

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 16 LEDs (green)

Bus current requirement200 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsUL 508

CSA C22.2 No 142

Product CertificationsFM Class 1 Division 2

C-tick

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
