Product Introduction

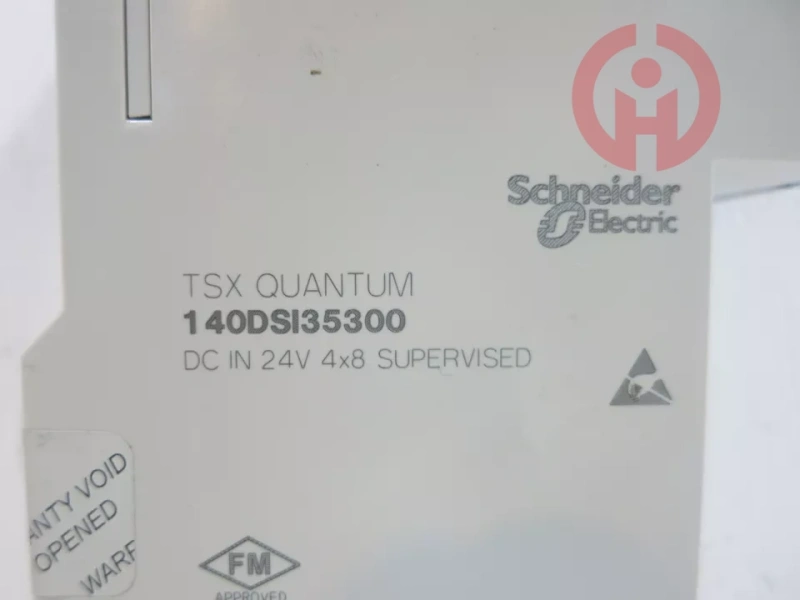

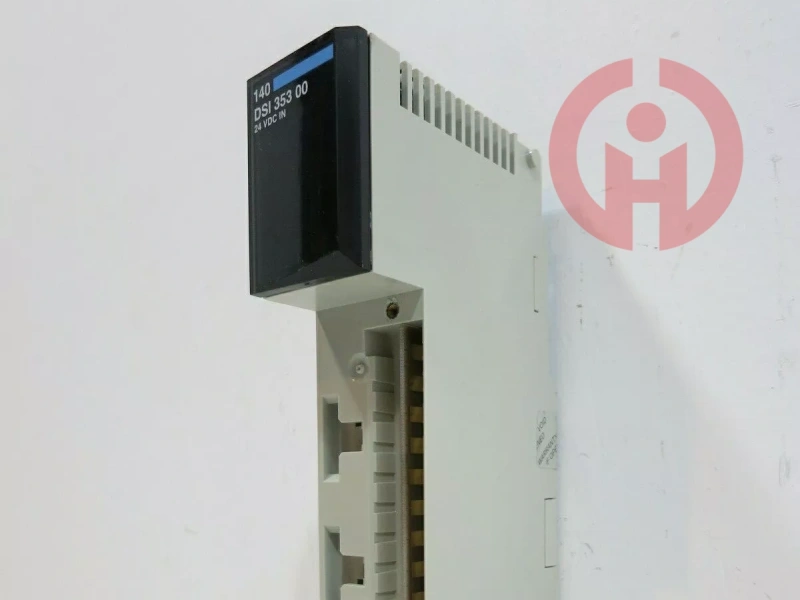

Range of ProductModicon Quantum automation platform

Product or Component TypeLow voltage dc discrete input modules

Discrete input number32

ComplementaryGroup of channels4

Logic inputPositive (sink)

Discrete input voltage24 V DC

Input voltage limits20...30 V

Voltage state 1 guaranteed>= 11 V DC

Voltage state 0 guaranteed<= 5 V DC

Current state 1 guaranteed>= 2.5 mA

Current state 0 guaranteed<= 1.2 mA

Addressing requirement4 input words

Absolute maximum input45 V during 10 ms decaying pulse

Response Time2.2 ms from state 0 to state 1

3.3 ms from state 1 to state 0

Isolation between group and bus1780 Vrms for 1 minute

Isolation between group500 Vrms for 1 minute

ChecksBroken wire detection

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault detected (F) 1 LED (red)

for input status 32 LEDs (green)

MarkingCE

Bus current requirement250 mA

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentStandardsCSA C22.2 No 142

UL 508

Product CertificationsFM Class 1 Division 2

C-tick

ABS

Resistance to electrostatic discharge4 kV contact IEC 801-2

8 kV on air IEC 801-2

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)
