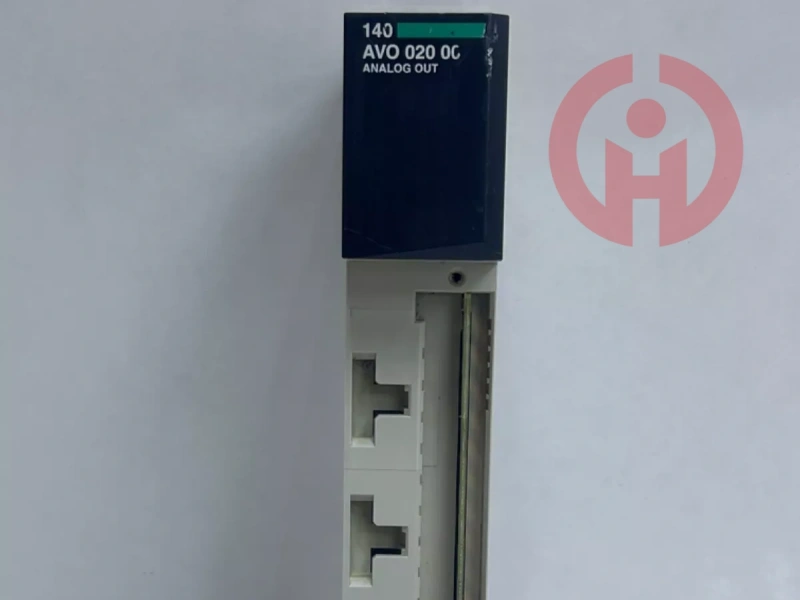

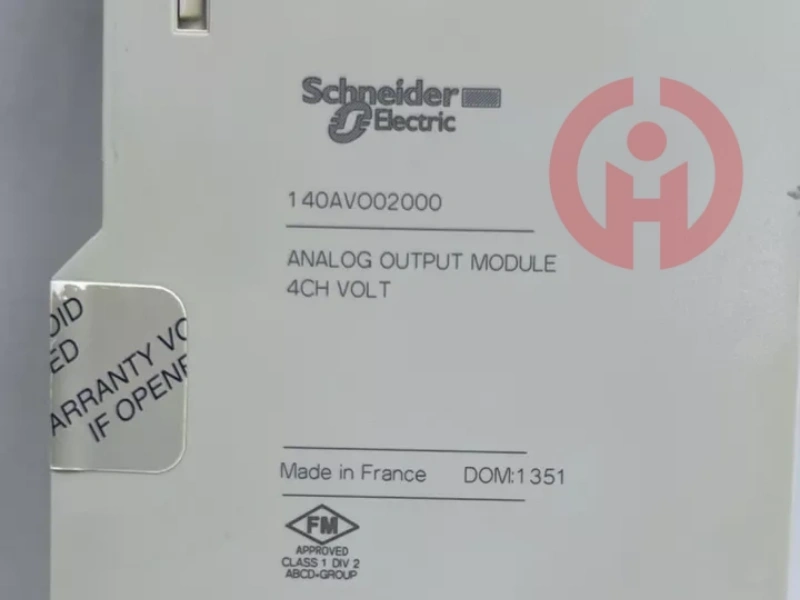

SCHNEIDER 140AVO02000 analog output module

SCHNEIDER  analog output module


Origin: France



Brand: Schneider


The Schneider 140ACO13000 Analog Output Module is an analog output module manufactured by Schneider Electric, belonging to the Modicon Quantum ExoStruxure control series. This module is mainly used for controlling and monitoring current, with eight analog output channels suitable for 4-20mA, 0-20mA, and 0. Schneider 140AVO02000 analog output module is a high-performance analog output module mainly used in industrial automation control systems.


We have a large amount of inventory in our warehouse. Welcome to inquire online about any model and quantity, with discounted prices.

24-hour service for you

Category:
Share

Related products




Product Introduction

Range of ProductModicon Quantum automation platform

Product or Component TypeAnalogue output module

ComplementaryAnalogue output number4

Addressing requirement4 output words

Analogue output range+/- 10 V >= 1000 Ohm bipolar voltage

+/- 5 V >= 500 Ohm bipolar voltage

0...10 V >= 1000 Ohm unipolar voltage

0...5 V >= 500 Ohm unipolar voltage

Analogue output resolution12 bits

Analogue output current-10…10 mA

Source resistance0.1 Ohm

Maximum cable distance between devices1312.3 ft (400 m)

Absolute accuracy error+/- 0.15 % of full scale 77 °F (25 °C)

Linearity+/- 1 LSB

Accuracy drift according to temperature0.003 % of full scale/°C unipolar

0.004 % of full scale/°C bipolar

0.005 % of full scale/°C maximum unipolar

0.007 % of full scale/°C maximum bipolar

Isolation between channels500 V for 1 minute 47...63 Hz AC

Isolation between channels and bus780 V for 1 minute AC

Update time3 ms

Setting time700 µs to +/- 0.1 % of the final value maximum

Bus current requirement700 mA

Maximum power dissipation in W4.5 W

Associated fuse rating0.063 mA 3 AG fast blow 250 V

MarkingCE

Local signallingfor bus communication is present (Active) 1 LED (green)

for external fault 1 LED (red)

for channel is turned on 4 LEDs (green)

for channel fault 4 LEDs (red)

Module formatStandard

Net Weight0.7 lb(US) (0.3 kg)

EnvironmentProduct CertificationsFM Class 1 Division 2

cUL

StandardsUL 508

CSA C22.2 No 142

Resistance to electromagnetic fields9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient Air Temperature for Operation32…140 °F (0…60 °C)

Ambient Air Temperature for Storage-40…185 °F (-40…85 °C)

Relative Humidity95 % without condensation

Operating altitude<= 16404.2 ft (5000 m)




Many products are not yet on the shelves please contact us for more products.



If there is inconsistency between the product model and the display picture, the model shall prevail, please contact us for specific product pictures, we will

arrange to take pictures in the warehouse to confirm!
