Product Introduction

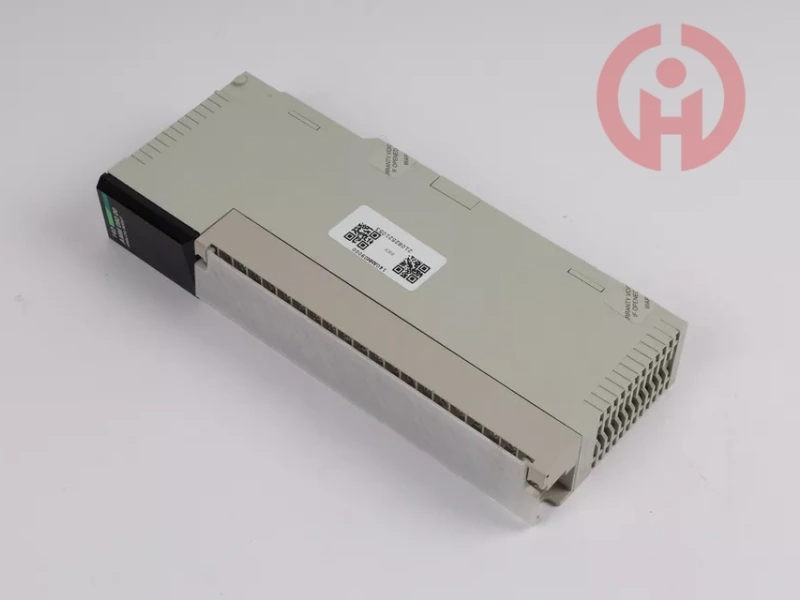

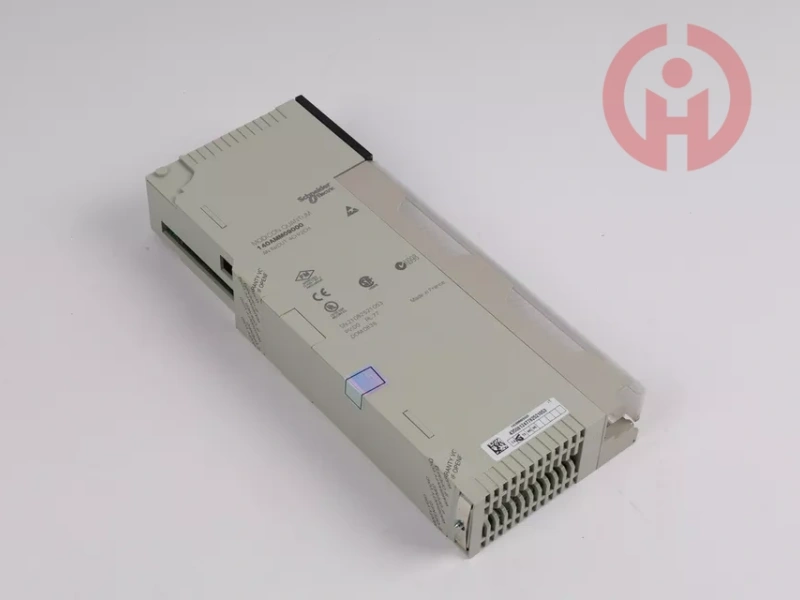

Range of ProductModicon Quantum automation platform

Product or Component TypeInput/output analog module

Type of filterSingle pole low pass - 3 dB at 21 Hz +/- 20 % input circuit

ComplementaryI/O modularity6 channels

Addressing requirement2 output words

5 input words

Analogue input number4

Analogue input typeBipolar current +/- 20 mA 15 bits DC

Bipolar voltage +/- 10 V 16 bits DC

Bipolar voltage +/- 5 V 15 bits DC

Unipolar current 0...20 mA 15 bits DC

Unipolar offset current 4...20 mA 14 bits DC

Unipolar offset voltage 1...5 V 14 bits DC

Unipolar voltage 0...10 V 16 bits DC

Unipolar voltage 0...5 V 15 bits DC

Absolute maximum input+/- 25 mA current

+/- 50 V voltage

Input impedance> 10 MOhm voltage

> 250 Ohm current

Offset+/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit

Gain shift+/- 0.002 of full scale maximum 0...60 °C input circuit

Common mode rejection> 80 dB 50/60 Hz input circuit

Analogue output number2

Analogue output range4...20 mA

Analogue output resolution12 bits

Loop voltage0…60 V DC with external resistance output circuit

7…30 V DC output circuit

Maximum voltage drop<30 V DC 20 mA

Setting time900 µs to +/- 0.1 % of the final value output circuit

External power requirement7...30 V output circuit

Absolute accuracy error+/- 0.004 % of full scale 32…140 °F (0…60 °C) output circuit

+/- 0.007 %/°C of full scale maximum 32…140 °F (0…60 °C) output circuit

+/- 0.03 % 77 °F (25 °C) input circuit

+/- 0.05 % of full scale maximum 77 °F (25 °C) input circuit

+/- 0.20 % of full scale 77 °F (25 °C) output circuit

Linearity2.4 % over and under range voltage

2.4 % over range, and - 9.6 % under range current

Monotonic +/- 1 LSB input

Monotonic +/- 1 LSB output

Update time15 ms output circuit

320 ms input circuit

Fault typeOpen circuit input/output circuit

Overtacking scale (unipolar) input circuit

Status byte output circuit

Isolation between channels500 V AC for 1 minute

750 V DC for 1 minute

Isolation between channels and bus500 V AC for 1 minute

750 V DC for 1 minute

Isolation betw
