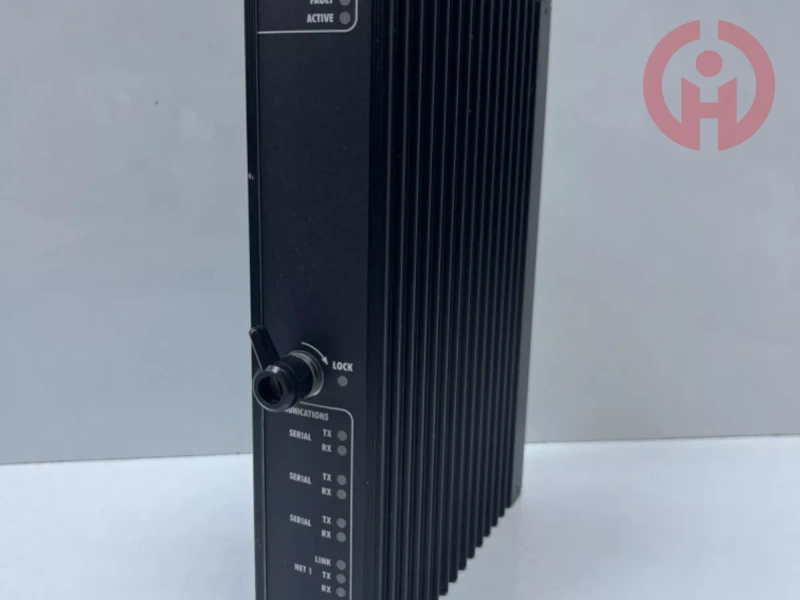

Product Introduction

parameter
Working voltage: 24V DC/120V AC
Input power interruption time: maximum 1 millisecond
Working voltage range: 24V DC-15% or+20%+5% AC ripple (19.2 to 30V DC)
Size: Approximately 16cm x 16cm x 12cm
Weight: 0.8kg
Output frequency: 50-60
Data rate: All four serial ports support a total data rate of 460.8kbps
hardware interface
Number of ports: Each module contains four serial ports, two network ports, and one debug port.
Serial port: Each serial port has a unique address and can be configured as a Modbus master or slave. Among them, serial port # 1 supports Modbus or Trimble GPS interfaces, and serial port # 4 supports Modbus or Tristation interfaces.
Network ports: Net 1 and Net 2 support TCP/IP, Modbus TCP/IP slave/master, TSA A, Tristation, SNTP, and Jet Direct (for network printing) protocols. Net 1 also supports peer-to-peer and peer-to-peer time synchronization protocols.

Functional Features
Communication compatibility: Only compatible with Tricon v10.0 and higher versions of the system, allowing Tricon to communicate with Tristation, other Tricon or Trident controllers, Modbus master-slave devices, and external hosts via Ethernet.
Multi protocol support: Supports multiple communication protocols, making it easy to connect and exchange data with different devices and systems.
Hot swappable function: Although the hot standby function is not available for this module, the faulty CM3201 module can be replaced when the controller is online.
Application restrictions
System compatibility: Can only be used in Tricon v10.0 and subsequent versions of the system, not compatible with other versions of the system.
Module quantity limit: A single Tricon system can support up to four CM3201 communication modules, which must be located in two logical slots. Communication modules of different models cannot be mixed and placed in one logical slot.
Modbus device quantity limit: Each Tricon system supports a total of 32 Modbus master or slave stations, including network ports and serial ports.

application area
Chemical industry: Used for various control systems in the chemical production process, realizing communication and data exchange between equipment, ensuring the safety and stability of the production process.
Oil and gas industry: used to connect various monitoring and control equipment in oil extraction, refining, and natural gas processing to achieve remote operation and data transmission.
Power industry: It can be applied to power facilities such as power plants and substations to achieve communication between various automation equipment in the power system, ensuring the reliable operation of the power system.
In other industrial fields such as metallurgy, papermaking, water treatment, etc., automation control systems are used for communication and data exchange between equipment to improve production efficiency and management level.
