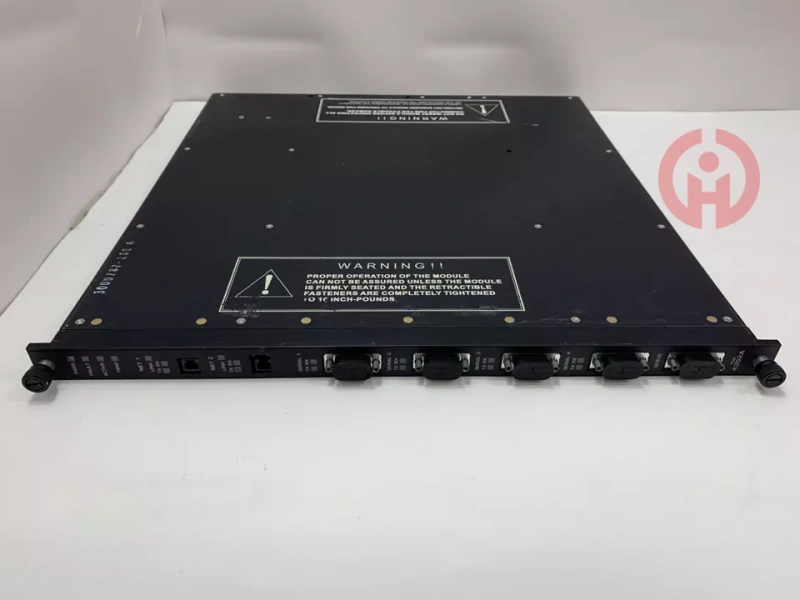

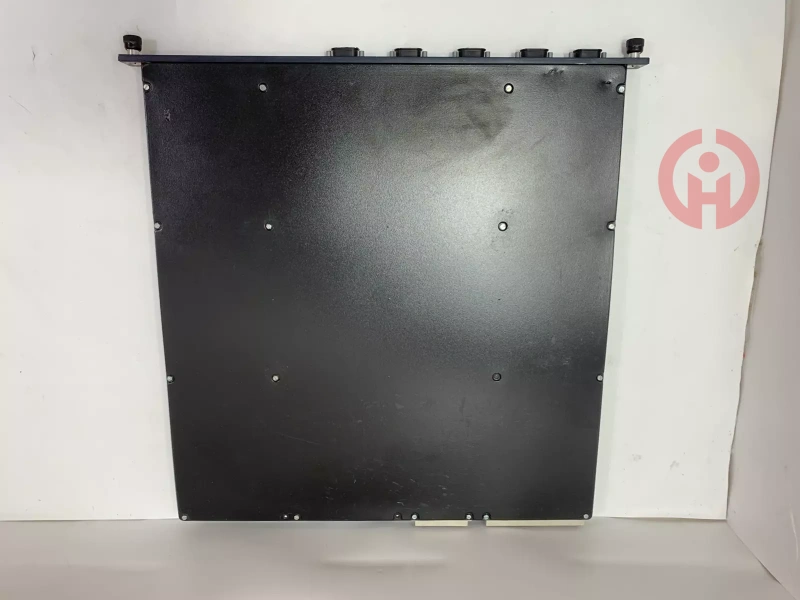

Product Introduction
hardware configuration
Application processor: SX processor is Motorola MPC860, 32-bit, 50MHz; The flash PROM is 6MB, used for SX, IOX, and control application storage, with CRC protection; DRAM is 16MB, used for SX control application execution and program, as well as SOE data byte parity check; The NVRAM is 8KB and is used as a holding variable for CRC protection.
Input/output processor: IOX processor is Motorola MPC860, 32-bit, 50MHz; DRAM is 16MB, used for IOX byte parity check; The shared memory is 128KB, used for communication with SX byte parity check; The diagnostic bus is 2Mbps HDLC, used to transmit I/O module diagnostic information between MP channels.
Electrical parameters
Nominal input voltage: 24V DC
Working voltage range: 24V DC-15%/+20%+5% AC ripple (+19.2/+30V DC)
Logic power: 8W maximum
Absolute maximum input voltage: 33V DC
Absolute maximum reverse input voltage:- 0.6V DC
physical characteristics
Weight: 1.5kg
Size: 263 × 58 × 28mm
Functional Features
High redundancy design: Adopting triple redundancy (TMR) structure, there are three identical sub circuits, each of which is independently controlled. There is also a dedicated hardware/software architecture to "vote" on inputs and outputs, ensuring that the system can still operate stably and safely in the event of partial module failures.
Real time processing capability: supports high-speed, real-time data processing and decision-making, and can adapt to high complexity and high demand control tasks.
High Security: Compliant with SIL3 security standards, suitable for critical applications that require high security.
Multiple communication interfaces: Supports multiple communication protocols such as Modbus and Ethernet, and can seamlessly integrate with other control systems or devices.
application area
Safety Instrumented System (SIS): Used to ensure process safety, equipment protection, and emergency shutdown.
Process control: widely used in industries such as petroleum, natural gas, chemical, and power, providing reliable automation control and monitoring.
Emergency Shutdown System (ESD): Perform emergency shutdown operations in critical situations to prevent catastrophic events from occurring.
Distributed Control System (DCS): Provides efficient distributed control and management to ensure the safe operation of critical equipment.
