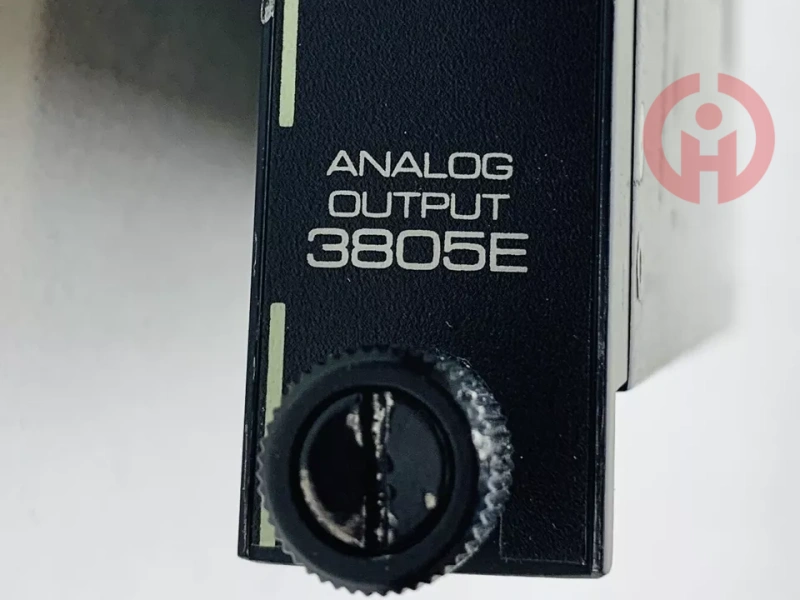

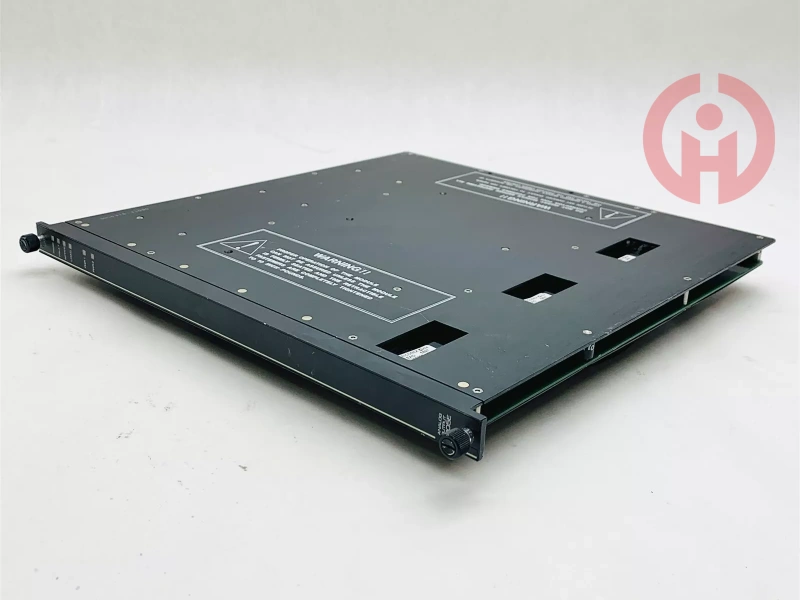

TRICONEX 3805E Analog Output Module

TRICONEX  Analog Output Module



Origin: United States



Brand: TRICONEX



TRICONEX 3805E Analog Output Module is a high-performance analog output module



We have a large amount of inventory in our warehouse. Welcome to consult any type online

Number and quantity, discounted price.

24-hour service for you

Category:
Share

Related products




Product Introduction

performance
Output current range: 4-20mA output (+6% over range)
Over range protection:+ 42.5VDC, continuous
Leg fault switching time:< 10ms, typical
performance parameter
Output points: 8
Isolation point: None, public return, DC coupling
Resolution: 12 bits
Output accuracy:< 0.25% of FSR (0-21.2mA) (within 4-20mA range), 32 ° F to 140 ° F (0 ° C to 60 ° C)
Color Code: Bean Green
physical characteristics
Size: 16.3cm × 3.8cm × 5.8cm
Weight: 0.4kg


Functional Features
Self calibration and health monitoring: The module monitors its own current output, maintains internal voltage reference, and provides self calibration and module health information.
Channel diagnosis: Each channel and circuit has continuous diagnosis. If the diagnosis fails, the faulty channel will be disabled and the fault indicator and chassis alarm will be activated. The module can still operate normally even when up to two channels are faulty.
Prevent erroneous output: The design can prevent unselected channels from driving analog signals to the field.
Open loop detection: Provided by the LOAD indicator, the indicator will activate when the module is unable to drive current to one or more outputs.
Redundant power supply support: Provides redundant circuit power supply, with independent power supply and fuse indicators PWR1 and PWR2.
Application areas: Widely used in industries such as petrochemicals, refining, oil and gas, chemicals, electricity, rail transportation, aerospace, nuclear industry, etc. It has a wide range of applications in device safety interlock systems ESD, steam turbine control, gas turbine control, compressor anti surge control, offshore oil platforms, fire and gas monitoring and protection (F&G), etc
