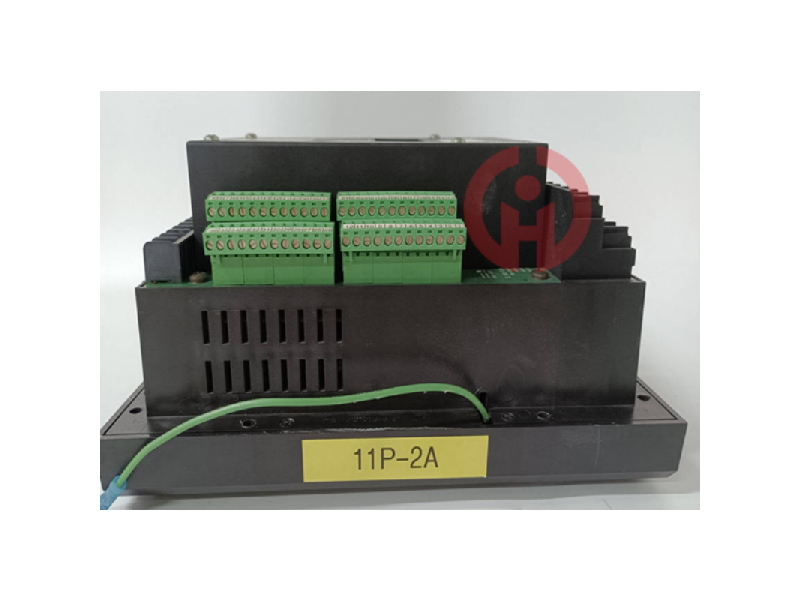

GE Multilin 369 | 369-HI-R-0-0-0 | Motor Management Relay

The 369-HI-R-0-0-0 General Electric Motor Management Relay is a high performance device designed to protect and control general electric motors. It provides comprehensive motor protection features and supports advanced communication options for remote monitoring.

Category:
G GE
Share

Related products




Product Introduction

GE Multilin 369 | 369-HI-R-0-0-0 | Motor Management Relay. The code "GE 369-HI-R-0-0-0" refers to a specific model of the General Electric Multilin 369 series motor management relay. This relay is designed to protect and control motors and their accompanying components. It provides a range of built-in features such as metering, event logging, pre-trip alarm, motor health report and oscilloscope.

Product Description
The 369-HI-R-0-0-0 GE motor management relay is mainly used for motor protection, including various protection functions such as overcurrent, overload, short circuit, phase sequence, overheating, etc. to prevent motor damage due to faults.

Features

Provides advanced motor protection and control

Monitors motor conditions and provides alarm and trip signals

Supports communication protocols for remote monitoring

GE Multilin's 369-HI-R-0-0-0 motor management relay is designed to control and protect medium to large motors. The 369 includes protection features such as undervoltage auto restart, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, reverse rotation detection, self-test/service, trip counter, loss of RRTD communications, damaged/open RTD, shorted/cold RTD, ambient RTD, acceleration timer, mechanical jam, and more.

The 369-HI-R-0-0-0 is a motor management relay manufactured by GE Multilin. Control power is 50-300 VDC/40-265 VAC. This relay has 12 selectable RTD inputs. This unit does not include metering or backspin detection. There are no optional fiber optic ports. This relay provides protection and monitoring for three-phase motors and their associated systems. The 369 can "learn" individual motor parameters and adapt to individual applications. To increase the protection capabilities of the relay, the user can adjust the motor inrush current, cool down rate, and/or acceleration time. If you have any questions about this part or series, please contact AX Control.

The relay's protection features include automatic restart on undervoltage, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, reverse rotation detection, self-test/service, trip counter, loss RRTD communication, damaged/open RTD, shorted/cold RTD, ambient RTD, acceleration timer, mechanical jam, restart block (swing timer), start inhibit (available thermal capacity), thermal capacity, reactive power, master switch, differential switch, lockout, over/under frequency, alarm, number of starts per hour/time between starts, overvoltage protection, power factor, overload protection, ground fault and ground fault backup, short circuit backup, stator RTD, voltage reversal, current unbalance protection, bearing RTD, undercurrent/underpower protection, undervoltage protection, speed switch.

E Multilin's 369-HI-R-0-0-0 motor management relay is designed to control and protect medium to large motors. The 369 includes protection features such as undervoltage auto restart, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, slew detection, self-test/service, trip counter, loss of RRTD communications, disconnect/open RTD, short/low temp RTD, ambient RTD, acceleration timer, mechanical jam, and more.

The 369-HI-R-0-0-0 is a motor management relay manufactured by GE Multilin. Control power is 50-300 VDC/40-265 VAC. The relay has 12 optional RTD inputs. The unit does not include metering or slew detection. There are no optional fiber optic ports. The relay provides protection and monitoring for three-phase motors and their associated systems. The 369 can "learn" individual motor parameters and adapt to individual applications. To increase the protection capabilities of the relay, the user can adjust the motor inrush current, cool down rate, and/or acceleration time. If you have any questions about this part or series, please contact AX Control.

The relay's protection features include automatic restart on undervoltage, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, swing detection, self-test/service, trip counter, loss of RRTD communication, disconnect/open RTD, short/low temperature RTD, ambient RTD, acceleration timer, mechanical jam, restart block (rewind timer), start inhibit (available thermal capacity), thermal capacity, reactive power, master switch, differential switch, lockout, over/under frequency, alarm, number of starts per hour/time between starts, overvoltage protection, power factor, overload protection, ground fault and ground fault backup, short circuit backup, stator RTD, voltage reversal, current unbalance protection, bearing RTD, undercurrent/underpower protection, undervoltage protection, and speed switch.

GE Multilin's 369-HI-R-0-0-0 motor management relay is designed to control and protect medium to large motors. The 369 includes protection features such as undervoltage auto restart, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, spin detection, self test/service, trip counter, RRTD communication loss, RTD disconnect/open, short circuit/cold RTD, ambient RTD, acceleration timer, mechanical jam, etc.

Communications Non-isolated RS232 port, RS485 port Differential switch time delay <200 ms Size Approx: H29.6 cm x W10.7 cm x L20.5 cm Ground current Input frequency 20 to 100 Hz Overvoltage Category II Strength Nominal: 20 VA; Maximum: 65 VA Waveform capture length 3 buffers, 16 cycles for all current and voltage channels Weight Approx. 10 lbs

Product Description

The 369-HI-R-0-0-0 is a motor management relay manufactured by GE Multilin. Control power is 50-300 volts DC / 40-265 volts AC. This relay has 12 selectable RTD inputs. This unit does not include metering or underspin detection. There is no optional fiber optic port. This relay provides protection and monitoring for three-phase motors and their associated systems. The 369 can "learn" individual motor parameters and adjust to individual applications. To increase the protection capabilities of the relay, the user can adjust motor inrush current, cool down rate and/or acceleration time. If you have any questions about this part or series, please contact AX Control.

Protection features on the relay include automatic restart on undervoltage, reverse power, starter fault, kVA demand, kvar demand, kW demand, current demand, reversal detection, self-test/service, trip counter, RRTD communication loss, RTD disconnected/disconnected, RTD shorted/low temp, ambient RTD, acceleration timer, mechanical jam, restart block (reversal timer), start inhibition (available thermal capacity), thermal capacity, reactive power, master switch, differential switch, lockout, over/under frequency, alarm, starts per hour/time between starts, overvoltage protection, power factor, overload protection, ground fault and ground fault backup, short circuit and backup, stator RTD, voltage phase reversal, current unbalance protection, bearing RTD, undercurrent/underpower protection, undervoltage protection, and speed switch.

Frequently Asked Questions about the 369-HI-R-0-0-0

What metering features are available on the multi-line 369-HI-R-0-0-0 GE motor management relay?

This 369-HI-R-0-0-0 Multi-Line GE will provide protection and monitoring functions for three phase motors using monitoring of cooling rate values, motor inrush values ​​and acceleration time. As an option in the ordering process, an optional metering package can be included. This optional feature will be designated by the M code in the third position in the part number. In the case of 369-HI-R-0-0-0, a zero is found in the third position. Therefore the 369-HI-R-0-0-0 369 Motor Management Digital Relay does not come with the optional metering package. The optional metering package has the additional capability of providing VT inputs for power and voltage. This package is capable of measuring values ​​of kW, V, PF, Hz, kvar and MWhrs. The base unit comes with one analog output. This feature provides the user with three additional outputs (analog) which are configurable in nature

Does the 369-HI-R-0-0-0 Multi-Line GE have the extract option feature of the 269PLUS Multi-Line Motor Management Relay system?

The 369-HI-R-0-0-0 multi-line motor management relay and other digital relays in the 369 multi-line series do not have the ability to be pulled out for benchtop or indoor testing.

Applications
The 369-HI-R-0-0-0 GE motor management relay is widely used in various industrial automation fields, such as power, chemical, metallurgy, pharmaceutical, food processing and other industries.
