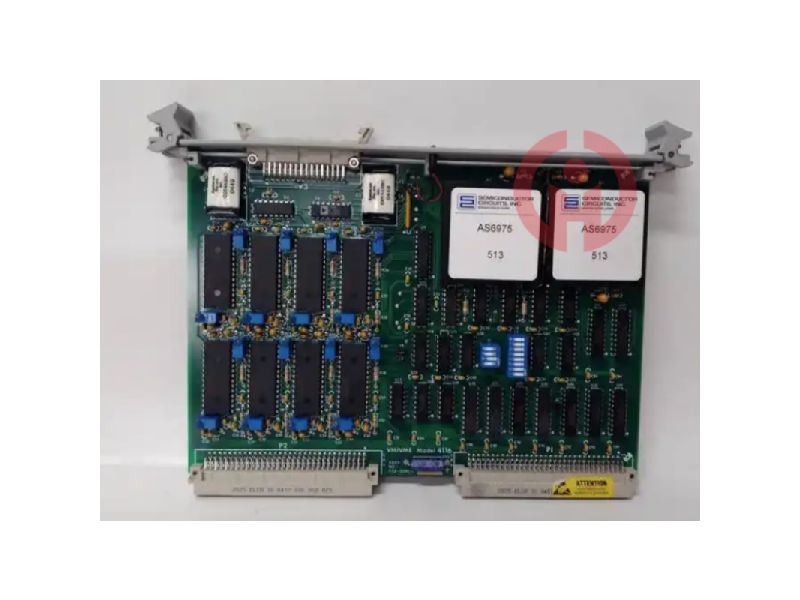

GE VMIVME2540 VMEbus 332-002540 VMIC INTELLIGENT COUNTER PCB

GE VMIVME-2540 is an intelligent counter controller developed and produced by the General Electric Industrial Automation production series. This series of products is called VMIC/GE Fanuc boards and is designed for multiple applications in industrial production lines, such as CPU management and input and output communication.

Category:
G GE
Share

Related products




Product Introduction

VMIVME-2540
The VMIVME-2540 was developed and produced by General Electric's Industrial Automation production line. These models were subsequently purchased by Abaco Systems. This series is known as the VMIC/GE Fanuc boards and is designed for multiple applications in industrial production lines, such as CPU management and input and output communications.

The VMIVME-2540 is one of the specific modules of the VMIC/GE Fanuc boards that has the capability to operate as an intelligent counter controller. The device is capable of counting up to 4 Giga events. It is equipped with a series of 24 discrete output channels that can be programmed through various on-board jumper module options. These jumpers are capable of operating at various extreme voltage levels.

The 24 output channels are designed to provide 12-bit resolution. They are capable of sourcing and sinking up to 10 mA at a rate of +/- 10 V.

For offline testing with the VMIVME-2540, the analog inputs are designed to be disconnected from the external circuitry.

The VMIVME-2540 module is designed with a VMEbus slave interface and provides 4, 8, 16 or 24 channels of digital signal measurement and signal generation capabilities. These possible measurement and signal output functions are implemented by a series of integrated system timing controllers as well as a series of related interface logic.

The GE VMIVME-2540 is a dedicated module in the VMIC/GE Fanuc board family, known for its ability as an intelligent counter controller. Designed for industrial automation, the module can accurately and reliably process up to 4 billion events. It is equipped with a VMEbus slave interface and provides flexible configurations of 4, 8, 16 or 24 channels for digital signal measurement and generation. The integrated system timing controller and related interface logic ensure seamless operation of a wide range of industrial applications. The VMIVME-2540 features the ability to disconnect the analog inputs from external circuits, thereby improving safety and performance. The module is ruggedly designed and has a high current sink capability of 600 mA, making it ideal for demanding industrial environments. It is compatible with the VMEbus interface and is easy to integrate into existing systems to ensure reliable and efficient performance.

VMIVME-2540 is an intelligent counter module produced by VMIC (now part of GE Intelligent Platforms). It is mainly used for high-performance data acquisition and counting in industrial automation systems. Here are some key features and application areas of VMIVME-2540 intelligent counter:

Main Features
High-performance counting:

Multi-channel support: The module supports multiple counting channels and can process counting data from multiple signal sources simultaneously.
High-speed counting: Designed to process high-speed pulse signals, it supports high sampling rates and high-speed counting tasks.
Flexible configuration:

Programmable function: Allows users to configure the parameters and functions of the counter according to specific application requirements.
Mode selection: Supports multiple counting modes, such as cumulative counting, differential counting, etc., to adapt to different application scenarios.
High precision:

Accurate counting: Provides high-precision counting function to ensure data accuracy and reliability.
Noise filtering: With noise filtering and anti-interference capabilities, it ensures stable operation in harsh environments.
Interface and Communication:

Standardized Interface: VME bus interface is used to facilitate integration with VME systems.
Data Transfer: Supports high-speed data transmission to ensure real-time data acquisition and processing.
Easy to Maintain and Debug:

Diagnostic Function: Provides built-in diagnostic and troubleshooting functions to help users quickly identify and solve problems.
Configuration Tool: Included software tool for configuring and managing counter modules, simplifying the operation process.
