GE 369-HI-0-M-0-0-0 motor management relay

GE 369-HI-0-M-0-0-0 motor management relay is an important industrial automation equipment component produced by General Electric (GE). This relay is mainly used to control the start, stop and direction of the motor to ensure the reliable and efficient operation of the motor.

Category:
G GE
Share

Related products




Product Introduction

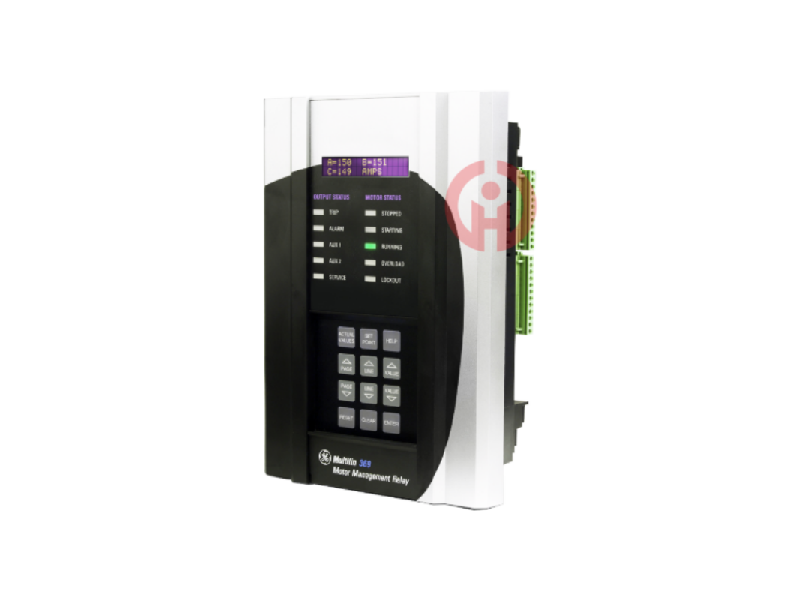

The 369-HI-0-M-0-0-E is a motor management relay manufactured by GE Multilin. Control power is 50-300 VDC / 40-265 VAC. There are no optional RTD inputs on this relay. This unit includes an optional metering package. There are no optional fiber optic ports. This relay provides protection and monitoring for three-phase motors and their associated systems. The 369 can "learn" individual motor parameters and adapt to individual applications. To improve the protection capabilities of the relay, the user can adjust motor inrush current, cool down rate and/or acceleration time. If you have any questions about this motor management relay or related series or manufacturers, please contact AX Control.

The Setpoint keys allow the user to navigate through the programmable parameter headers. The Actual Value keys allow the user to navigate through the measured parameter headers. The Page Up and Down keys can be used to scroll through the headers of the Actual Values ​​and Setpoints. The Line Up and Down keys can be used to scroll through the subheadings. The Value Up and Down keys allow the user to scroll through the variables in the Setpoint Programming mode. The Reset key allows the user to reset a tripped or latched alarm. The Enter key allows entry into a subgroup or storage of a changed Setpoint value. The Clear key exits a subgroup or returns a changed setpoint to its original value. The Help key can be pressed at any time for context-sensitive help messages.

You should always ensure that the 369-HI-0-M-0-0-E is properly grounded. You must connect the safety ground and filter ground (terminals 126 and 123, respectively) to the main ground bus to properly ground the device.

Frequently Asked Questions About the 369-HI-0-M-0-0-E
What are the control power specifications for the 369-LO-0-MFE-0-E Motor Management Relay?
The 369-LO-0-MFE-0-E has a low (LO) control power specification. This 369 Multilin Motor Management Relay has a VDC range of 20-60 and a VAC control power range of 20 to 48. This low specification is compared to the high (HI) option (50-300 VDC and 60 to 265 VAC control power).
What additional features does the 369-LO-0-MFE-0-E Multilin General Electric Digital Relay have?

Additional Features of the 369-LO-0-MFE-0-E Includes an optional metering package. This package provides three additional configurable analog outputs in addition to the single analog output of the base unit. This package also provides the unit with inputs for power and voltage components, capable of measuring various specifications such as V, kW, etc. The 369-
LO -0-MFE-0-E also includes an optional fiber optic port denoted by the (F) option. This fiber optic data link is suitable for harsher environments or RRTD connections. The fiber sizes are 50/125, 62.5/125, 100/140, and 200 microns. The type of LED emitter is an 820 nm LED with multimode characteristics.

What is the purpose of the optional fiber optic port of the 369-LO-0-MFE-0-E?

The purpose of the fiber optic port (option F) of the 369-LO-0-MFE-0-E is to allow remote module RTD to be connected to the motor management relay.

369-HI-0-M-0-0-0 module

High intelligence of field equipment

Traditional DCS uses a relatively centralized control station, which consists of a CPU unit and input/output units. The fieldbus control system distributes the control station functions of the DCS to the field control equipment, and the basic functions of automatic control such as data acquisition and compensation, PID operation and control, equipment self-checking and self-diagnosis can be realized only by fieldbus equipment. The operator of the system can remotely monitor in the control room, set or adjust the operating parameters of the field equipment, and locate and diagnose faults with the help of the self-diagnosis function of the field equipment.

High adaptability to the environment

The fieldbus is designed for industrial sites. It can transmit data using twisted pair, coaxial cable, optical cable, power line and wireless methods, and has strong anti-interference ability. The commonly used data transmission line is a cheap twisted pair, which allows the field equipment to use the data communication line for power supply, and can also meet the intrinsic safety and explosion-proof requirements.
