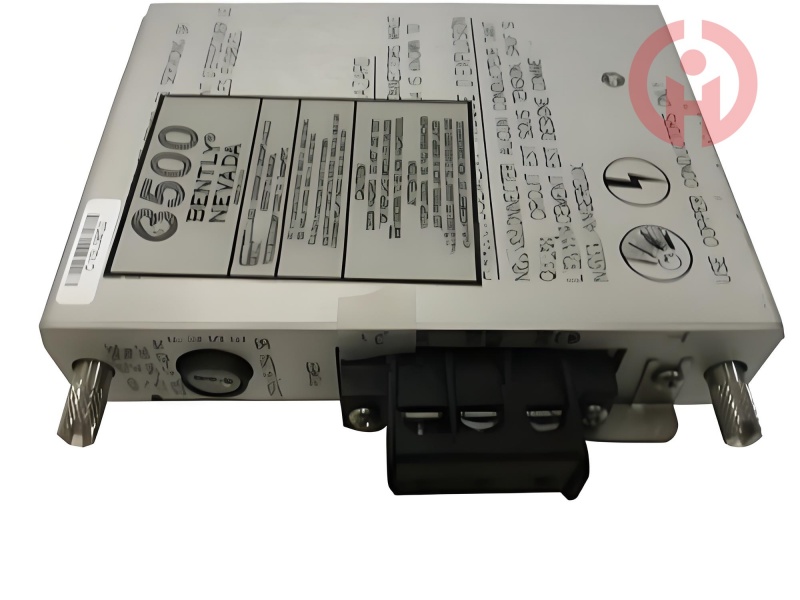

Bently Nevada3500/25 126648-02 Isolation key phase input/output module

Bently Nevada Isolation key phase input/output module

Origin: United States

Brand: Bently Nevada

The Bently Nevada 3500/25 Isolated Keyphasor Input/Output Module is a module designed specifically for Keyphasor signals that require isolation from other systems, suitable for magnetic pickup applications with external power added. This module mainly measures shaft speed and introduces a slightly higher phase shift compared to the non isolated version

Category:
Share

Related products




Product Introduction

Isolation Design: This module features an isolation design that is suitable for parallel connection of



multiple devices, ensuring electrical isolation of signals and preventing interference and damage.



Signal range: The input signal range is+5V to -11V, suitable for magnetic pickup application .



Power consumption: The typical value is 3.2 watts.



Output impedance: The maximum buffered output impedance is 504 Ω .



Environmental restrictions: The working temperature range is -30 ° C to+65 ° C (-22 ° F to+150 ° F).



Application scenarios



This module is suitable for industrial control systems that require electrical isolation,

especially in applications that require precise measurement of shaft speed and phase.

For example, it has wide applications in vibration monitoring, position monitoring, and

speed control of rotating machinery.



technical specifications



Input signal range:+5V to -11V.



Output impedance: The maximum buffered output impedance is 504 Ω 1.



Power consumption: The typical value is 3.2 watts.



Working temperature range: -30 ° C to+65 ° C (-22 ° F to+150 ° F)





Many products have not been listed yet. Please contact us for more products If there is any inconsistency between the product modeland the displayedpicture,

the model shall prevail. Please contact us for specific product pictures, and we will arrange for photos to be taken in the warehouse for confirmation
