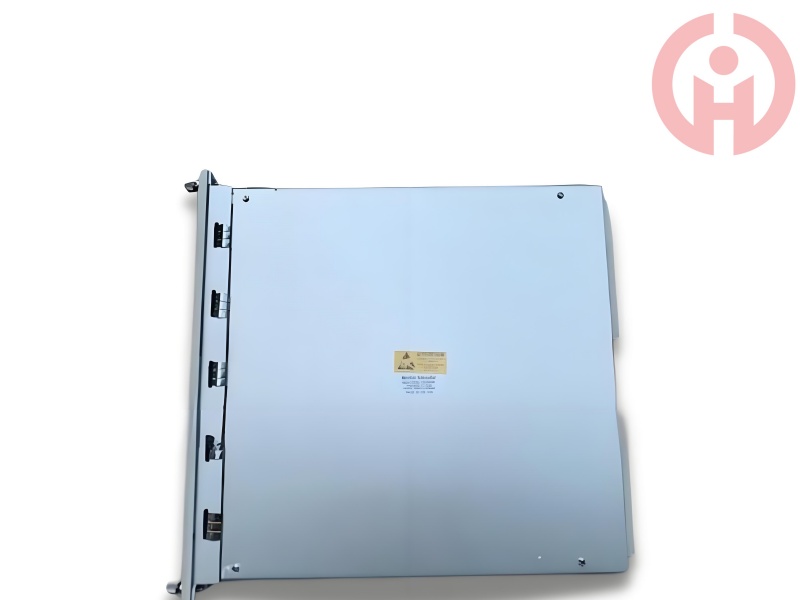

Bently Nevada 3500/94M - VGA DISPLAY MODULE

BENTLY VGA DISPLAY MODULE


Origin: United States


Brand: Bently Nevada


3500/94M is a VGA Display Module developed by Bently Nevada. It belongs to the 3500 series of components. Up to nine unique screens can be configured using the 3500 Rack Configuration Software. One bar graph panel displays all of the 1X-filtered vibration readings by default, while another displays proximity transducer gap values. Custom screens can be organized into machine train groups. On the custom screen, you may also organize system data into various pages.

Category:
Share

Related products




Product Introduction

Inputs



Maximum power usage is 4.6 watts.



High-capacity network- Monitor status, values, and data.



RS232 port (I/0)- Data from the touch controller



Outputs



LED (OK LED): Indicates that the module is working properly.



TX/RX LED: Indicates that other system components are communicating with each other.



(I/O) VGA port: The display receives analog red, green, blue, and sync signals.



Front Port



Characteristics



Operating Temperature range: -20 to 65 degrees Celsius



Storage Temperature range: -40 to 85 degrees Celsius



95 percent relative humidity, non-condensing



Dimensions: 241.3 mm height x 24.4 mm width x 241.8 mm depth



Weight: 730 kg



Frequently Asked Questions

What is 3500/94M?

It is a VGA Display Module developed by Bently Nevada.

What is the operating temperature of the component?

The operating Temperature should be between -20 degree celsius to 65 degree celsius.

Under what temperature should the product be stored?

For proper functioning, the module should be kept within a temperature range of -40 degree celsius to 85 degree celsius.

How much does the component weigh?

The module has a weight of about 0.73 kg.

What are the outputs of module?

The outputs are VGA port (I/O), OK LED, TX/RX LED, and Front Port.
