Bently Nevada 3500/05-01-03-00-00-00(RACK) - System Rack in Stock

BENTLY System Rack in Stock


Origin: United States



Brand: Bently Nevada

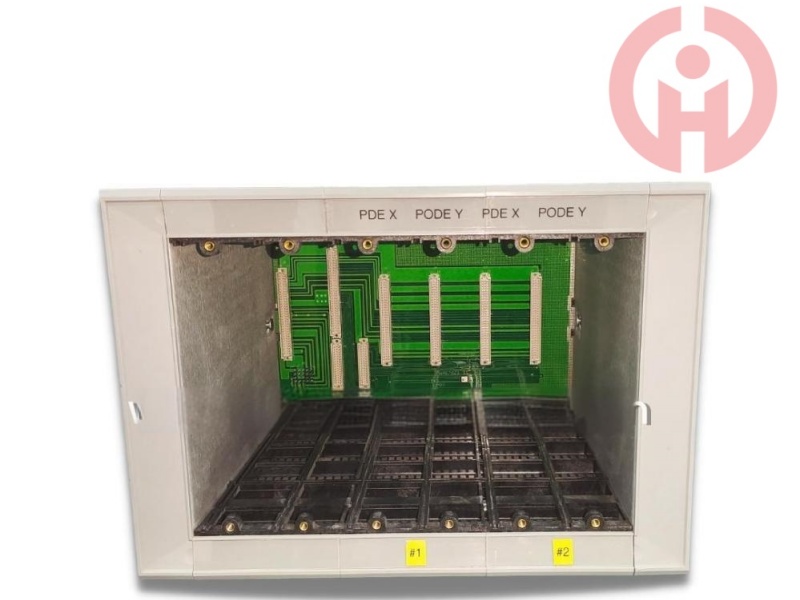

3500/05-01-03-00-00-00(RACK) is a system rack manufactured by Bently Nevada. Mount all 3500 monitor modules and power supplies using the 3500 System rack. The rack enables you to mount the power supplies required to distribute power to each module and accommodates 3500 modules close enough to one another to facilitate easy communication.




Category:
Share

Related products




Product Introduction

Characteristics



Holds the rack power supplies and all of the 3500 monitor modules.



Two sizes are produced: full-size rack and mini-rack



Produced in three different configurations: panel mount, rack mount, and bulkhead mount



Positions for 7 or 14 racks



3500/05-01-03-00-00-00(RACK) Features and Formats



Panel mount: This rack format attaches to panels' rectangular cutouts and fastens to the panel with clamps that come with the rack. I/O modules and wiring connections are accessible from the rack's back.

The 3500 Rack is mounted using this rack format on 19-inch EIA rails. I/O modules and wiring

connections are accessible from the rack's back.

When it's impossible to access the back of the rack, this rack format mounts the rack against a

wall or panel. I/O modules and wiring connections are reachable from the front of the rack. This

format is not available for the 3500/05 Mini-Rack.



The far-left rack positions must house the power supplies and the rack interface module.

Any combination of modules may be used in the remaining 14 rack positions (including the

mini-seven rack's rack positions).
